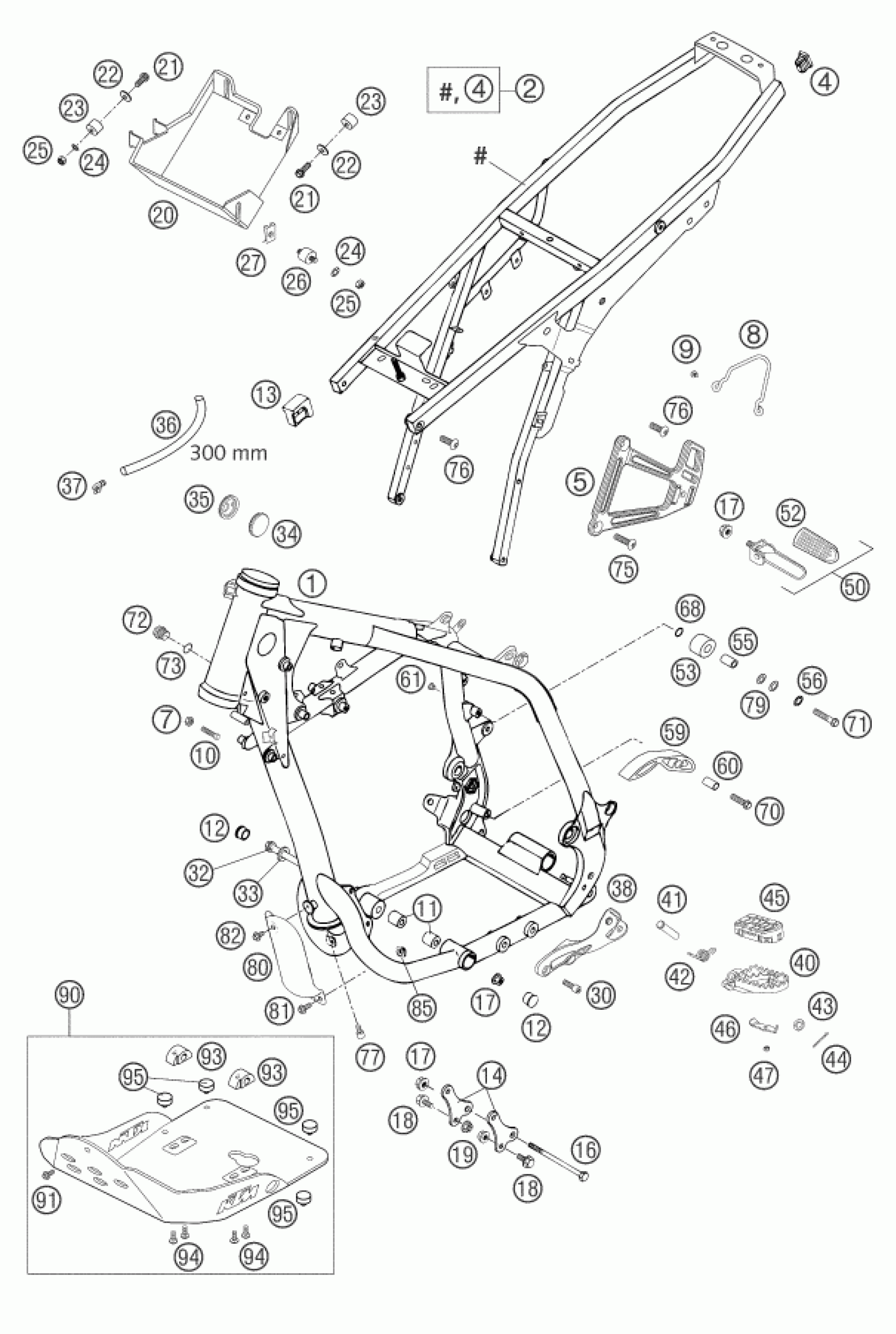

KTM 640 ADVENTURE-R 2004 FRAME Diagram

#

Description
Price

1

FRAME CPL. ADVENTURE ''L4''

5820300164490

Unavailable

2

SUBFRAME CPL. STEEL SILVER 00

5840300234490

$385.26

4

PLUG 12 X 17 MM

58303002090

$1.49

5

FOOTRESTBRACK. REAR L/S 04

5840304800090

$45.88

5

FOOTRESTBRACK. REAR R/S SILVER

5810300420090

$61.25

7

Hexagon nut DIN934 M8

0934080003

$2.05

8

THERMAL PROTECTION BOW 04

58403056000

$5.57

9

OVAL HEAD SCR. DIN7985-M 5X10

0985050103

$1.49

10

SPECIAL SCREW M8X26 WS=10

59001037000

$3.08

11

SPACER ROLLER 10,3X20X22

58003012000

$8.53

12

PVC CAP D=22MM

71001012100

$3.08

13

TANK SUPPORT '93

58307015000

$5.47

14

ENGINE SUPPORT AGW '94

58303055000

$10.46

16

ENGINE BRAC.SCREW M10X110 WS13

58403013000

$11.84

17

COLLAR NUT M10 WS=13

54630044000

$1.49

18

HH COLLAR SCREW M 8X16 WS=13

49109481052

$3.08

19

Self locking nut M8 10.9

54310086200

$3.08

20

BATTERY BOX 03

58403002370

$7.40

21

HH COLLAR SCREW M 6X10 WS=8

0015060103

$3.08

22

Washer DIN9021-A 6.4

0021060003

$2.05

23

silentbloc 20x15-M6x10-(1)

43205062100

$13.92

24

TOOTH LOCK WASH. DIN6797-A 6,4

0797060003

$1.49

25

Hex. nut DIN 934 M6

0934060003

$1.49

26

RUBBER GROMMET 20X15-M6X8-(2)

58403002010

$11.49

27

clip nut M6

54603048100

$4.11

30

AH SCREW DIN6912-M10X25,10.9

0912100250

$4.11

32

ENGINE BRAC.SCREW M10X160 WS13

58403014000

$18.22

33

WASHER 10,5 X 21 X 3

31004001100

$2.05

34

PLUG 37MM

54606004000

$2.05

35

PLUG 37MM PERFORATED 04

54606004100

$1.49

36

PVC-HOSE 7X10 PER METER

55007016001

$6.07

37

ANGLE PIECE '97

50303089000

$5.23

38

FOOTREST BRACKET L/S ALU

58403038000

$68.28

40

FOOT PEG L/S SILVER 02

59003040250

$43.66

40

FOOT PEG R/S SILVER 02

59003041250

$43.66

41

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

42

FOOTREST SPRING L/S & R/S

54603041000

$5.23

43

washer DIN 125 A 10.5

0125100003

$2.05

44

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

45

FOOTREST RUBBER FRONT L/S 03

60003040010

$22.15

45

FOOTREST RUBBER FRONT R/S 03

60003041010

$22.15

46

CLOSING PANEL FRONT L/S R/S 03

60003044010

$6.07

47

Self locking nut DIN 985 M5

0985050003

$2.05

50

FOOTREST REAR L/S CPL. '95

58303050044

$90.01

50

FOOT REST REAR R/S CPL.'95

58303150044

$88.44

52

FOOTREST RUBBER L/S&R/S DUKE95

58303051000

$15.70

53

CHAIN ROLL 12X29X22,5 '98

58403060000

$6.07

55

BUSH CHAIN ROLL 8X12X23 '98

58403060065

$3.08

56

TOOTHLOCK WASHER DIN6797-J 8,4

0797080003

$1.49

59

CHAIN SLIDING PIECE BELOW '97

51103053000

$9.15

60

BUSHING 8,2X10X20

51103053051

$4.11

61

PLASTIC CAP SFL10

54403135000

$2.05

68

LOCK WASHER 8MM

36003014000

$2.05

70

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

71

HH COLLAR SCREW M 8X45 WS=10

0015080453

$2.05

72

PLUG DIN0910-M16X1,5

0910160153

$4.87

73

CU-SEAL RING 16X22X2

0603162220

$2.05

75

AH SCREW 8X29 FL.HEAD 04

54510052200

$1.49

76

SPROCKET SCREW-AH M8X26 WS=6

54510052100

$3.08

77

AH SCREW DIN7984-M 6X10

0984060103

$1.49

79

washer DIN 125 A -8.4

0125080003

$1.49

80

COVER OIL FILTER '94

58303010000

$28.31

81

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

82

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

85

SNAP-NUT HOLDER M6 KP142

50235033300

$4.11

90

SKID PLATE LIMITED CPL. 97

58412099044

$103.22

91

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

93

ENGINE PROTECTOR BRACKET '97

58003012200

$20.47

94

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

95

RUBBER BUFFER

54308042000

$3.08
