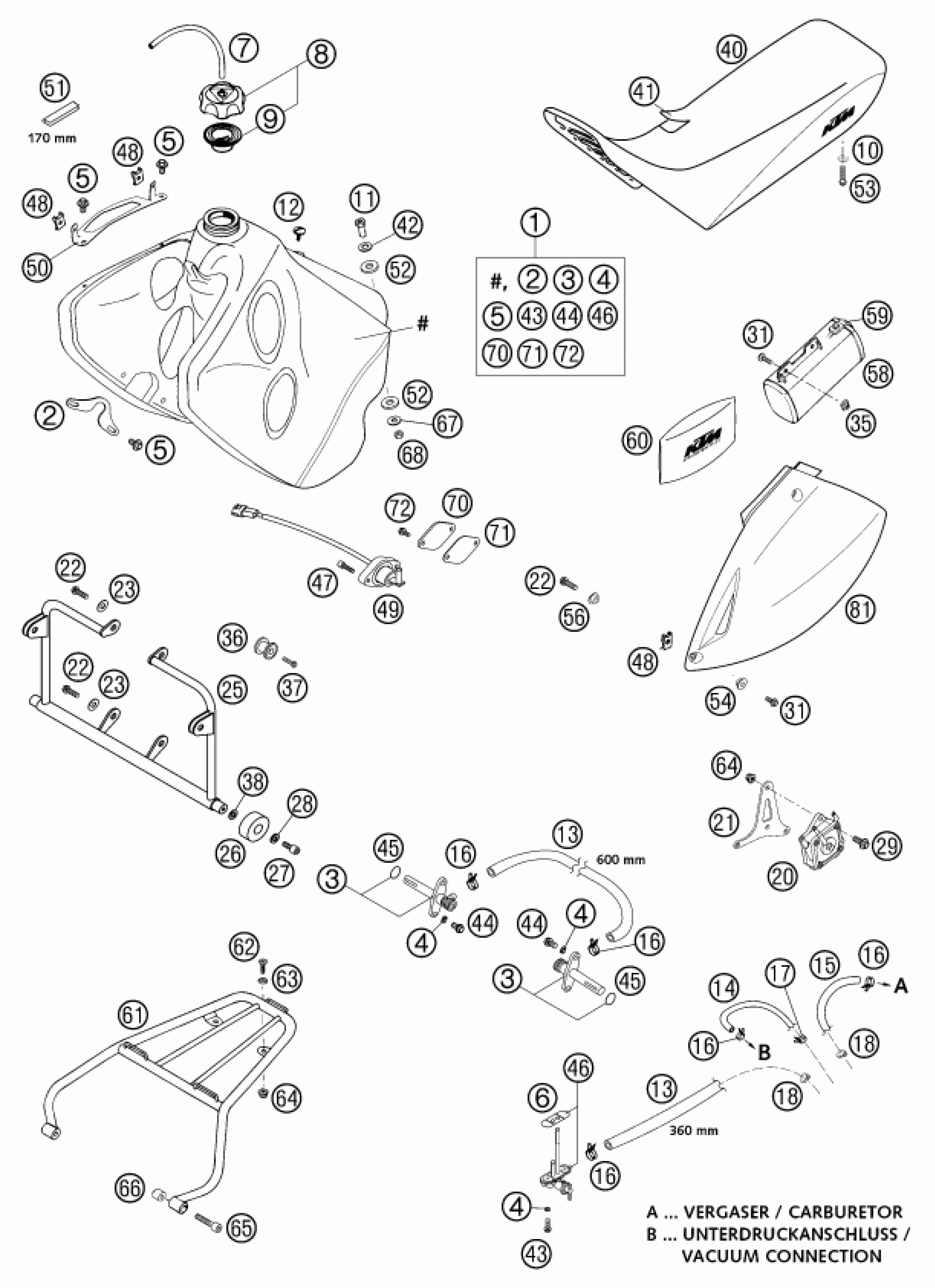

KTM 640 ADVENTURE-R 2002 TANK, SEAT Diagram

#

Description
Price

1

FUEL TANK KPL. 30L ADVENT. 02

5820701314490

$992.48

2

BRACKET FOR 30 LITER TANK

58507023000

$6.62

3

FUEL COCK CPL. SM. RALLYE'96

58507003000

$26.55

4

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

5

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

6

GASKET FUEL COCK MIKUNI

58307106100

$6.82

7

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

8

FILLER CAP CPL. WITH VALVE

59007008044

$24.58

9

GASKET FOR FILLER CAP HIGH

59007009000

$8.03

10

WASHER DIN0125-A 6,4

0125060003

$1.49

11

SPECIAL NUT M8

58307014000

$6.26

12

SCREW FOR SEAT M 6X13/8

58407011000

$4.11

13

HOSE ID 7,5 PER METER

54435024001

Unavailable

14

HOSE 6X10 PER METER

58205035001

Unavailable

15

HOSE OG.ECO 1TBSE 7X13MM

58507116100

Unavailable

16

YDNAC-CLAMP 10107 10MM

58007117000

$3.08

17

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.08

18

OETIKER HOSE CLAMP 13,3MM

58007117200

$3.08

20

FUEL PUMP MIKUNI DF52-601 01

58512087000

$136.97

21

BRACKET FOR FUEL PUMP ADV.

58212071100

Unavailable

22

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

23

Washer DIN9021-A 6.4

0021060003

$2.05

25

BRACKET 30LT TANK SILVER '97

5851209200090

$145.93

26

TANKROLL 13X36X16

50107015000

$4.39

27

AH SCREW DIN0912-M 6X16

0912060163

$1.49

28

WASHER DIN0125-A 6,4

0125060003

$1.49

29

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

31

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

35

SNAP-NUT HOLDER M6 KP142

50235033300

$4.11

36

TANK BUSHING CPL. 12 X 34 X 25

58307113250

$10.20

37

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

38

WASHER 6 X 12 X 3

12011016000

$1.49

40

SEAT ADVENTURE 2001

58207040400

$93.67

41

SEAT COVER SILVER ADVENTURE 01

58207040450

$35.00

42

WASHER 10,5 X 25 X 1,5

58307019000

$2.05

43

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

44

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

45

O-RING 11X1,8 NBR 70

55007006200

$2.05

46

FUEL COCK CPL.MIKUNI CK-69 '96

51107004000

$69.37

47

AH collar screw DIN 912 M5x16

0912050163

$1.49

48

clip nut M6

54603048100

$4.11

49

GAS-LEVEL SENSOR ADV. 2002

58207080000

$85.08

50

MASK BRACKET R/S ADV. 01

58211001161

$15.05

50

MASK BRACKET L/S ADV. 01

58211001160

$20.75

51

EDGE PROTECTOR PER METER

58312085100

Unavailable

52

INSOLATE WASHER 12X28X3

51005067100

$2.05

53

HH COLLAR SCREW M 6X35 WS=8

0015060353

$3.08

54

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

$1.96

56

BUSH FOR SPOILER 6X11X16X7,5

50308053000

$5.70

58

TOOL BOX CPL. '92

58012058000

$35.48

59

RUBBER FOR TOOL BOX '92

58012058050

$6.98

60

ORIGINAL EQUIPMENT TOOL KIT

58329099000

Unavailable

61

BAGGAGE CARRIER BLACK MIL LC4

5841201020030

$138.39

62

FLAT H.SCREW DIN7991-M6X20

0991060203

$2.05

63

WASHER 6MM

40006006000

$1.49

64

Self locking nut M6 - 10

56509064100

$2.05

65

AH SCREW DIN0912-M 6X35

0912060353

$2.05

66

BUSH FOR BAGGAGE CARRIER 2000

58412011100

$1.73

67

WASHER DIN9021-A 8,4

0021080003

$1.49

68

Hexagon nut DIN934 M8

0934080003

$2.05

70

COVER FOR GAS-LEVEL SENSOR

58207081000

Unavailable

71

GASKET FOR COVER

58207081050

Unavailable

72

HH COLLAR SCREW M 5X12 WS=8

0015050123

Unavailable

81

SIDE COVER L/S ORANGE LC4'99

5840804100004

$20.98

81

SIDE COVER R/S ORANGE LC4'99

5840804210004

$20.98
