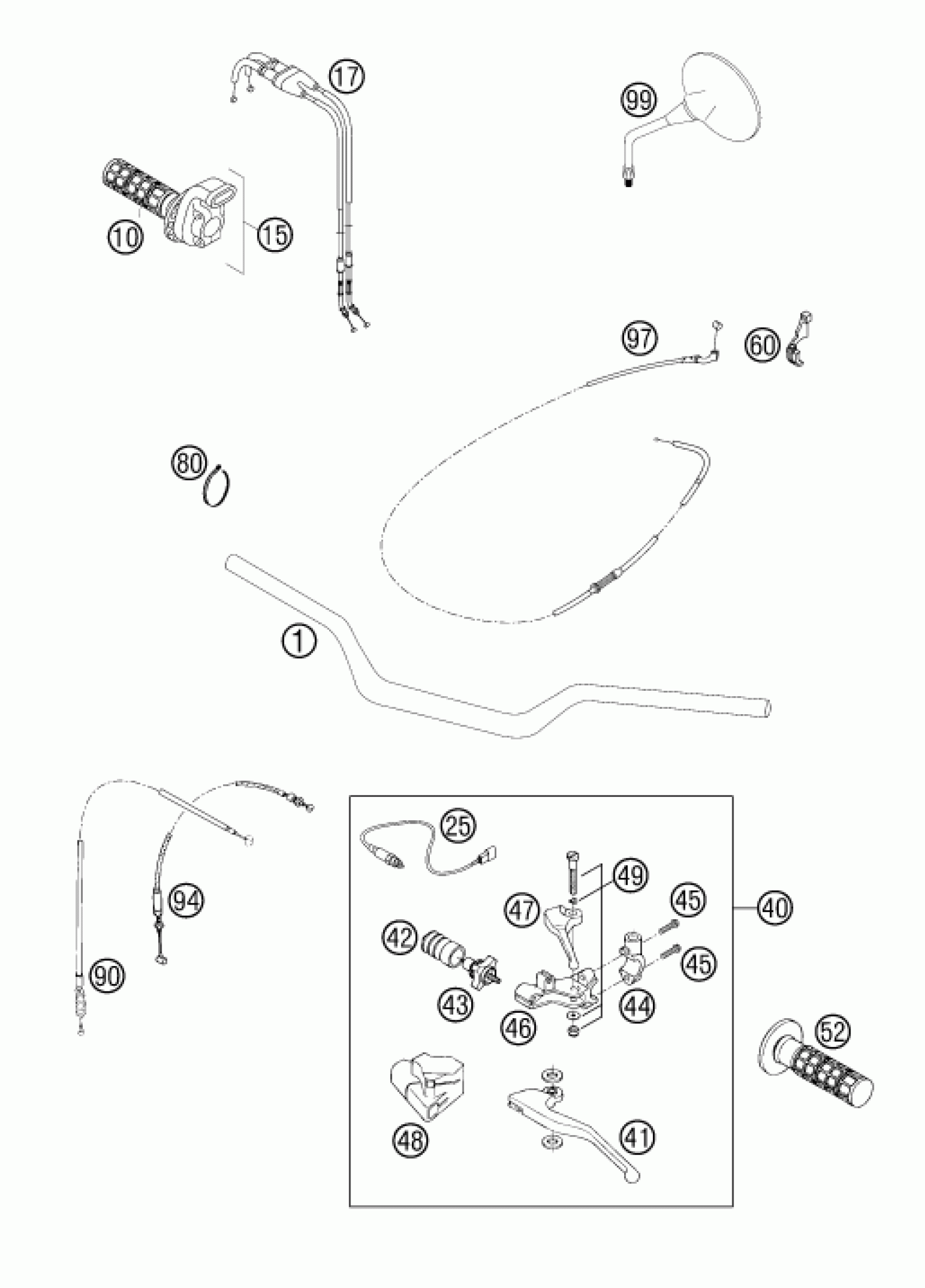

KTM 640 ADVENTURE-R 2002 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

HANDLEBAR ALU LC4, ADVENTURE02

58402001000

$138.10

10

TWIST GRIP COVER DOMINO

58302003000

$27.76

15

THROTTLE GRIP CPL. DUKE 2000

58702010000

$58.71

17

THROTT.CABLE ''OPEN-CLOSE'' 20

58402091600

$94.89

25

CLUTCH SWITCH '96

58411049000

$32.81

40

CLUTCH LEVER CPL. DOMINO '97

58402040100

Unavailable

41

CLUTCH LEVER LOOSE SILVER '97

58402042000

$40.10

42

CLUTCH LEVER BOOT '95

58302126000

$5.23

43

ADJUSTMENT SCREW CPL.M7

58302043000

$22.06

44

CLAMP MIRROW M10x1,25

58302044000

$13.36

45

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

46

JOINT (PIVOT) DOMINO '96

58402041000

$39.45

47

DECOMPRESSION LEVER LOOSE

58302047000

$12.05

48

PLASTIC COVER '

58402048000

Unavailable

49

LEVER SCREW CPL.

58302049000

$7.00

52

FIXED GRIP DOMINO '93

58302052000

$27.76

60

CHOKE LEVER LC4 2002

58402050000

$8.01

80

Cable tie 200/4.6mm black

44011076200

Unavailable

80

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

90

CLUTCH CABLE 4T L=1115MM '99

58402090000

$42.63

94

DECOMPR. CABLE L=693,5 LC4 '99

58302094200

$32.84

97

CHOKE CABLE F. MIKUNI LC4 02

58402095100

$27.76

99

Rear view mirror, left/right

58412040100

$65.63
