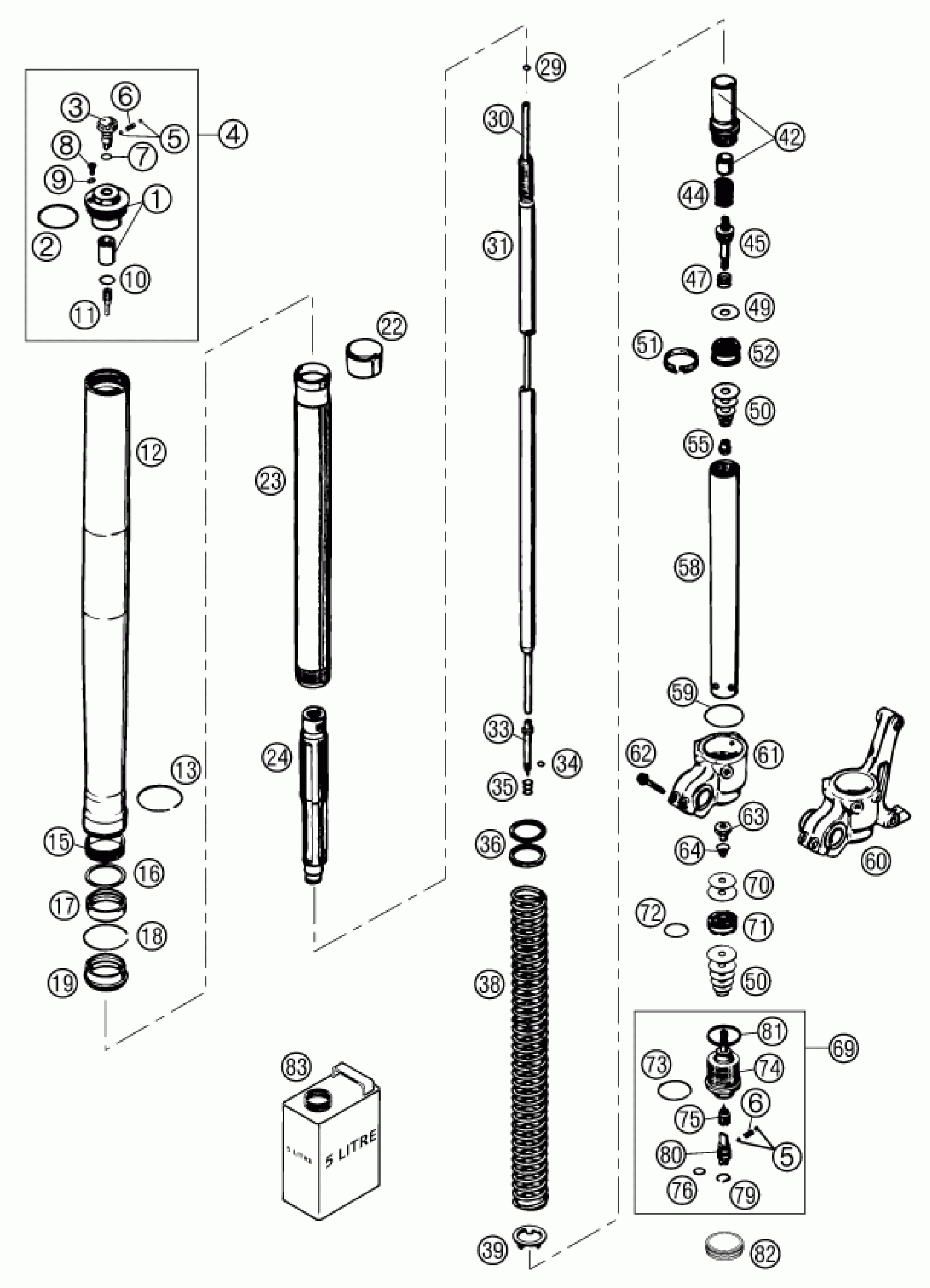

KTM 640 ADVENTURE-R 2002 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

1

SREW CAP+BUSH M51X1,5

48600020S

$39.06

2

O-ring 45x2 NBR70 siliconized

46810340

$1.49

3

Adjuster rebound

48600018

$4.11

4

SCREW CAP M51X1,5 CPL.

48600020S1

$98.26

5

Steel ball d3

40540603

$1.49

6

Spring (1,7) l7,9

48600028

$3.08

7

O-ring 6x1,5 NBR70

48600044

$1.49

8

Cross flat head screw M4x6

48600058

$1.82

9

O-ring 3,7x1,6 NBR70

48600009

$1.49

10

O-ring 12x1,5 NBR70

48600043

$2.05

11

Tube tap d4x25

48600019

$3.08

12

OUTER TUBE L=577mm D=54/60MM

48600001

Unavailable

13

Round-wire snap ring 48x2

48600016

$3.08

15

DU-BUSH 48 X 52 X 20

48600007

$24.33

16

Supportwasher 50x57,6x1,5

48600013

$3.08

17

OIL SEAL RING 48 X 57,7 X 9,

48600057

Unavailable

18

Snap ring SB58x1,5 acc drawing

48600070

$2.05

19

DUST STRIPPER D48

48600159

Unavailable

22

DU-BUSH 47 X 49 X 20

48600008

$12.05

23

INNER TUBE D=48MM L=590MM

48600002

Unavailable

24

HYDR.STOP L=200MM D=32,4 CPL.

48600011S

$49.44

29

O-ring 6,3x2,4 NBR70

48600175

Unavailable

30

ADJUSTMENT TUBE L=492MM

48600094

$15.01

31

PISTONR. D=14MM L=526MM M11X1

48600093

Unavailable

33

* REBOUND NEEDLE

48600150

Unavailable

34

O-ring 3x1,5 NBR70

48600046

$1.49

35

Spring (7,2) 4-23 needle

48600033

$5.23

36

Preload bush 42x26,5x2,5

48600036

Unavailable

36

Preload bush 26,5x42x5

48600037

Unavailable

36

Preload bush 26,5x42x1,5

48600053

$4.11

38

SPRING 4,4N/MM SET D=5,1MM

91410006S

$121.01

39

Spring retainer 33,5x43x3

48600021

$16.73

42

SCREW SLEEVE M29,3X1+BUSH

43570132S

$41.32

44

REBOUND SPRING D=14,6MM L=22MM

48600015

$28.51

45

TAB REBOUND

48600151

$18.42

47

Spring (11,7) 1,5-8 valve

35480377

$2.05

49

CHECK VALVE 8X24X0,1

48600062

$2.05

50

Shim 6x24x0,10 delta

48600116

Unavailable

50

Shim 6x14x0,10

40540401

Unavailable

50

Shim 6x16x0,10

40540402

Unavailable

50

Shim 6x18x0,10

40540403

Unavailable

50

Shim 6x11x0,20

40541402

Unavailable

50

SHIM 6X14X0,15

40540405

Unavailable

50

SHIM 6X16X0,15

40540406

Unavailable

50

SHIM 6X16X0,25

40540414

Unavailable

50

Shim 6x10x0,30

40540447

Unavailable

50

Shim 6x24x0,10

48600063

Unavailable

50

Shim 6x22x0,10

48600064

Unavailable

50

Shim 6x20x0,10

48600065

Unavailable

50

SHIM 6X18X0,25

40540415

Unavailable

51

Pistonring 26x28x5

48600060

$5.23

52

Piston 6,05x27,65x12 rebound

48600042

$11.78

55

Nut M6x0,5 h6,5 WAF10 rebound

40540486

$4.11

58

Tube 29.3X1X385 ALU

48600140

$82.49

59

O-ring 46x2 NBR70 siliconized

48600048

$3.08

60

AXLE CLAMP L/S USD48 ADV. 02

48600184

Unavailable

61

AXLE CLAMP R/S USD 48 2002

48600005

$204.94

62

HH COLLAR SCREW M 8X30

50600061

$3.08

63

CHECK VALVE NUT M6X0,5

40541241

$6.44

64

Spring (8,5) l6,5 valve

40541278

Unavailable

69

TAP COMPRESSION CPL.

48600152S

$37.67

70

Shim 8x24x0,40

48600061

$2.05

71

Piston 6x27,8x9 compression

48600047

$9.81

72

O-ring 21x2 NBR70

46811499

$1.49

73

O-ring 24x2 NBR70

35480320

$1.49

74

TAP COMPRESSION

48600152

$37.67

75

NEEDLE COMPRESSION M10X1

48600153

$5.32

76

O-ring 8x2 NBR70

48600049

$1.49

79

Round-wire snap ring 12x1 DIN7

48600051

$3.08

80

Adjustment screw slot compress

48600034

$7.35

81

Copper disc 29,5x33,5x1

48600004

$4.11

82

Rubber cap 35x10 NBR80

48600141

$4.11

83

FORKOIL REZ 71 SAE 5

40540882

Unavailable
