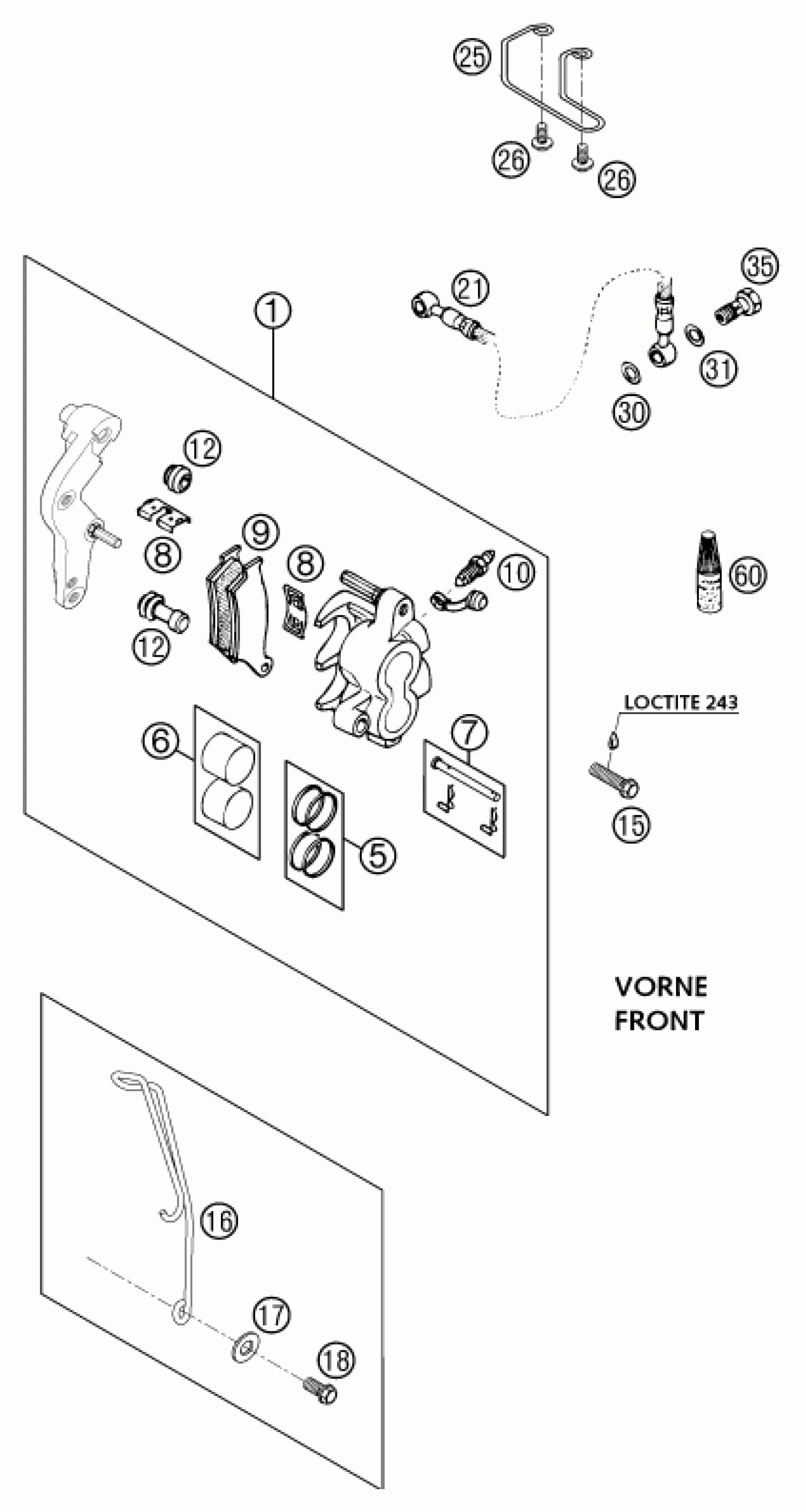

KTM 640 ADVENTURE-R 2002 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

BRAKECAL.FRONT CPL. 320MM 2000

58413015244

Unavailable

5

REPAIR KIT 28MM

54613205000

Unavailable

6

REPAIR KIT PISTON 28MM

54613206000

Unavailable

7

BOLT CPL. 6X56

54613210100

Unavailable

8

RETAINING PLATE SET BREMBO

54613212000

Unavailable

9

BRAKE P.SET FR. TEXTART4069

58413030000

Unavailable

9

BRKP.SET FR.TOSHIBATT2701HHB

50313030100

Unavailable

10

BLEEDER SCREW M10X1

54513214000

Unavailable

12

CUP SET SHORT

54613218000

Unavailable

15

HH COLLAR SCREW M 8X35 WS=10

0015080353

Unavailable

16

BRAKE HOSE GUIDE ADV. 2002

58213012050

Unavailable

17

washer DIN 125 A -8.4

0125080003

Unavailable

18

HH COLLAR SCREW M 8X16 WS=10

0015080163

Unavailable

21

BRAKEHO. FRONT 1300MM 2000

59013011000

Unavailable

25

BRAKE HOSE GUIDE 2001

58213010150

Unavailable

26

HH COLLAR SCREW M 6X10 WS=8

0015060103

Unavailable

30

CU-SEAL RING DIN7603-10X16X1

42013226000

Unavailable

31

CU-SEAL RING DIN7603-10X16X1,5

42013026000

Unavailable

35

HOLLOW SCREW M10X1X19

50213025000

Unavailable

60

LOCTITE 243 BLUE 5 ML

6899785

Unavailable
