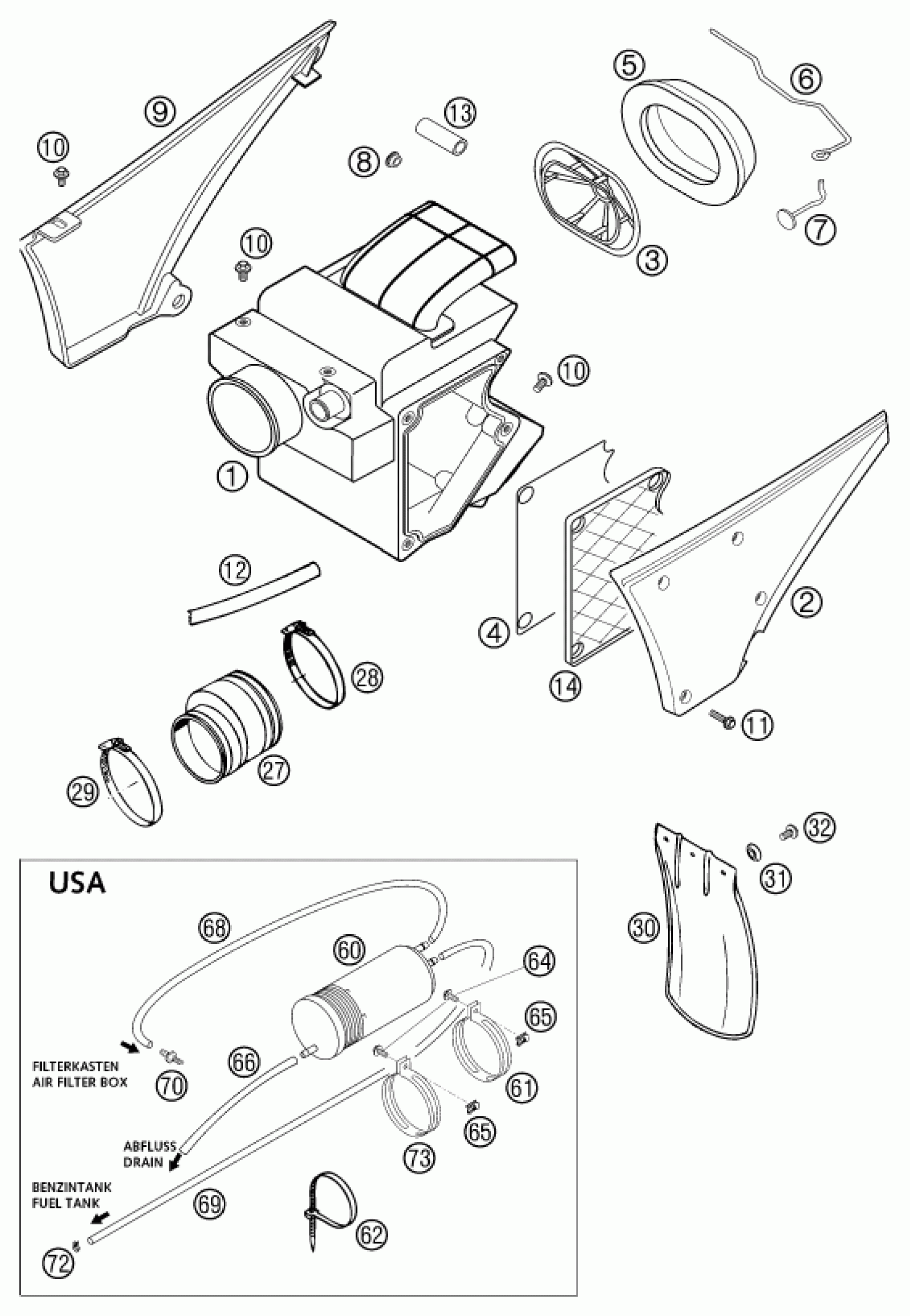

KTM 640 ADVENTURE-R 2002 AIR FILTER Diagram

#

Description
Price

1

FILTER BOX

58406001100

Unavailable

2

FILTER BOX COVER L/S LC4'98

58406003100

Unavailable

3

FILTER CARRIER '97

58406016000

$13.64

4

GASKET FILTER BOX COVER LC4'98

58406090100

$10.37

5

AIR FILTER

58406015100

$31.27

6

HOLDING HANGER FOR FILTER '98

58406017100

$15.43

7

HOOK F.HOLDING HANG.FILTER '97

58406017050

$7.38

8

PLUG

36111021000

$1.49

9

FILTER BOX COVER R/S LC4'98

58406004000

$20.07

10

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

11

HH COLLAR SCREW M 5X20 WS=8

0015050203

$2.05

12

HOSE 10X14 PER METER

57005020001

Unavailable

13

HOSE 10X14 PER METER

57005020001

Unavailable

14

CARRIER FILTER BOX GASKET '98

58406003150

$4.97

27

AIR FILTER BOOT 400/640 LC4'97

58406026000

$17.94

28

HOSE CLAMP 60-80MM

55006028000

$4.11

29

HOSE CLAMP 50-70MM

51006027000

$6.07

30

SPLASH PROTECT.FOR FILTER BOX

54606010000

$18.25

31

BUCKET

72210079000

$3.00

32

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

60

EVAP.CANISTER FILTER TYPE AK47

58715001000

$80.96

61

CLAMP FOR EVAP CANISTER

58307083100

$9.04

62

Cable tie 200/4.6mm black

44011076200

Unavailable

64

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

65

clip nut M6

54603048100

$4.11

66

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

68

PVC-HOSE 5 X 8 MM

31007007001

Unavailable

69

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

70

HOSE CONNECTION FOR OILTANK

52338061050

$22.13

72

CLAMP 008.7-505R

58407017000

$1.49

73

CLAMP FOR FILTER KNECHT

58307083000

Unavailable
