Description

Price

1

MONOSHOCK WP LC4 2001

0118V710

Unavailable

3

SPRING WP 66-260

58304011066

Unavailable

3

SPRING WP 70-260

58304011070

Unavailable

7

* COUNTER NUT

54204109000

Unavailable

8

ADJUSTING NUT

54204009000

$78.09

10

RING FOR SHOCK ABSORBER

58304017000

Unavailable

11

O-RING 32 X 8

58304090000

Unavailable

12

% O-RING CARRIER 14MM HIGH

58304018000

$61.79

14

SPECIAL SCREW M10X47 WS=17

56503086000

$4.11

15

SPECIAL SCREW M10X55 WS=17

56503093000

$4.11

16

washer DIN 125 A 10.5

0125100003

$2.05

17

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

20

BUSHING CPL. D=24MM B=24MM

54204020100

Unavailable

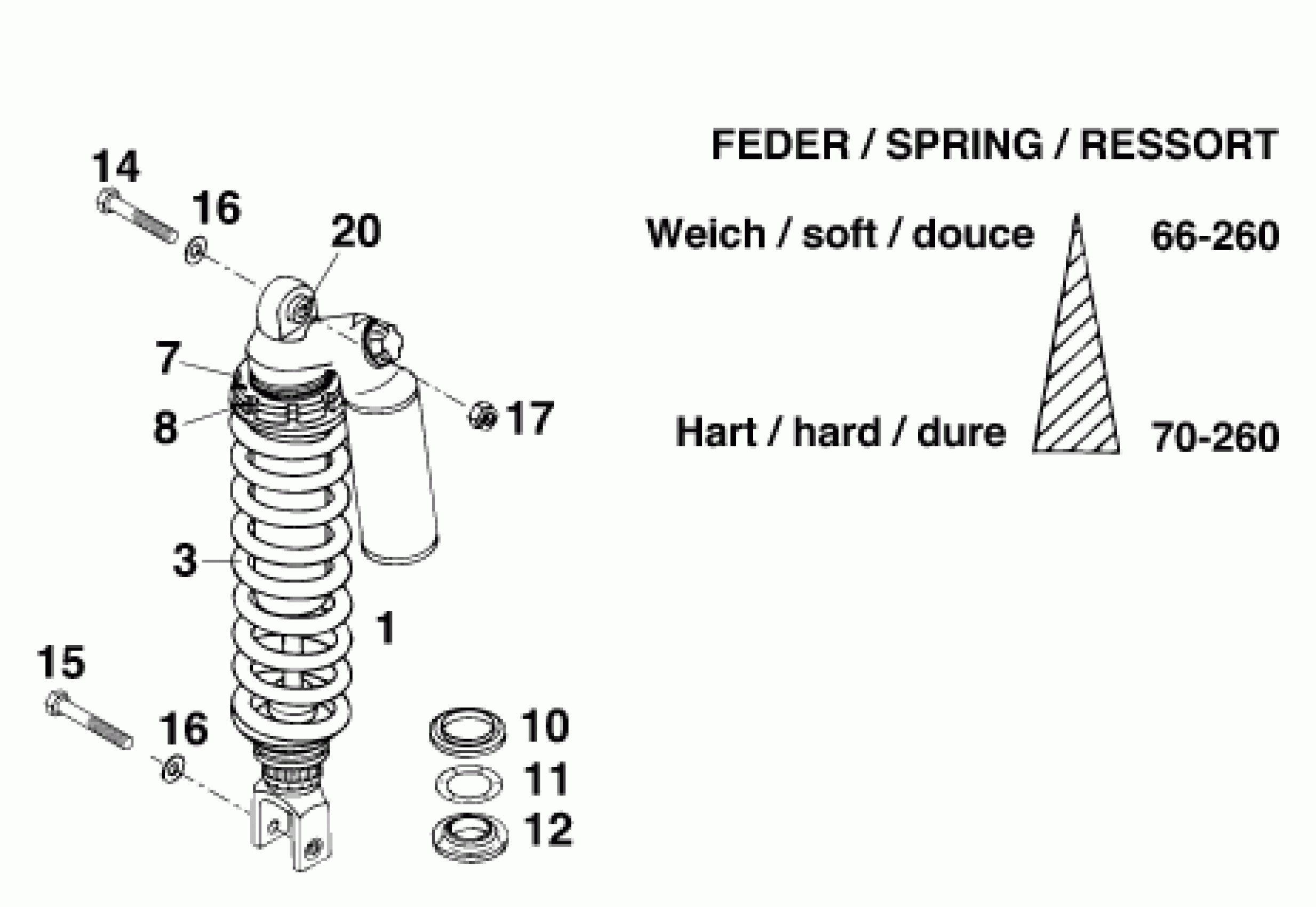

KTM 640 ADVENTURE-R 2001 SHOCK ABSORBER Diagram

MONOSHOCK WP LC4 2001

SPRING WP 66-260

SPRING WP 70-260

* COUNTER NUT

ADJUSTING NUT

RING FOR SHOCK ABSORBER

O-RING 32 X 8

% O-RING CARRIER 14MM HIGH

SPECIAL SCREW M10X47 WS=17

SPECIAL SCREW M10X55 WS=17

washer DIN 125 A 10.5

SELF LOCKING NUT M10 CU WS=14

BUSHING CPL. D=24MM B=24MM
