Partiron

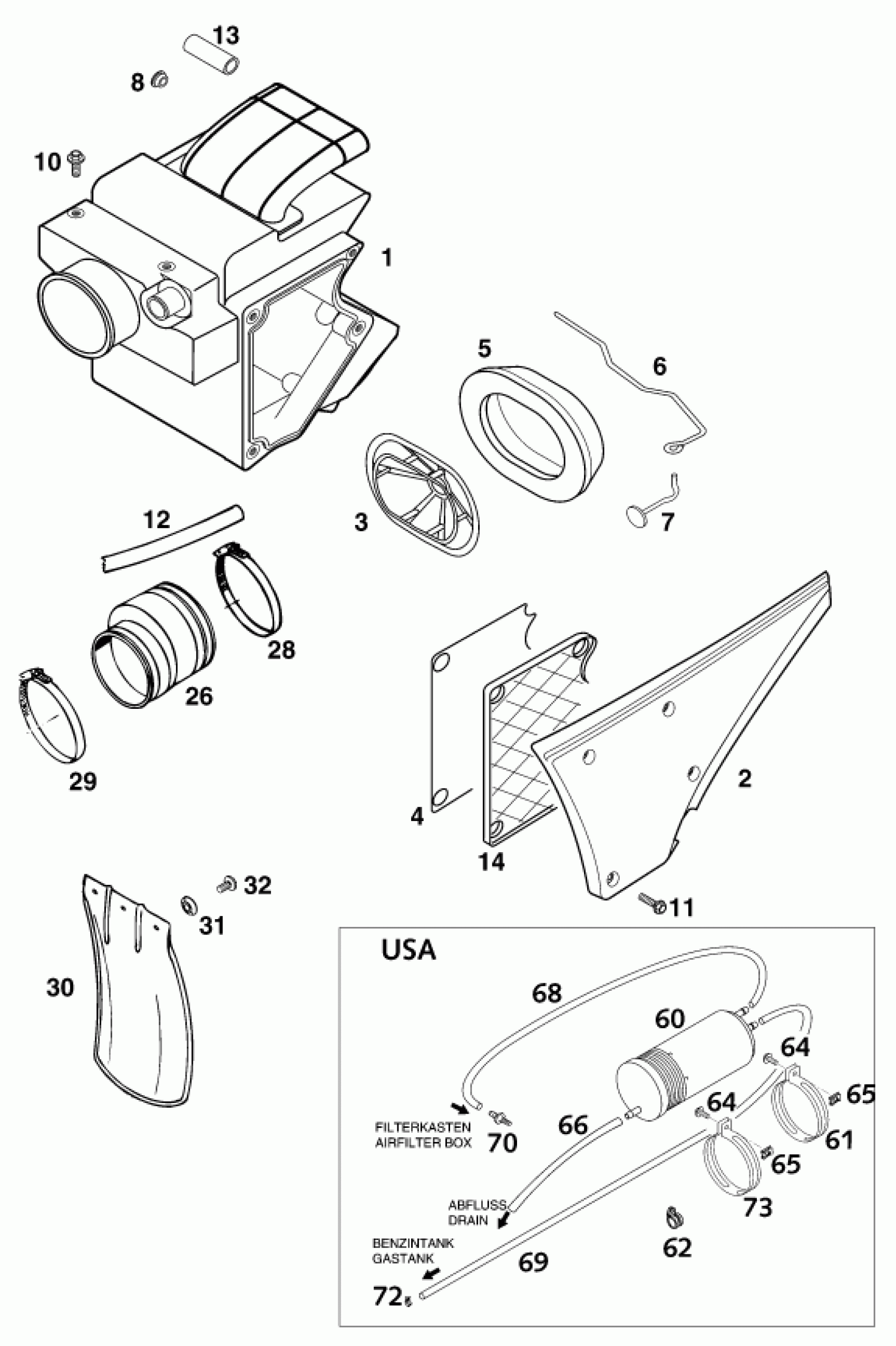

KTM 640 ADVENTURE-R 2001 AIR FILTER Diagram

#

Description
Price

0

FILTER BOX COVER R/S LC4'98

58406004000

Unavailable

1

FILTER BOX

58406001100

Unavailable

2

FILTER BOX COVER L/S LC4'98

58406003100

Unavailable

3

FILTER CARRIER '97

58406016000

$13.64

4

GASKET FILTER BOX COVER LC4'98

58406090100

$10.37

5

AIR FILTER

58406015100

$31.27

6

HOLDING HANGER FOR FILTER '98

58406017100

Unavailable

7

HOOK F.HOLDING HANG.FILTER '97

58406017050

Unavailable

8

PLUG

36111021000

Unavailable

10

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

11

HH COLLAR SCREW M 5X20 WS=8

0015050203

Unavailable

13

HOSE 10X14 PER METER

57005020001

Unavailable

14

CARRIER FILTER BOX GASKET '98

58406003150

Unavailable

26

AIR FILTER BOOT 400/640 LC4'97

58406026000

$17.94

28

HOSE CLAMP 60-80MM

55006028000

$4.24

29

HOSE CLAMP 50-70MM

51006027000

$6.07

30

SPLASH PROTECT.FOR FILTER BOX

54606010000

Unavailable

31

BUCKET

72210079000

$3.00

32

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable
