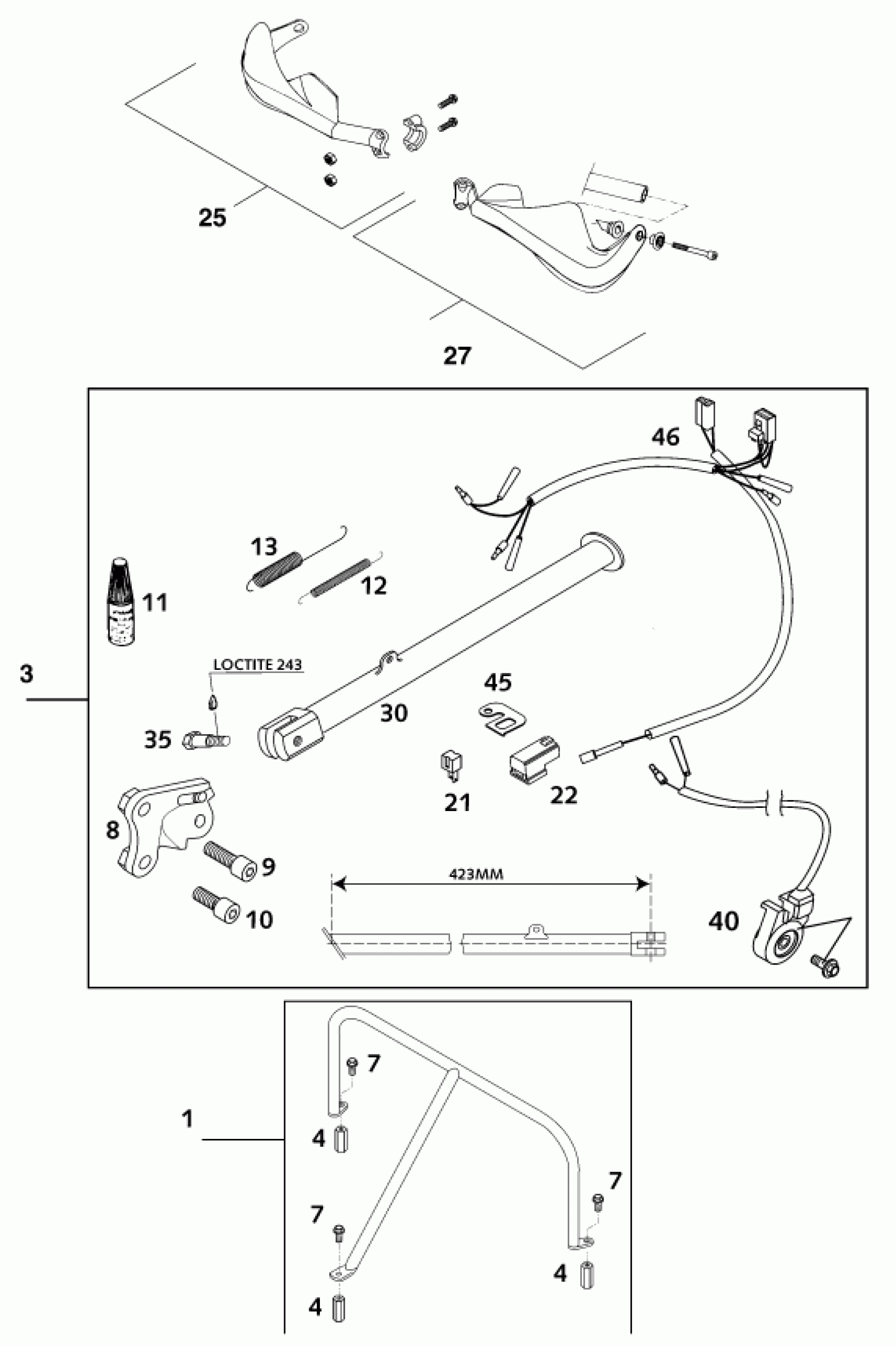

KTM 640 ADVENTURE-R 2001 ACCESSORIES Diagram

#

Description
Price

1

ROADBOOK CARRIER CPL. ADV. 01

58212090144

Unavailable

3

5840302364490

Unavailable

4

SPACER NUT F. ROADBOOK CAR

58212090150

Unavailable

7

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

8

S.STAND BRACKET M10 LC4/S.M'99

58403026500

Unavailable

9

AH SCREW DIN0912-M10X30

0912100303

Unavailable

10

AH SCREW DIN0912-M10X25 10.9

0912100256

Unavailable

11

LOCTITE 243 BLUE 5 ML

6899785

Unavailable

12

SIDE STAND SPRING D=7,7MM '97

58403030000

Unavailable

13

SIDESTAND SPRING LONG

51003021000

Unavailable

21

DIODE S3H-15 97

58411096100

Unavailable

22

STARTER RELAY '96

58411057000

Unavailable

25

% HAND GUARD L/S+R/S CPL. BLAC

6000207900030

Unavailable

29

Cable tie 200/4.6mm black

44011076200

Unavailable

30

*SIDE STAND SILVER M10 LC42000

5840302360090

Unavailable

35

SCREW FOR SIDE STAND M10X26,7

58203027200

Unavailable

40

SIDE STAND SWITCH CPL. '97

58411045000

Unavailable

45

RETAINING PLATE

58311031000

Unavailable

46

* SIDE STAND CABLE 400/640 '99

58411046000

Unavailable
