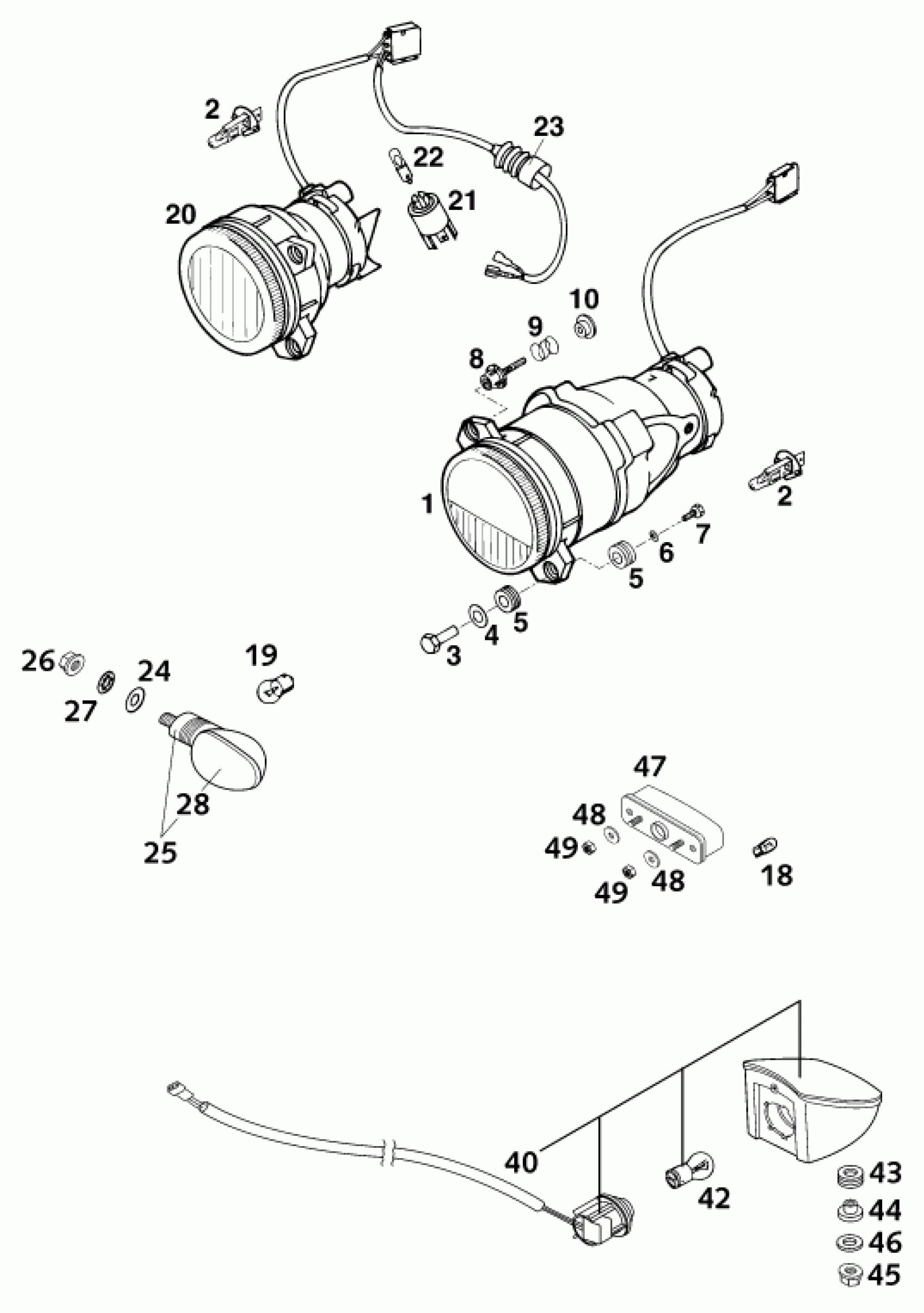

KTM 640 ADVENTURE-R 2001 LIGHTING SYSTEM Diagram

#

Description
Price

0

FLASHER CPL.FRONT R/S REAR L/S

5841402600030

Unavailable

1

HEADLIGHT LOW BEAM DUKE'94

58311010000

Unavailable

2

BULB H1 12V 55W WHITE

58311038000

Unavailable

3

SPECIAL NUT M5X25 WS=10

58311044000

Unavailable

4

washer DIN 125 A -8.4

0125080003

Unavailable

5

rubber grommet D=8mm open

31008060000

Unavailable

6

TOOTH LOCK WASH. DIN6797-J 5,3

0797050003

Unavailable

7

HH SCREW DIN0933-M 5X12

0933050123

Unavailable

8

ADJUSTING SCREW M5X30 CPL.

58311011000

Unavailable

9

SPRING L=16MM

12003007052

Unavailable

10

COLLAR BUSHING 5 X 10 X 6 ALU

54603073000

Unavailable

18

BULB 12V 5W (W2,1X9,5D)

49011435000

Unavailable

19

BULB 12V 10W (BA15S)

44111015100

Unavailable

20

HEADLIGHT HIGHBEAM DUKE '94

58311110000

Unavailable

21

BULB SOCKET BA9S

58311039000

Unavailable

22

BULB 12V 2W BA9S

44111005100

Unavailable

23

CLUTCH LEVER BOOT '95

58302126000

Unavailable

24

washer DIN 125 A 10.5

0125100003

Unavailable

25

FLASHER CPL.FRONT L/S REAR R/S

5841402500030

Unavailable

26

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

27

LOCK WASHER DIN6797-J10,5 ZI

0797100003

Unavailable

40

REAR LIGHT CPL. LC4 2001

58414040100

Unavailable

42

BULB 12V 21/5W (BAY15S)REINFO.

58414042000

Unavailable

43

RUBBER SLEEVE D=12MM

41001052000

Unavailable

44

REAR LIGHT BUSHING

58714048000

Unavailable

45

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

46

Washer DIN9021-A 6.4

0021060003

Unavailable

47

LICENSE-PLATE ILLUMINATION '98

58414047000

Unavailable

48

washer DIN 9021 A - 5.3

0021050003

Unavailable

49

Self locking nut DIN 985 M5

0985050003

Unavailable
