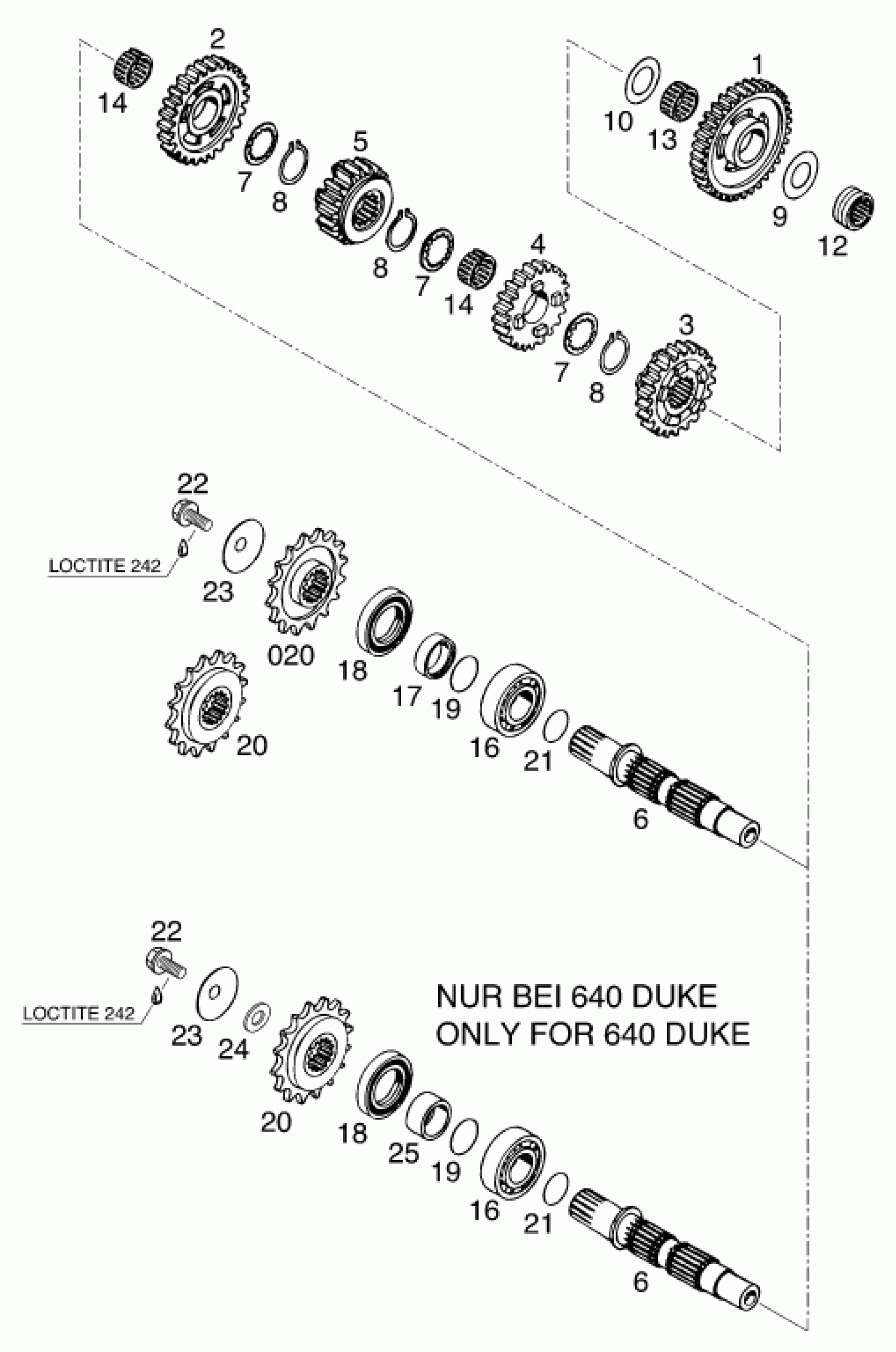

KTM 640 ADVENTURE-R 2000 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

1

IDLER GEAR 1.G 35-T (1M3)

56533005300

$152.63

2

IDLER GEAR 2.G 24-T ''10''

58333113010

$159.32

3

SLIDING GEAR 3.G 21-T ''03''

58333007003

$118.05

4

IDLER GEAR 4.G 19-T ''05''

58333009005

$111.50

5

SLIDING GEAR 5.G 18-T ''09''

58333011009

$130.87

6

COUNTERSHAFT

58333003000

Unavailable

7

STOP DISK 22,7 X 32 X 1,5

56533016300

$5.98

8

LOCK RING DIN0471-25X1,64SD

52033096000

$5.23

9

STOP DISK 20,2 X 35 X 1

56533015000

Unavailable

10

STOP DISK 22,2 X 35 X 1,5

56533018300

$3.31

12

NEEDLE BEARING RNA 4902 KSE

56533093000

$21.96

13

NEEDLE BEARING K22X26X13H

56533098000

$11.96

14

NEEDLE BEAR. K22X26X13 DIVID

56533099000

$9.15

16

cylindrical roller bearing NJ2

49030023000

$74.42

17

SPACER BUSHING

58033017000

$28.83

18

Radial shaft seal 32X47X7 BSL

0760324771

$13.36

19

O-RING 25,00X2,00 SILICONE

0770250021

$3.08

20

ENGINE SPROCKET 14 T

58033029014

Unavailable

20

ENGINE SPROCKET 15 T

58033029015

Unavailable

20

ENGINE SPROCKET 16 T

58033029016

Unavailable

20

ENGINE SPROCKET 17 T

58033029017

Unavailable

20

Engine sprocket 15-t, damped

58033029115

Unavailable

20

Sprocket 16-t, damped

58033029116

Unavailable

20

ENGINE SPROCKET 17 T DAMPED

58033029117

Unavailable

21

O-RING 22,00X1,00 NBR 70

0770220010

$2.05

22

HH COLLAR SCREW M10X20 WS=17

49032011000

$5.88

23

SPRING WASHER 10,5 X 40 X 1,

58333034000

Unavailable
