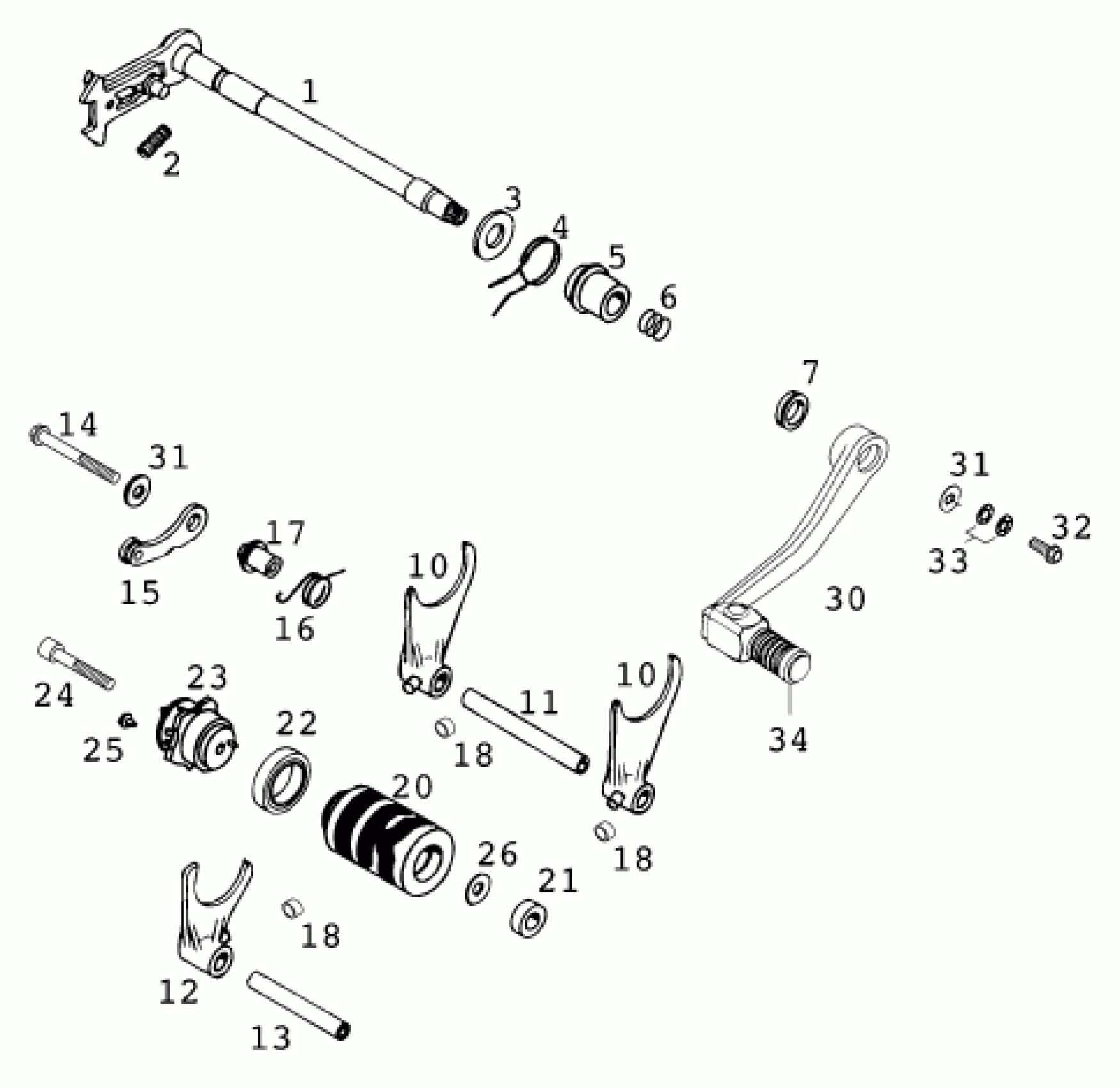

KTM 640 ADVENTURE-R 2000 SHIFTING MECHANISM Diagram

#

Description
Price

1

SHIFT SHAFT CPL. LC4'94

58334005044

$94.39

2

TENSIONING SPRING 0,8MM

56534013100

$1.49

3

STEEL WASHER 14 X 28 X 2

58034010000

$1.49

4

RETURN SPRING

58034014000

$3.60

5

SPRING SLEEVE

58334020000

$9.85

6

O-RING 12,50X2,00 NBR 70

0770125020

$2.05

7

V-SEAL RING V-14-A

58033027000

$5.23

10

SHIFT FORK 1ST/4TH+2ND GEAR'98

58034002300

$94.81

11

SHIFT RAIL 1ST/4TH + 2ND GEAR

58034004000

$8.37

12

SHIFT FORK 3RD/5TH GEAR '98

58034001300

$91.83

13

SHIFT RAIL 3RD/5TH GEAR

58034003000

$6.30

14

HH COLLAR SCREW M 6X65 WS=8

0015060653

$2.05

15

LOCKING LEVER CPL. '94

58334024044

$23.65

16

SPRING

58034023500

$2.18

17

SPRING SLEEVE

58334017000

$7.21

18

SHIFTING ROLLER 6X8X5,2

50334018100

$4.11

20

SHIFT ROLLER STEEL

58334012000

$115.07

21

Grooved ball bearing 608 2RS C

0625006087

$21.40

22

BALL BEARING 61805 C3

0625618050

$43.94

23

SHIFT LOCATING DRUM CPL. '98

58434015044

$72.45

24

AH SCREW DIN0912-M 6X40 A2

0912060404

$2.05

25

SHIFT BUTTON

58034016500

$3.15

26

WASHER 6,2X22X1,ST30,W.GALV.

51006097000

$1.49

30

SHIFT LEVER CPL. LC4,COMP. '98

58434031144

$65.50

31

WASHER 6,2X18X2

50232050000

$5.23

32

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

33

Pair of washers M6 NORDLOCK

50233041000

$4.11

34

RUBBER

36205018000

$5.23
