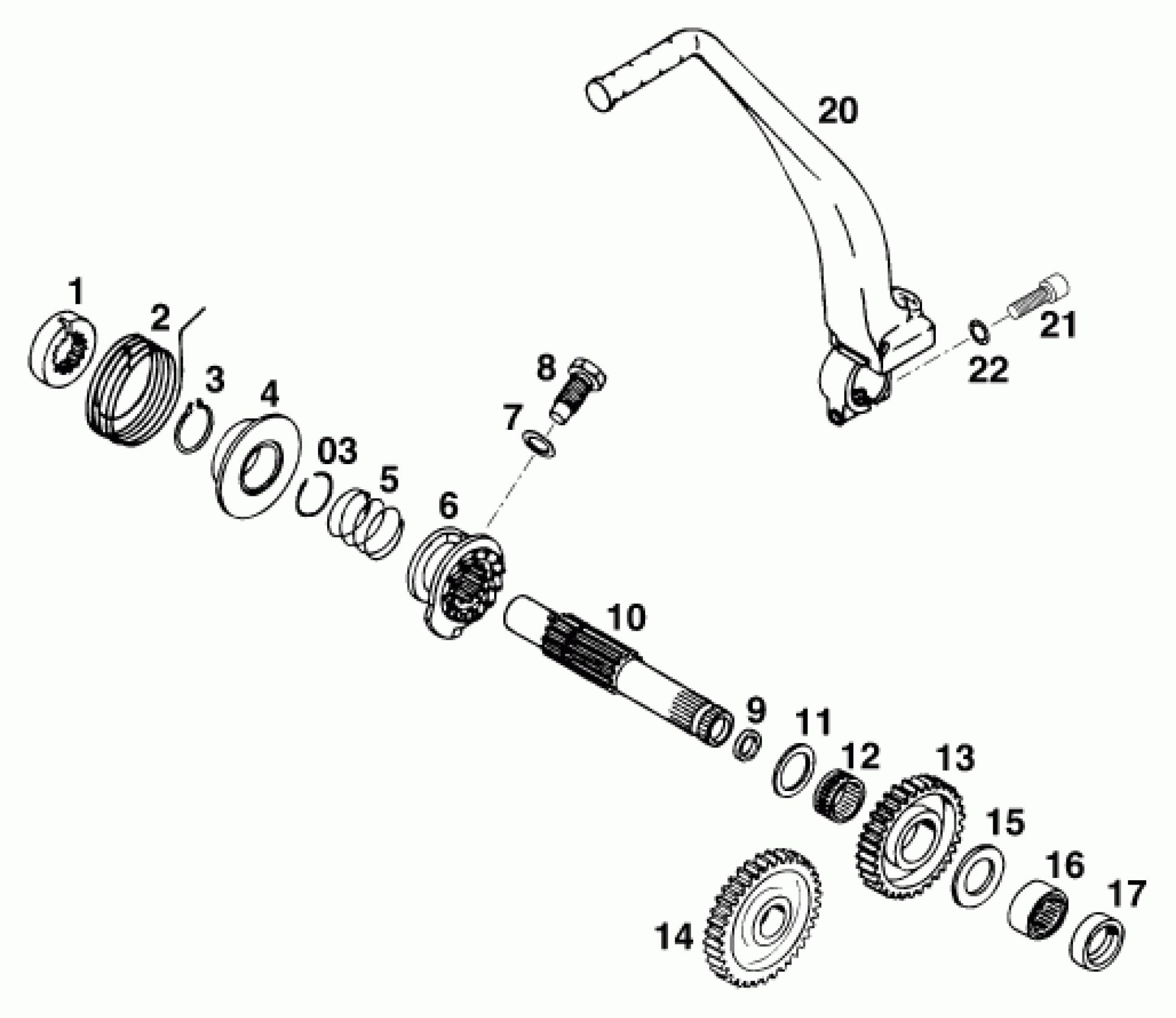

KTM 640 ADVENTURE-R 2000 KICK STARTER Diagram

#

Description
Price

1

DRIVING HUB '94

58033026200

$49.38

2

KICKSTARTER SPRING

58033020000

$12.28

3

LOCK RING 25X1,2

52033090100

$3.08

3

LOCK RING DIN0471-25X1,64SD

52033096000

$5.23

4

SPRING BUSHING

58033037000

$13.84

5

RATCHET GEAR SPRING 1,2 MM

58033028000

$2.05

6

RATCHET GEAR 24-T

58033023200

$269.37

7

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

8

STOP SCREW M12X1,5

58033033000

$10.26

9

SEAL RING DH/GR 12X16X3

54632090000

$11.02

10

KICKSTARTER SHAFT '94

58033021300

$90.27

11

STOP DISK 22,2 X 30 X 1,5

58033031000

$4.11

12

NEEDLE BEARING K22X26X13H

56533098000

$11.96

13

KICKSTARTER GEAR 35-T

58033022700

Unavailable

14

INTERMEDIATE GEAR 37-T

58033024000

$80.67

15

STOP DISK 22,2 X 35 X 2

56532012000

$5.05

16

NEEDLE BEARING RNA 4903

58033090000

$27.18

17

SHAFT SEAL RING 22X32X7 BSL

0760223270

$8.50

20

KICKSTARTER CPL. ALU LC4'94

58333036044

$129.60

21

AH SCREW DIN0912-M 8X25

0912080253

$2.05

22

LOCK WASHER 8MM

36003014000

$2.05
