IGNITION SYSTEM

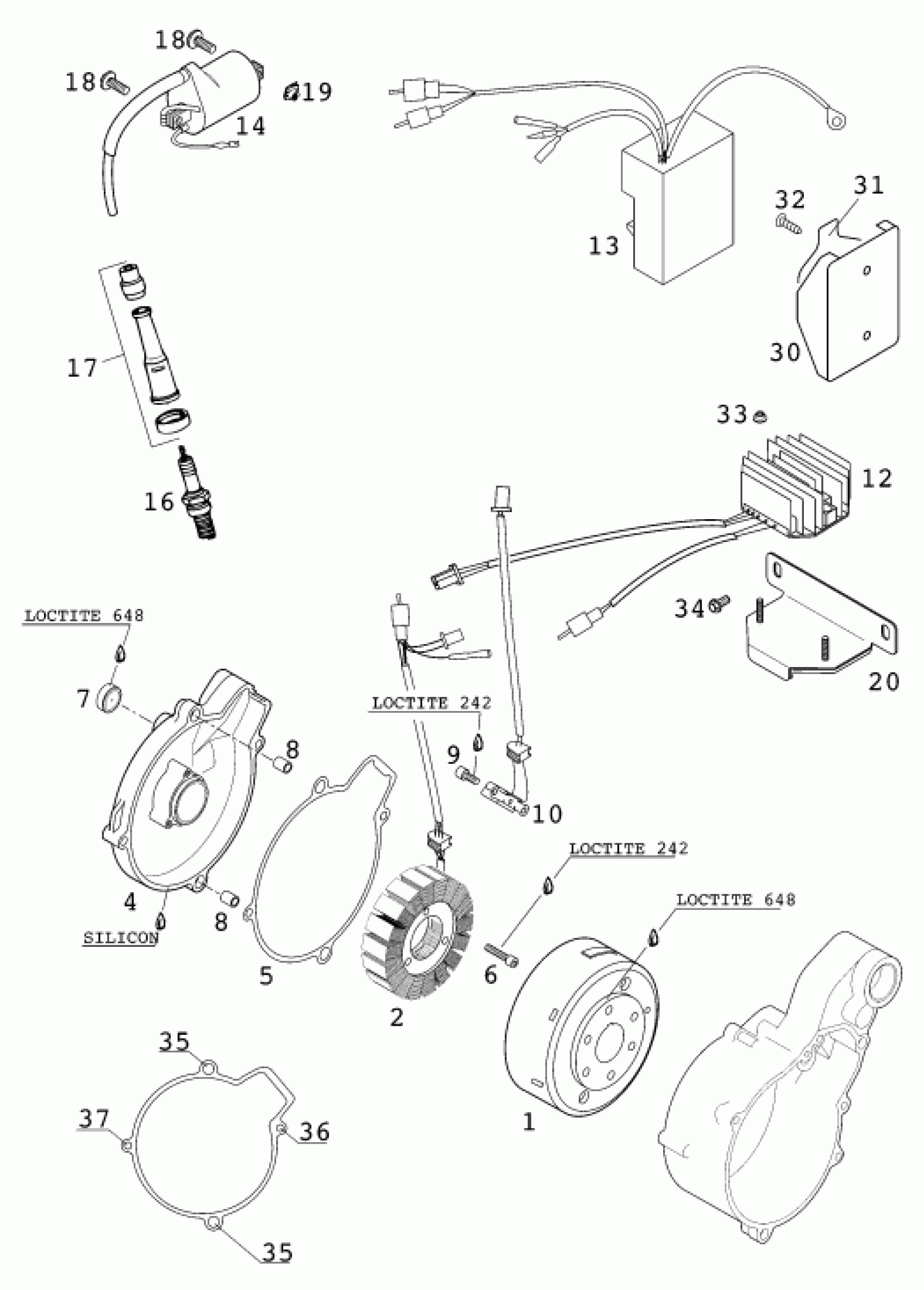

KTM 640 ADVENTURE-R 2000 IGNITION SYSTEM Diagram
#
Description
Price
1
FLYWHEEL KOKUSAN GP9128 '97
58439005100
$340.33
2
STATOR KOKUSAN LOOSE '96
58439004000
$202.68
4
IGNITION COVER CPL. LC4-E '
58430002144
$84.61
4
IGNITION COVER CPL. LC4-E '97
5843000214429
$76.13
5
IGNITION COVER GASKET '96
58430040000
$11.40
6
AH SCREW DIN0912-M 5X25
0912050253
$1.49
7
INSPECTION GLASS GW 20-7
58430095000
$25.05
8
DOWEL 9,8 X 7 X 10
49030090000
$2.05
9
SHCS DIN 912 M5x8
0912050083
$1.49
10
PULSER COIL
58439034000
$103.78
12
VOLT.REGULATOR-RECTIFIER 12V
58411034100
$214.48
13
DIGITALBOX CDI CB7428 '97
58439031100
$200.12
13
DIGITALBX CDI CB7459 95ROZ'99
58439031200
$198.94
13
DIGITALB.CDI CB7477 80ROZ 20
58439031300
Unavailable
14
Ignition coil
58439006000
$75.45
16
SPARK PLUG NGK DPR8EA-9
58439093009
$8.50
17
Spark plug connector
58031010000
$13.27
18
HH COLLAR SCREW M 6X15 WS=8
0014060153
$3.08
19
SNAP-NUT HOLDER M6 KP142
50235033300
$4.11
20
BATTERY BRACKET LC4-E/DUKE'97
58411055100
$18.67
30
RUBBER BRACKET FOR CDI '97
58439030100
$6.13
31
SUPPORT FOR RUBBER BRACKET '97
58439030150
Unavailable
32
SPECIAL SCREW Z 5,5X16
0016055163
$1.49
33
Self locking nut M6 - 10
56509064100
$2.05
34
HH COLLAR SCREW M 6X10 WS=8
0015060103
$3.08
35
HH COLLAR SCREW M 6X30 SW=8
0015060303
$3.08
36
HH COLLAR SCREW M 6X80 WS=8
0015060803
$2.05
37
HH COLLAR SCREW M 6X25 WS=8
0015060253
$3.08
