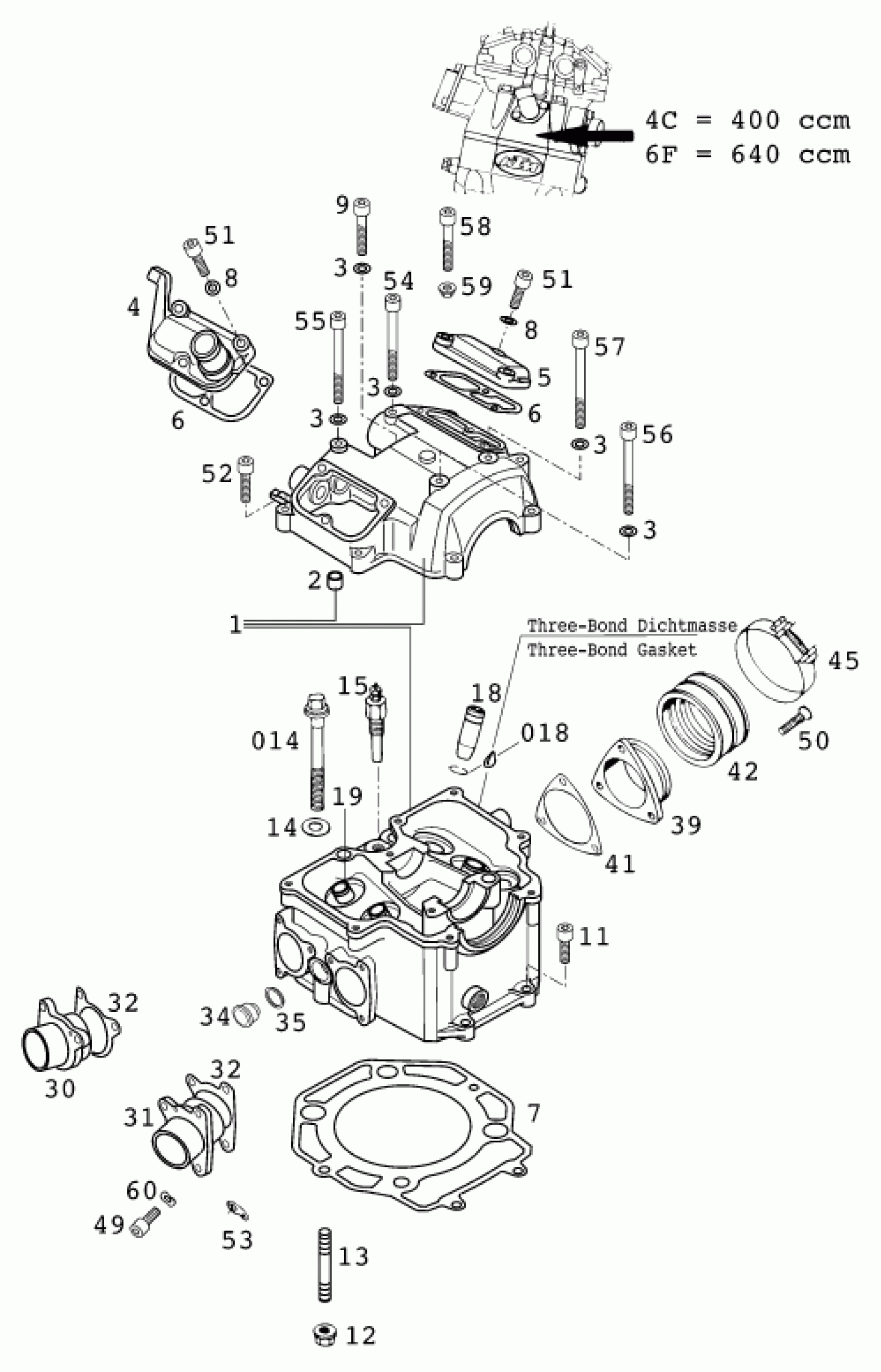

KTM 640 ADVENTURE-R 2000 CYLINDER HEAD Diagram

CYLINDER HEAD CPL. 400 LC4 '97

57636020300

Unavailable

CYLINDER HEAD CPL. 640 LC4 '98

58436020000

Unavailable

DOWEL 9,8 X 7 X 10

49030090000

$2.05

CU-SEAL RING 6 X 10 X 2

58036065100

$2.05

VALVE COVER FRONT

58036152500

Unavailable

VALVE COVER REAR

58036052000

$36.15

VALVE COVER GASKET

58036053000

$4.11

CYLINDER HEAD GASKET 90,3 MM

57530036000

$58.34

CYLINDER HEAD GASKET 101,3 MM

58330036000

$59.36

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

AH SCREW DIN0912-M 6X35

0912060353

$2.05

AH SCREW DIN0912-M 6X25

0912060253

$2.05

COLLAR NUT M8

49030028000

$3.08

STUD DIN0835-M 8X35 10.9

0835080355

$3.08

STUD DIN0835-M 8X40

54330043000

$4.35

CU-SEAL RING 10 X 20 X 1

58036098000

$2.05

COLLAR SCREW M10X80 WS=13 10.9

58036099100

$10.46

TEMPERATURE SWITCH VDO

42011252000

$84.53

CIRCLIP DIN7993-RW12

0993012000

$3.08

VALVE GUIDE INTAKE

58036026600

Unavailable

VALVE GUIDE EXHAUST

58036126600

Unavailable

EXHAUST FLANGE R/S

58036040000

$30.15

EXHAUST FLANGE L/S

58036140000

$29.45

EXHAUST FLANGE GASKET

58036041000

$4.11

PLUG SAS BORE

58336024000

$4.11

CU-SEAL RING 12 X 16 X 2

58436054000

$2.05

INTAKE FLANGE D=40MM

58136042040

Unavailable

INTAKE FLANGE GASKET

58136043000

$3.08

INTAKE BOOT D=38MM 400-660 LC4

58136044100

$33.74

INTAKE BOOT FOR MIKUNI CARBU.

58436044000

$33.18

CLAMP SM12/A60

56530061000

$7.40

AH SCREW DIN0912-M 6X16

0912060163

$1.49

FLAT H.SCREW DIN7991-M6X20

0991060203

$2.05

AH SCREW DIN0912-M 6X20

0912060203

$2.05

AH SCREW DIN0912-M 6X25

0912060253

$2.05

RETAINING PLATE

51005074000

Unavailable

AH SCREW DIN0912-M 6X50 12.9

0912060501

$1.73

AH SCREW DIN0912-M 6X55 12.9

0912060551

$2.05

SHCS DIN 912 M6x65

0912060653

$2.05

AH SCREW DIN0912-M 6X70

0912060703

$1.49

AH SCREW DIN0912-M 6X40 A2

0912060404

$2.05

SELF LOCKING NUT M6

56509064000

Unavailable

SPRING WASHER DIN0137-B 6

0137060000

Unavailable
