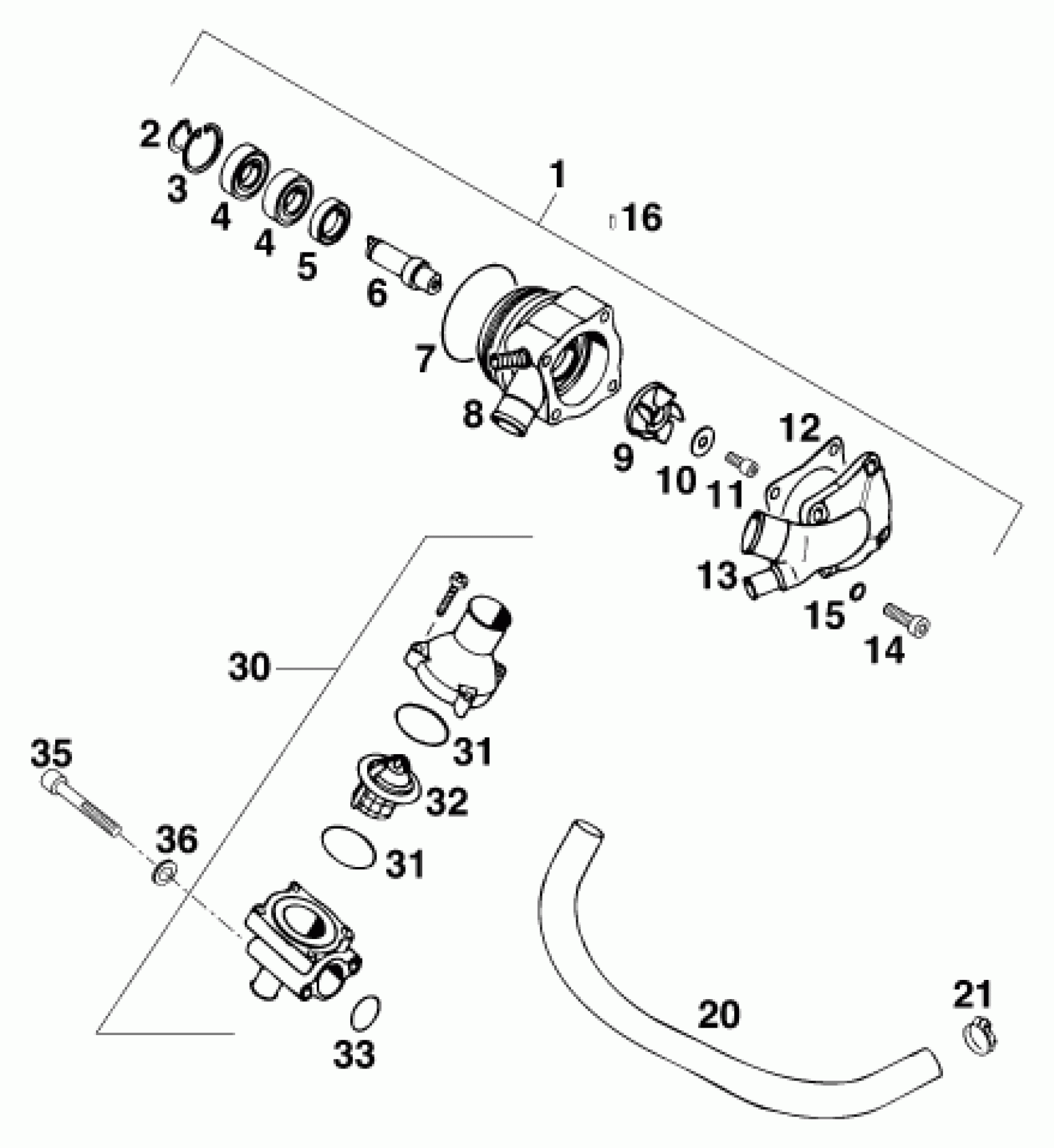

KTM 640 ADVENTURE-R 2000 COOLING SYSTEM Diagram

#

Description
Price

1

WATER PUMP MECHANIC CPL.'94

58335050044

$316.16

2

retaining ring DIN 471 12x1

0471120010

$1.49

3

CIRCLIP DIN0472-28X1,2

0472280120

$2.05

4

deep groove ball bearing 6001.

0625060016

$18.88

5

SHAFT SEAL RING 15X24X7 A-DUO

0760152472

$15.04

6

WATER PUMP SHAFT

54435010000

$43.94

7

O-RING 47,00X1,50 NBR 70

0770047015

$1.49

8

% WATER PUMP HOUSING '92

58035002600

$78.92

9

WATER PUMP WHEEL

56535005300

$8.03

10

washer DIN 9021 A - 5.3

0021050003

$1.49

11

AH SCREW DIN0912-M 5X12

0912050123

$2.05

12

WATER PUMP COVER GASKET

56535003300

$2.05

13

WATER PUMP COVER LC4'99

58335001100

Unavailable

14

AH SCREW DIN6912-M 6X20 8.8

0984060203

$2.05

15

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

16

NEEDLEROLL.DIN5402 NRB 2,5X5,8

0402025580

Unavailable

20

RADIATOR HOSE 12X3 04

58335025350

$3.94

21

HOSE CLAMP GEMI 10-16

58335099000

$4.11

30

THERMOSTAT CPL. 70 DG LC4'94

58335013044

$102.19

31

O-RING 32,00X2,00

0770320020

$2.05

32

THERMOSTAT 70 DEGREES '94

58335017000

$65.26

33

O-RING 21,00X2,00 NBR70

0770021020

$2.05

35

AH SCREW DIN0912-M 6X45

0912060453

$2.05

36

WASHER DIN0125-A 6,4

0125060003

$1.49
