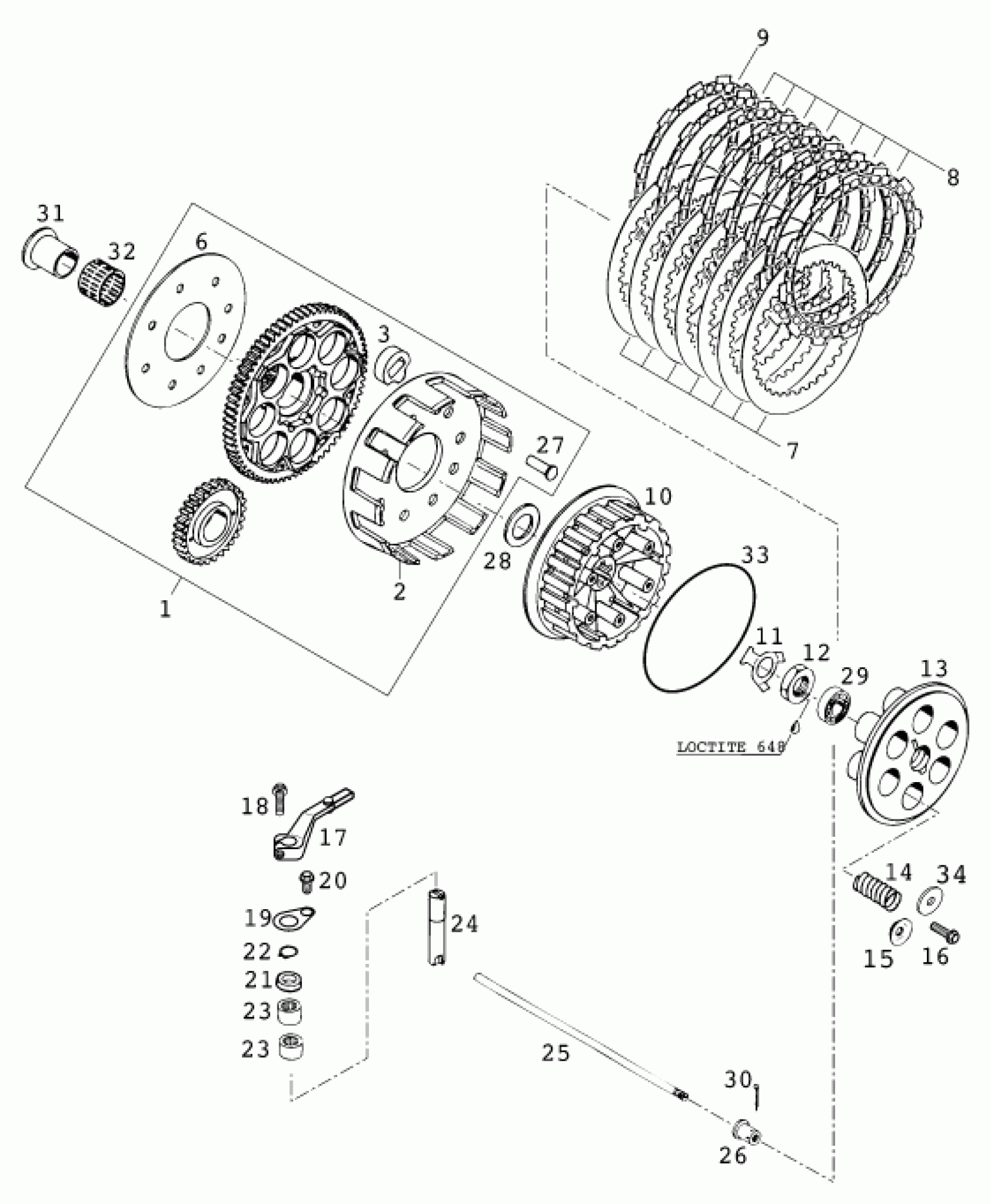

KTM 640 ADVENTURE-R 2000 CLUTCH Diagram

#

Description
Price

1

OUTER CL.HUB 81-T W.PRIM.30

58332001081

Unavailable

2

OUTER CL.HUB LOOSE D=160MM '

58332001000

$80.95

3

DAMPING ELEMENT '94

58332026000

$11.77

6

BRACKET 57 x 132 x 1,5 '94

58332028000

$5.55

7

STEEL DISK 1,5 MM LC4'94

58332112000

$13.83

8

LINING DISK 2,7 MM EN-622 '

58332011100

Unavailable

9

LINING DISK 2,7 MM SPECIAL

58332111000

$30.47

10

INNER CL HUB LC4/LC4-E '98

58332002200

$83.32

11

LOCK WASHER '94

58332018000

$3.85

12

HEXAGON NUT DIN0936-M18X1,5 R.

0936181505

$7.75

13

PRESSURE CAP LC4/LC4-E '98

58332003200

$67.78

14

CLUTCH SPRING 2,8 X 37

58332080000

$7.94

15

SPRING RETAINER 6,2 X 20 X 3,2

58132081000

$3.08

16

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

17

CLUTCH RELEASE LEVER LC4-E '

58432048000

$44.17

18

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

19

*RETAIN.PLATE CLU.RELEASELEVER

58432044000

Unavailable

20

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

21

NUT RING NIS 12X20X5,5

54532093000

$2.47

22

retaining ring DIN 471 12x1

0471120010

$1.49

23

NEEDLE BEARING HK 1212

50332095000

$8.03

24

DISENGAGING SHAFT 12 X 66 '93

57532015000

$33.77

25

PUSH ROD 224 MM LC4'94

58332017000

$17.30

26

PRESSURE BOLT LC4'94

58332032000

$15.86

27

RIVET 6 X 23 X 11,2

58332007000

$4.11

28

SUPPORTWASHER 22,2X35X3 HARDE.

57532013000

$18.72

29

deep groove ball bearing 6001.

0625060016

$18.88

30

PIN DIN0094-2,0X16

0094020163

$1.73

31

INNER RING WITH COLLAR

50332070000

$49.27

32

NEEDLE BEARING K26X30X22ZW.KSE

56532095000

$23.83

33

O-RING 116,00X3,00 HNBR 70

0770116030

$8.78
