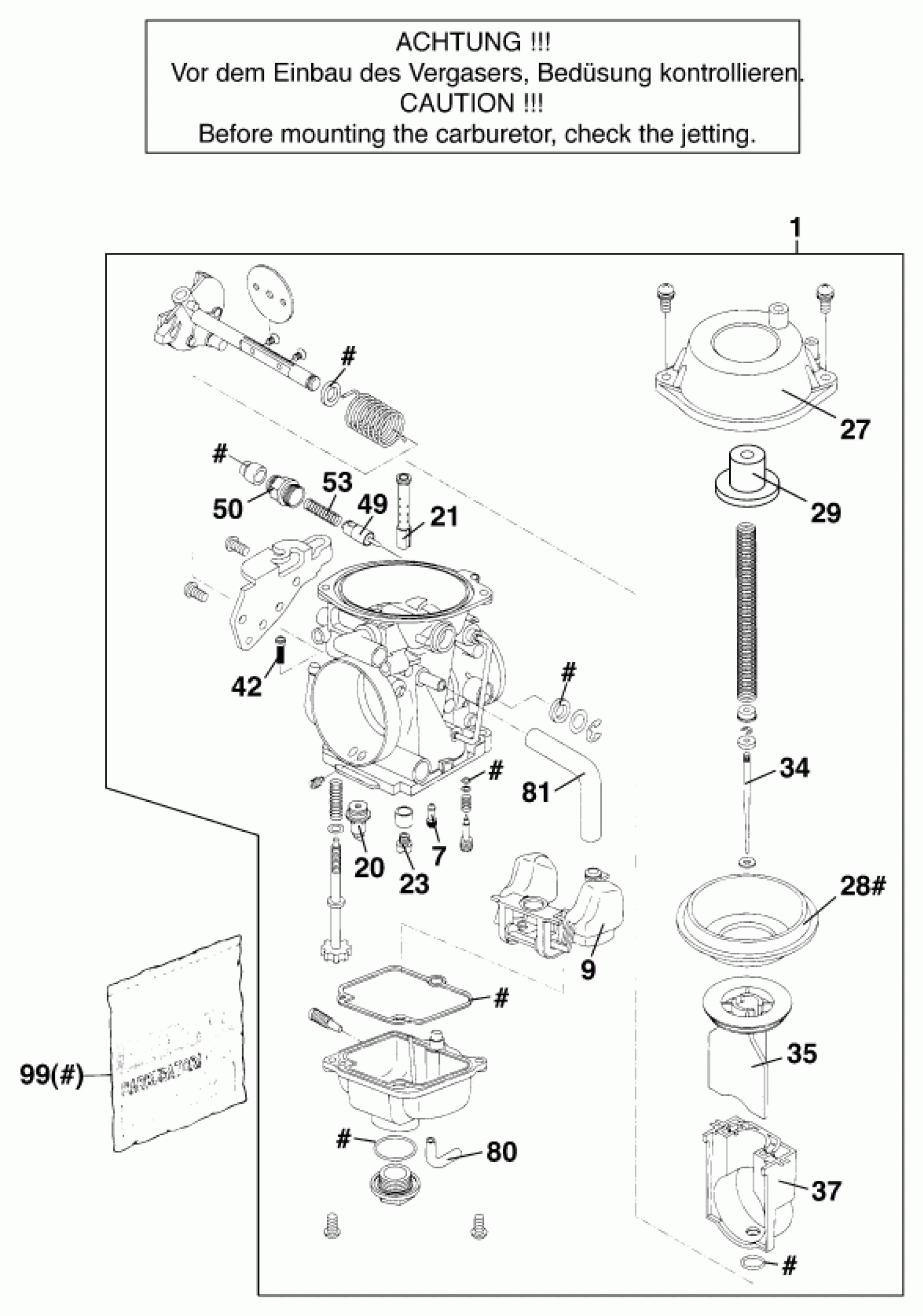

KTM 640 ADVENTURE-R 2000 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR MIKUNI BST40-22598

58431001400

Unavailable

7

IDLING JET 45

58431007045

$13.27

9

FLOAT 6,1 GRAMM MIKUNI

58431009000

$46.55

20

NEEDLE VALVE 2,8MM

58431020000

$54.13

21

NEEDLE JET 689 X-6

58431021689

$22.71

23

MAIN JET 140

58431023140

Unavailable

23

MAIN JET 142,5

58431023142

$6.38

23

MAIN JET 145

58431023145

Unavailable

27

DIAPHRAGM COVER MIKUNI

58431027000

$36.43

28

DIAPHRAGM FOR THROTTLE VALVE

58431028000

$42.16

29

SLIDE STOP L=17MM MIKUNI

58331029017

Unavailable

34

JET NEEDLE 6G5

584310346G5

$13.46

35

THROTTLE VALVE ''1''

58431035000

$54.22

37

THROTTLE VALVE GUIDE PLASTIC

58431037000

$37.02

42

FUEL SCREEN MIKUNI

58431042000

$8.03

49

STARTING PISTON MIKUNI

58431049000

$32.90

50

SCREW M12 STARTSYSTEMN

58431050000

$8.97

53

SPRING 22,5MM FOR START.PISTON

58431053000

$5.98

80

PVC-HOSE 3X5MM

52031137001

Unavailable

81

HOSE ID 7,5 PER METER

54435024001

Unavailable

99

GASKET SET MIKUNI BST40-225

58431099000

$62.54
