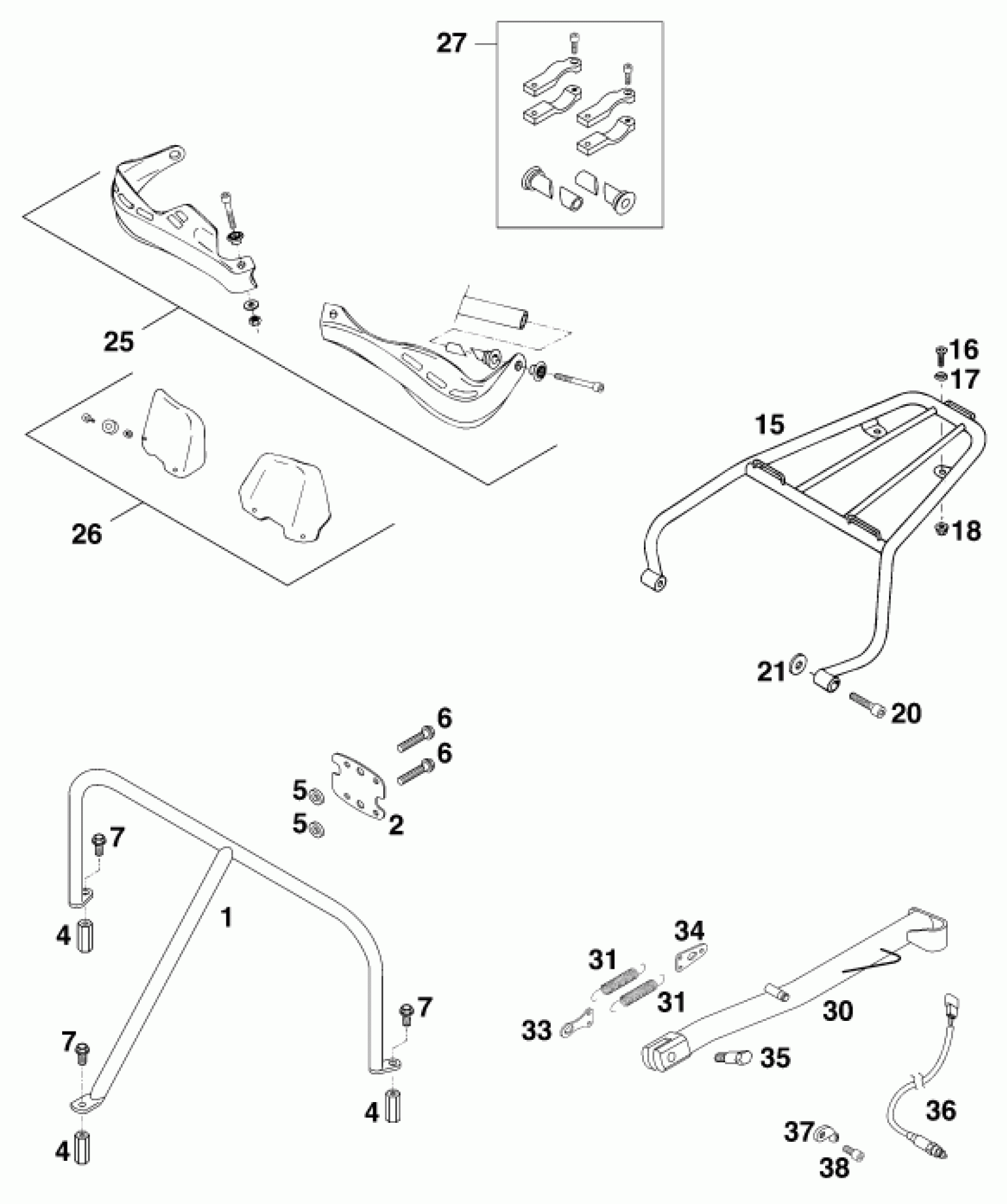

KTM 640 ADVENTURE-R 2000 ACCESSORIES Diagram

#

Description
Price

1

% ROADBOOK CARRIER 620 ADV.'

58212090000

Unavailable

2

BRACKET FOR ROADBOOKSWITCH '97

58202070000

Unavailable

4

HH NUT M6 L=25MM WS=10

73001039100

Unavailable

5

WASHER 6 X 12 X 3

12011016000

Unavailable

6

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

7

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

15

BAGGAGE CARRIER ORANGE ADV.

5831201100004

Unavailable

16

FLAT H.SCREW DIN7991-M6X20

0991060203

Unavailable

17

WASHER 6MM

40006006000

Unavailable

18

Self locking nut M6 - 10

56509064100

Unavailable

20

AH SCREW DIN0912-M 6X30

0912060303

Unavailable

21

STEEL WASHER 6,4X17X3

50232050001

Unavailable

25

% HAND GUARD CPL.L+R/S BLACK

5020207904430

Unavailable

26

SCREEN CPL.L+R/S BLACK

5020207905030

Unavailable

27

FASTENING KIT HAND GUARDS CPL.

50202079051

Unavailable

30

*SIDESTAND CPL.407MM ADVENT'97

58203023000

Unavailable

31

STAND SPRING SHORT

10003021000

Unavailable

33

*SPRING SHACKLE TOP FOR SIDEST

51103023054

Unavailable

34

SPRING SHACKLE BELOW F.SIDEST.

51103023055

Unavailable

35

SCREW FOR SIDE STAND M10X26,7

58203027200

Unavailable

36

CLUTCH SWITCH '96

58411049000

Unavailable

37

SWITCH BRACKET F. ADVENTURE'97

58203029000

Unavailable

38

AH SCREW DIN0912-M10X16

0912100160

Unavailable
