REAR WHEEL

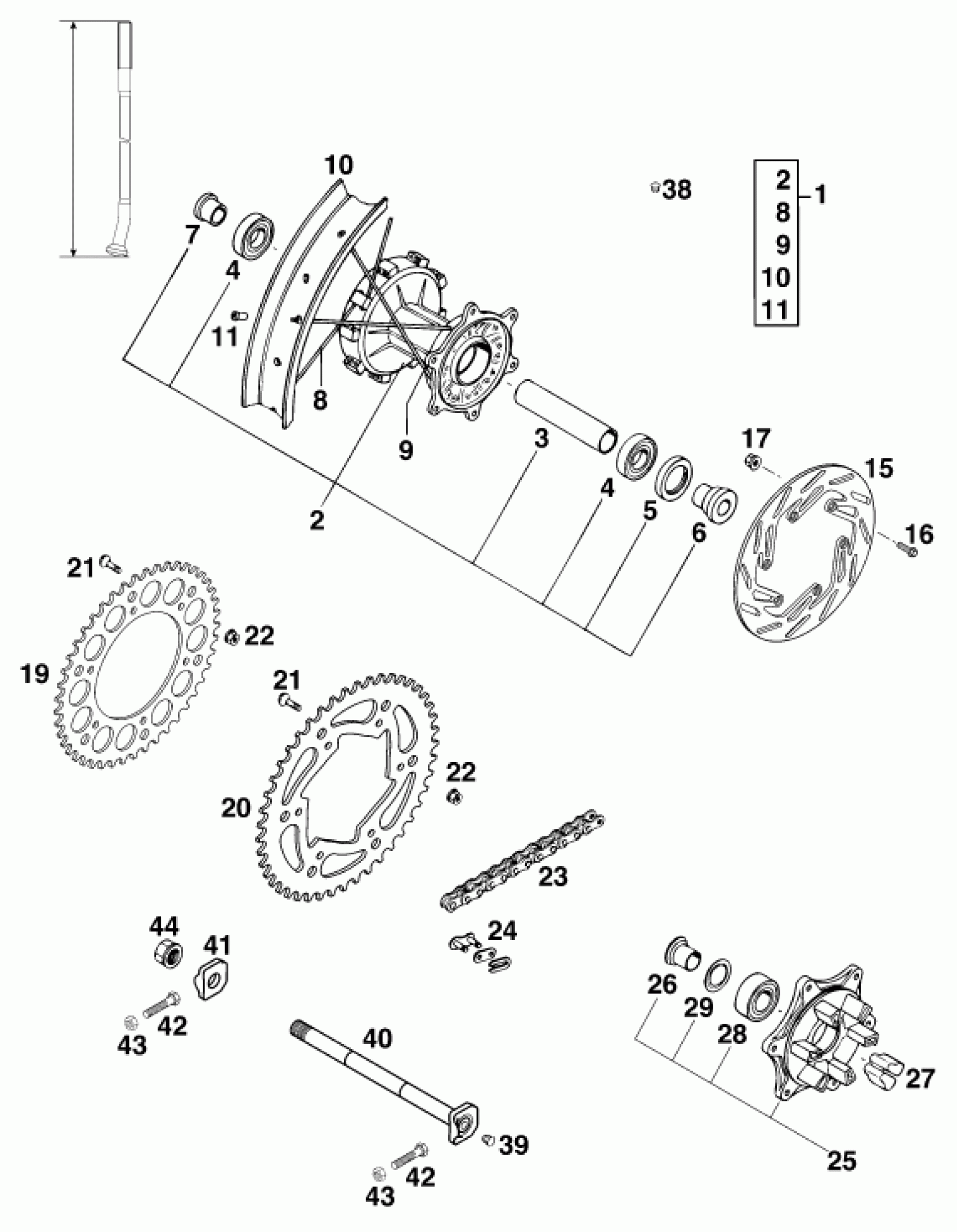

KTM 640 ADVENTURE-R <1999 REAR WHEEL Diagram
#
1
REAR WHEEL 2,50X18'' DID
58310001044
$648.96
2
58310010044
Unavailable
3
BEARING SPACER TUBE L=98,3MM
54610411100
Unavailable
4
Grooved ball bear. 6205-2RSHC3
0625062052
$30.85
5
SHAFT SEAL RING 32X52X7 B
0760325272
$16.54
6
BUSHING FOR HUB
54610016000
$32.90
7
BUSHING FOR REAR DAMPED HUB
54610416300
$20.09
8
SPOKE M5X223-10G 18''
54610471000
$5.23
9
SPOKE M5X200-10G 18'' DDE
58310071200
Unavailable
10
REAR RIM 2,50X18'' DID
58010470100
$182.01
11
SPOKE NIPPLE M5-TA (8X21MM)
58309072000
$2.05
15
REAR BRAKE DISK 220MM COUNTERS
58010060600
$183.53
16
HH COLLAR SCREW M 6X20 WS=8
0015060203
$3.08
17
SELF LOCKING NUT M6
56509064000
Unavailable
19
REAR SPROCKET 38-T
58310051038
Unavailable
19
REAR SPROCKET 42-T
58310051042
Unavailable
19
REAR SPROCKET 40-T
58310151040
Unavailable
19
REAR SPROCKET 45-T
58310151045
Unavailable
20
REAR SPROCKET 48-T
58310151048
Unavailable
20
REAR SPROCKET 50-T
58310151050
Unavailable
20
REAR SPROCKET 52-T
58310151052
Unavailable
21
SPROCKET SCREW-AH M 8X26
54510052000
Unavailable
22
54310086000
Unavailable
23
50010065100
Unavailable
23
X-R.CHAIN 5/8X1/4''/M W.LINK
50010065101
Unavailable
24
MASTER LINK 5/8X1/4'' X-RING
50010066100
$13.27
25
SPROCKET SUPPORT CPL.
58310050044
Unavailable
26
BUSH. F.SPROCKETSUPPORT L=25MM
54610417300
$17.38
27
Rubber damping block 91
54610459000
$8.03
28
GR. BALL BEARING 3205B-2RSRTNG
0625032057
$74.67
29
SEAL WASHER 3205 AV
54610018000
$9.34
38
PLUG FOR RIM
55003135000
Unavailable
39
Plug SFL16
50210086000
$3.08
40
WHEEL SPINDLE REAR CPLL=264MM
50210085044
$70.38
41
CHAIN TENSIONER '95
56510084100
$11.28
42
HH SCREW M8X40 WS=10
50203030090
$4.11
43
Hexagon nut DIN934 M8
0934080003
$2.05
44
Hexagon nut M20x1.5
50310099000
$11.30
