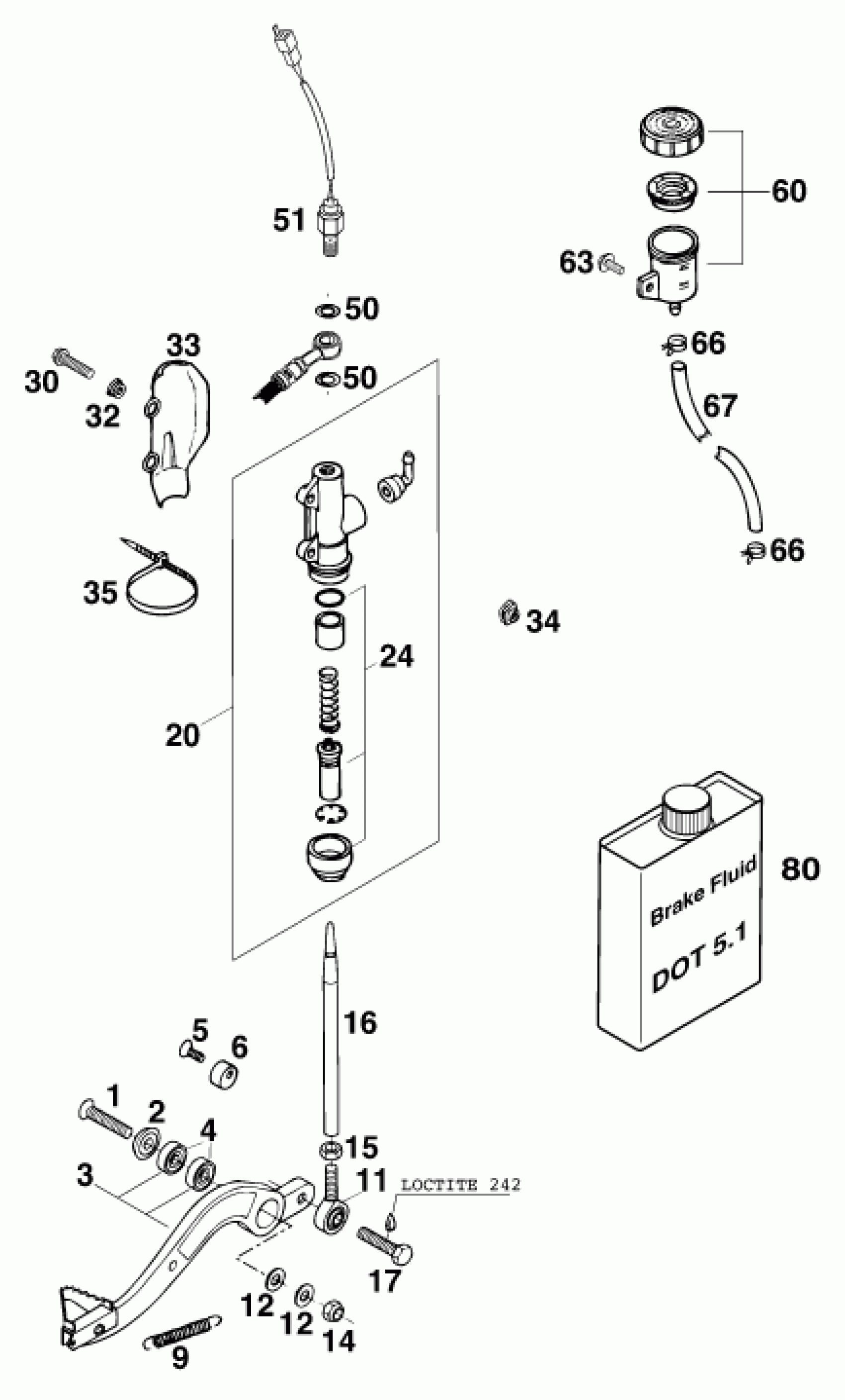

KTM 640 ADVENTURE-R <1999> REAR BRAKE CONTROL Diagram

#

Description
Price

1

FLAT HEAD SCREW DIN7991-M 8X35

0991080353

$2.61

2

SPECIAL WASHER ALU 8 X 24 MM

58303061000

$5.23

3

58303060344

Unavailable

4

Grooved ball bearing 608 2RS C

0625006087

$21.40

5

FLAT H.SCREW DIN7991-M6X20

0991060203

$2.05

6

BRAKE LEVER STOP '93

58303063000

$5.98

9

RETURN SPRING

13003062000

$5.79

11

HEIM JOINT M8 W=12MM '93

58303062000

$38.07

12

washer DIN 125 A -8.4

0125080003

$1.49

14

SELF LOCKING NUT DIN0985-M 8

0985080003

$2.05

15

Hexagon nut DIN934 M8

0934080003

$2.05

16

PUSH ROD ALU L=178MM '93

58303068100

$9.67

17

HH SCREW DIN0933-M 8X22 8.8

0933080223

Unavailable

20

MAIN BRAKE CYLINDER '89

54513101044

$126.73

24

REPAIR KIT PISTON 13MM

54513150000

$46.46

30

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

32

COLLAR BUSHING

50213161000

$3.08

33

BRAKE CYL. PROTECTOR ''BREMBO'

54513038000

$7.00

34

SNAP-NUT HOLDER M6 KP142

50235033300

$4.11

35

CABLE TIE 300/4,8MM BLACK

44011076305

$2.05

50

CU-SEAL RING DIN7603-10X16X1

42013226000

$2.05

51

BRAKE LIGHT SWITCH REAR '98

50311051100

$36.92

60

BRAKE FLUID RESERVOIR '89

54513030044

$20.56

63

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

66

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.08

67

HOSE FOR RESERVOIR 6X1,5

58007016101

Unavailable

80

BRAKE FLUID DOT 4.0

306054

Unavailable
