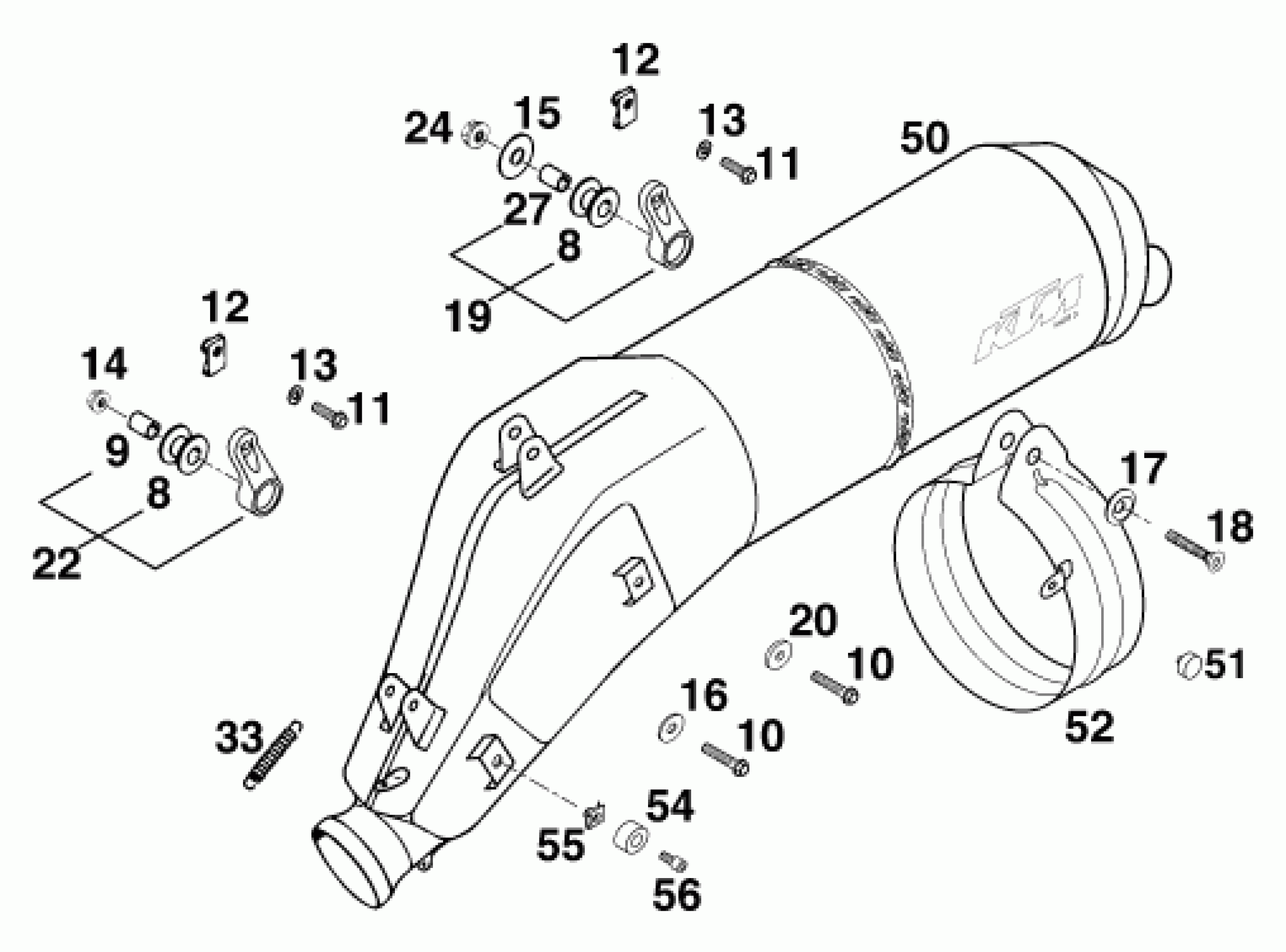

KTM 640 ADVENTURE-R <1999 MAIN SILENCER Diagram

damp. component silicone grey

54305068100

$8.31

BUSHING 7X12X15,4

54305069000

$4.11

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

clip nut M6

54603048100

$4.11

SPRING WASHER DIN0137-B 6

0137060000

Unavailable

SELF LOCKING NUT M6

56509064000

Unavailable

WASHER DIN9021-A 8,4

0021080003

$1.49

Washer DIN9021-A 6.4

0021060003

$2.05

SPECIAL WASHER ALU 8 X 24 MM

58303061000

$5.23

FLAT HEAD SCREW DIN7991-M 8X35

0991080353

$2.61

SILENCER BRACKET CPL. SHORT

58305165144

$22.90

STEEL WASHER 6,4X17X3

50232050001

$5.23

SILENCER BRACKET CPL. SHORT'96

58305165244

$23.81

54310086000

Unavailable

Spacer bushing 8.4X12X16

56505069000

$4.11

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

$4.57

SILENCER ''KTM HGS KAT'' '97

58305083000

Unavailable

SILENCER ''KTM HGS3'' '

58305083100

Unavailable

RUBBER BUFFER

54308042000

$3.08

RETAIN.CLAMP F.HGS-SILENC. '99

58305161200

Unavailable

RUBBERBUFFER 8X17X10 SILENC'97

58405098000

$3.08

RANGE CHANGE MET. NUT M5 15460

54603048400

$3.08

AH SCREW DIN0912-M 5X12

0912050123

$2.05
