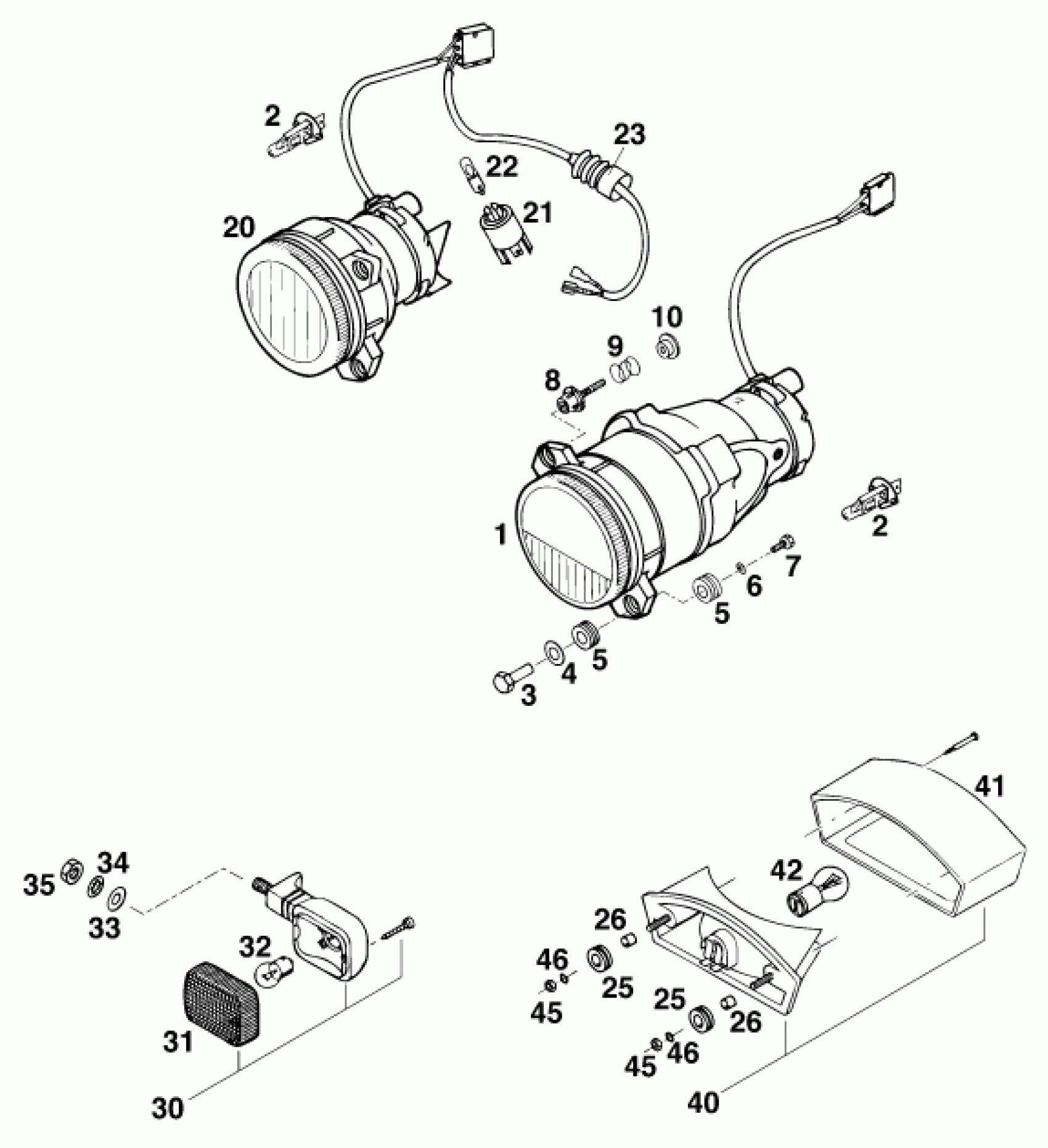

KTM 640 ADVENTURE-R <1999 LIGHTING SYSTEM Diagram

#

Description
Price

0

FLASHER REAR L/S / FRONT R/S

58311112000

$15.26

1

HEADLIGHT LOW BEAM DUKE'94

58311010000

$186.24

2

BULB H1 12V 55W WHITE

58311038000

$12.94

3

SPECIAL NUT M5X25 WS=10

58311044000

$5.32

4

washer DIN 125 A -8.4

0125080003

$1.49

5

rubber grommet D=8mm open

31008060000

$2.05

6

TOOTH LOCK WASH. DIN6797-J 5,3

0797050003

$1.49

7

HH SCREW DIN0933-M 5X12

0933050123

$1.49

8

ADJUSTING SCREW M5X30 CPL.

58311011000

$2.56

9

SPRING L=16MM

12003007052

$1.73

10

COLLAR BUSHING 5 X 10 X 6 ALU

54603073000

$1.96

20

HEADLIGHT HIGHBEAM DUKE '94

58311110000

$86.98

21

BULB SOCKET BA9S

58311039000

$4.53

22

BULB 12V 2W BA9S

44111005100

$3.39

23

CLUTCH LEVER BOOT '95

58302126000

$5.23

25

rubber grommet D=8mm open

31008060000

$2.05

26

SPACER BUSHING 6,5 X 8 X 7

58011039000

$2.05

30

FLASHER FRONT L/S / REAR R/S

58311012000

$15.68

31

FLASHER LENS L/S AND R/S

58311013000

$4.97

32

BULB 12V 10W (BA15S)

44111015100

$3.08

33

washer DIN 125 A 10.5

0125100003

$2.05

34

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

35

HEXAGON NUT DIN0934-M10X1,25

0934102003

Unavailable

40

REAR LIGHT CPL. CEV 358 '93

58311040000

$45.73

41

LENS '93

58311041000

$27.95

42

BULB 12V 21/5W (BAY15D)

57011045000

Unavailable

45

Self lock. nut DIN985-M6-A2

0985060003

$2.05

46

Washer DIN9021-A 6.4

0021060003

$2.05
