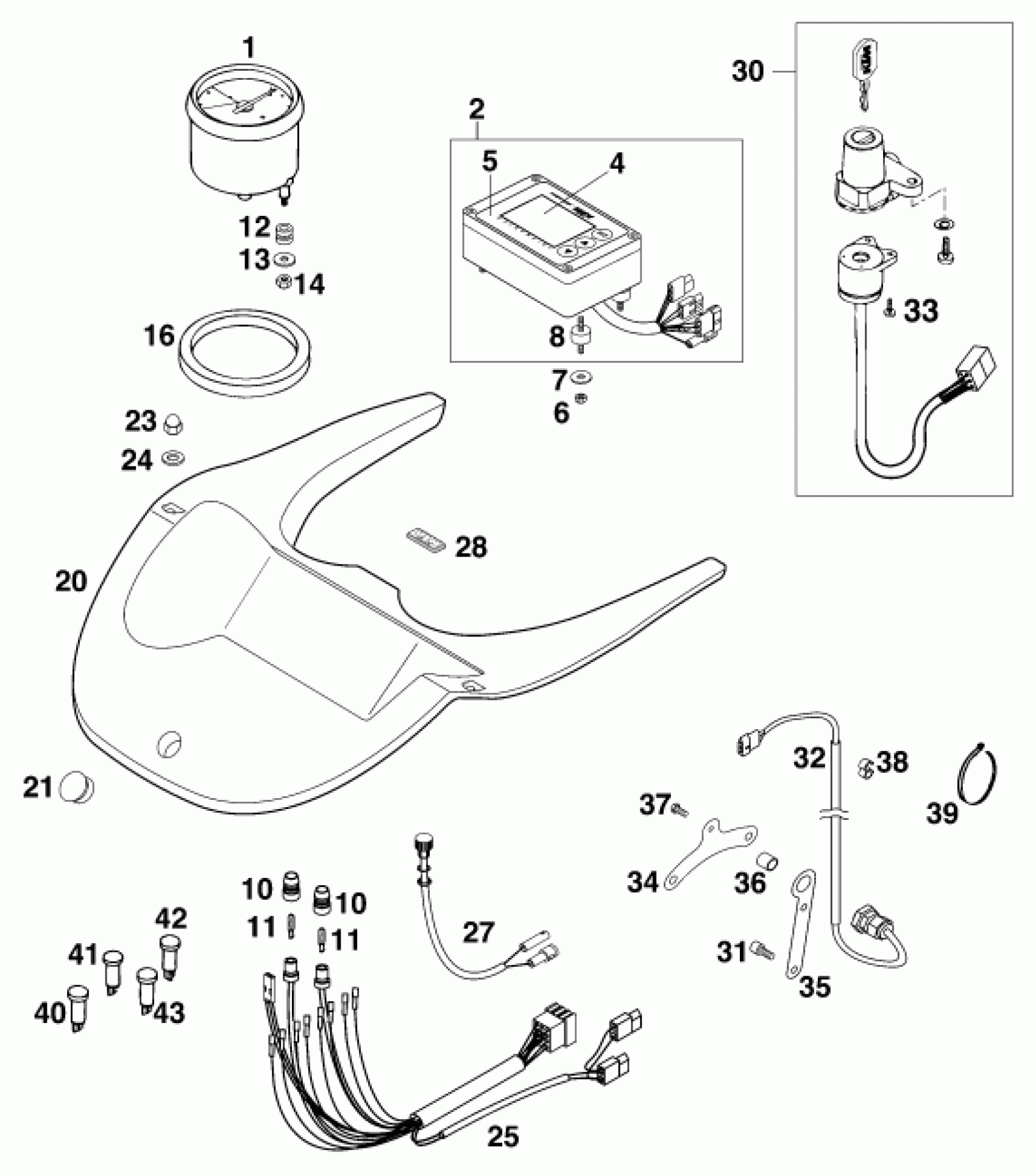

KTM 640 ADVENTURE-R <1999> INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

0

Cable tie 200/4.6mm black

44011076200

Unavailable

1

% TACHOMETER 10000 RPM ADV. '

58214075000

Unavailable

2

TRIPMASTER IMO-100R CPL. '97

58212085000

Unavailable

4

DISPLAY LENS FOR TRIPM.ADV.'97

58212085050

Unavailable

5

KEYBOARD FOIL F.TRIPM. ADV.'97

58212085051

Unavailable

6

SELF LOCKING NUT DIN0985-M 4

0985040003

Unavailable

7

WASHER DIN9021-A 4,3

0021040003

Unavailable

8

RUBBER GROMMET 15X8-M4X10 (2)

58212085052

Unavailable

10

REDUCTION RUBBER

58311088100

Unavailable

11

BULB 12V 1,2W (W2X4,6D)

49111425000

Unavailable

12

RUBBER FOR TACHOMETER ADV.'97

58214079000

Unavailable

13

washer DIN 9021 A - 5.3

0021050003

Unavailable

14

Self locking nut DIN 985 M5

0985050003

Unavailable

16

FOAM RUBBER RING 81x97x10

58311054000

Unavailable

20

COCKPIT COVER ADVENTURE '97

58214070000

Unavailable

21

PVC CAP D=22MM

71001012000

Unavailable

23

HH CAP NUT DIN1587-M 6 BLACK

0587060001

Unavailable

24

WASHER 6X17X1,5 BLACK

56032005100

Unavailable

25

WIRING HAR. F.CONTROLS ADV.'97

58211078000

Unavailable

27

CONTRAST POTENTIOMETER ADV.'97

58212083000

Unavailable

28

PLATE "KTM" FOR ADVENTUR '97

58214071000

Unavailable

30

IGNITION LOCK W.LIGHTSWITCH 98

58411066000

Unavailable

30

IGNITION LOCK 99

58411066100

Unavailable

31

AH SCREW DIN0912-M 5X10

0912050103

Unavailable

32

SENSOR CABLE CPL. ADVENTURE'97

58212084000

Unavailable

33

FLAT HEAD SCREW DIN7985-M 4X12

0985040123

Unavailable

34

BRACKET SENSOR MAGNET ADV. '97

58214050050

Unavailable

35

BRACKET FOR SENSOR ADV. '97

58214050051

Unavailable

36

SENSOR MAGNET FOR ADVENTURE'97

58214050052

Unavailable

37

HH SCREW DIN0933-M 4X 8

0933040083

Unavailable

38

CLAMP D=6/8MM, BLACK

55011022000

Unavailable

39

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

40

HIGH BEAM INDICATOR LIGHT BLUE

58011021200

Unavailable

41

NEUTRAL INDICATOR LIGHT GREEN

58011023200

Unavailable

42

TEMPERATURE WARNING LIGHT RED

58011022200

Unavailable

43

FLASHER INDICATOR LIGHT GREEN

58011024200

Unavailable
