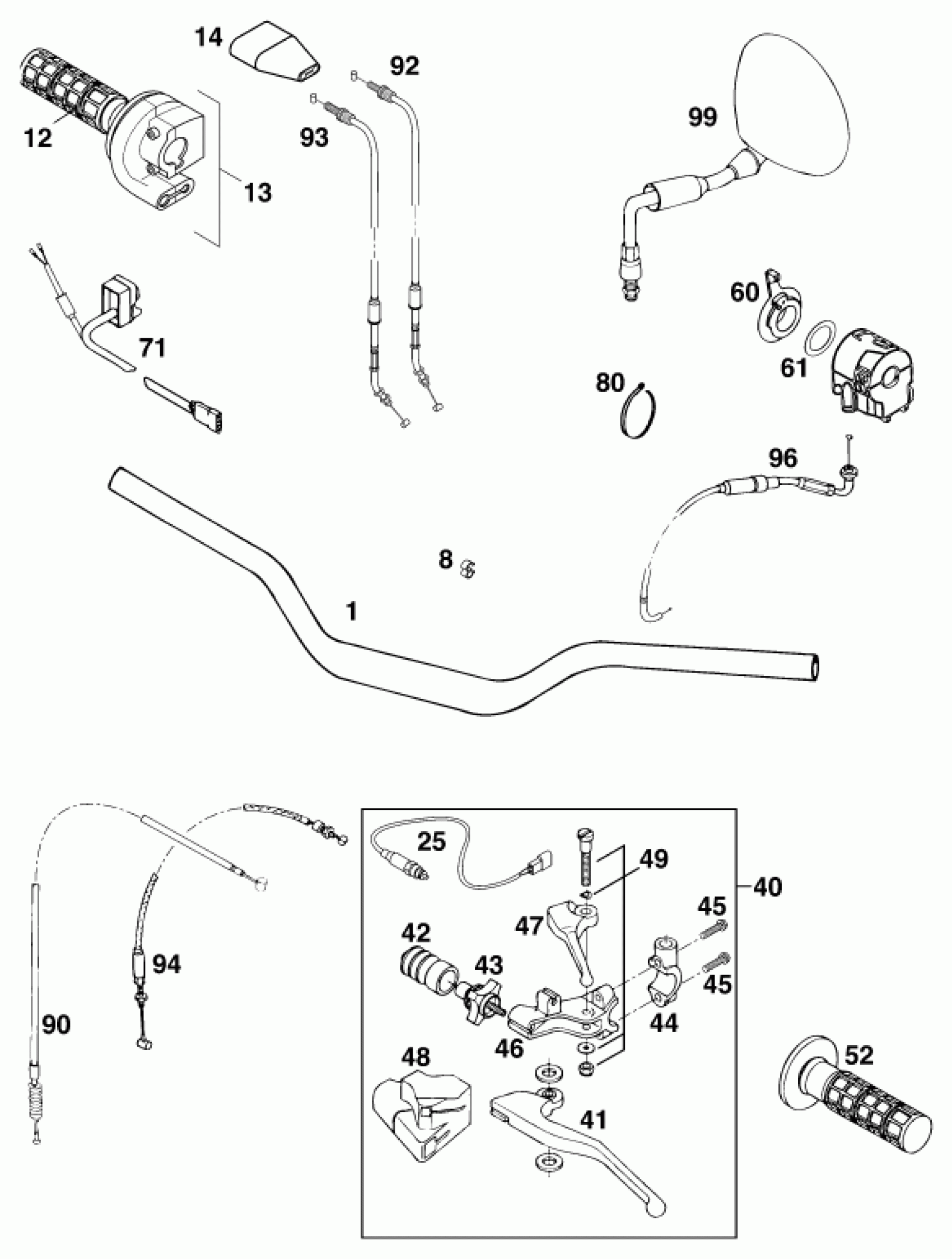

KTM 640 ADVENTURE-R <1999 HANDLEBAR, CONTROLS Diagram

#

Description
Price

0

Cable tie 200/4.6mm black

44011076200

Unavailable

0

* REAR MIRROR R/S '95

58312140100

Unavailable

1

ALU-HANDLEBAR SX,SC,ADVENT.'97

58302001300

Unavailable

8

CLAMP D=6/8MM, BLACK

55011022000

Unavailable

12

TWIST GRIP COVER DOMINO

58302003000

$27.76

13

THROTT.GRIP CPL. DOMINO-MIKUNI

58402010400

$47.38

14

PROTECT.COVER RXC/DUKE USA '95

58302016200

$3.06

25

CLUTCH SWITCH '96

58411049000

$32.81

40

CLUTCH LEVER CPL. DOMINO '97

58402040100

Unavailable

41

CLUTCH LEVER LOOSE SILVER '97

58402042000

$40.10

42

CLUTCH LEVER BOOT '95

58302126000

$5.23

43

ADJUSTMENT SCREW CPL.M7

58302043000

$22.06

44

CLAMP MIRROW M10x1,25

58302044000

$13.36

45

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

46

JOINT (PIVOT) DOMINO '96

58402041000

$39.45

47

DECOMPRESSION LEVER LOOSE

58302047000

$12.05

48

PLASTIC COVER '

58402048000

Unavailable

49

LEVER SCREW CPL.

58302049000

$7.00

52

FIXED GRIP DOMINO '93

58302052000

$27.76

60

CHOKE LEVER DOMINO '94

58302050100

$10.46

61

thrust wash DIN0988-25x35x0,5

0988253505

$4.11

71

*START-STOP SWITCH ADVENTURE97

58211074000

Unavailable

80

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

90

CLUTCH CABLE 4T L=1115MM '99

58402090000

$42.63

92

THROTT.CABLE''CLOSE''DOM.-MIKU

58402092000

$50.39

93

THROTT.CABLE''OPEN''DOM.-MIKUN

58402192000

$53.10

94

DECOMPR. CABLE L=693,5 LC4 '99

58302094200

$32.84

96

CHOKE CABLE FOR MIKUNI LC4 '98

58402095000

$46.74

99

REAR MIRROR L/S '95

58312040100

$55.06
