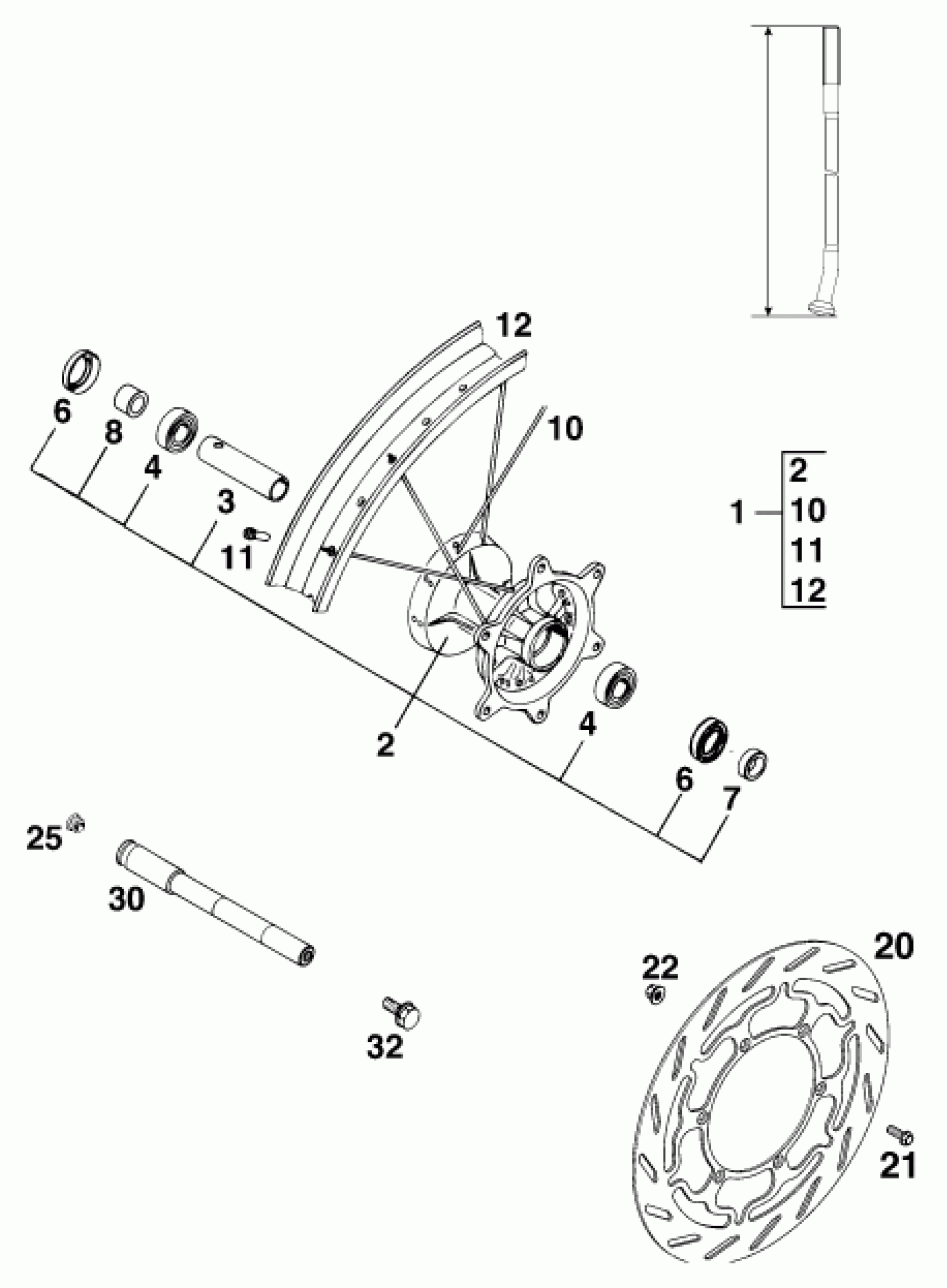

KTM 640 ADVENTURE-R <1999> FRONT WHEEL Diagram

#

Description
Price

1

% FRT WHEEL 1,6X21'' DID SX'9

56509001744

Unavailable

2

FRONT WHEEL HUB SILVER SX'94

56509010944

Unavailable

3

BUSHING SPACER TUBE 17,5X22X82

56509011400

Unavailable

4

GR.BALL BEAR. 6003-2RSH/C3HMTF

0625060037

$30.19

6

SHAFT SEAL RING 25X35X7 BTSL

0760253570

$17.20

7

SPACER RING 17X25X7,5

54609051000

Unavailable

8

SPACER BUSHING 17X25X15

54609051100

Unavailable

10

SPOKE M5X234-15G 21'' DDE

58309071234

Unavailable

11

SPOKE NIPPLE M5-TA (8X21MM)

58309072000

Unavailable

12

FRONT RIM 1,6X21'' DID

54609070200

Unavailable

20

BRAKE DISK FRONT D=300MM '96

58309060100

$287.50

21

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

22

SELF LOCKING NUT M6

56509064000

Unavailable

25

PLUG SFL13

55009086000

$2.54

30

FRONT AXLE L=235MM

50309081000

Unavailable

32

HH COLLAR SCREW M10X20 WS=17

49032011000

$5.88
