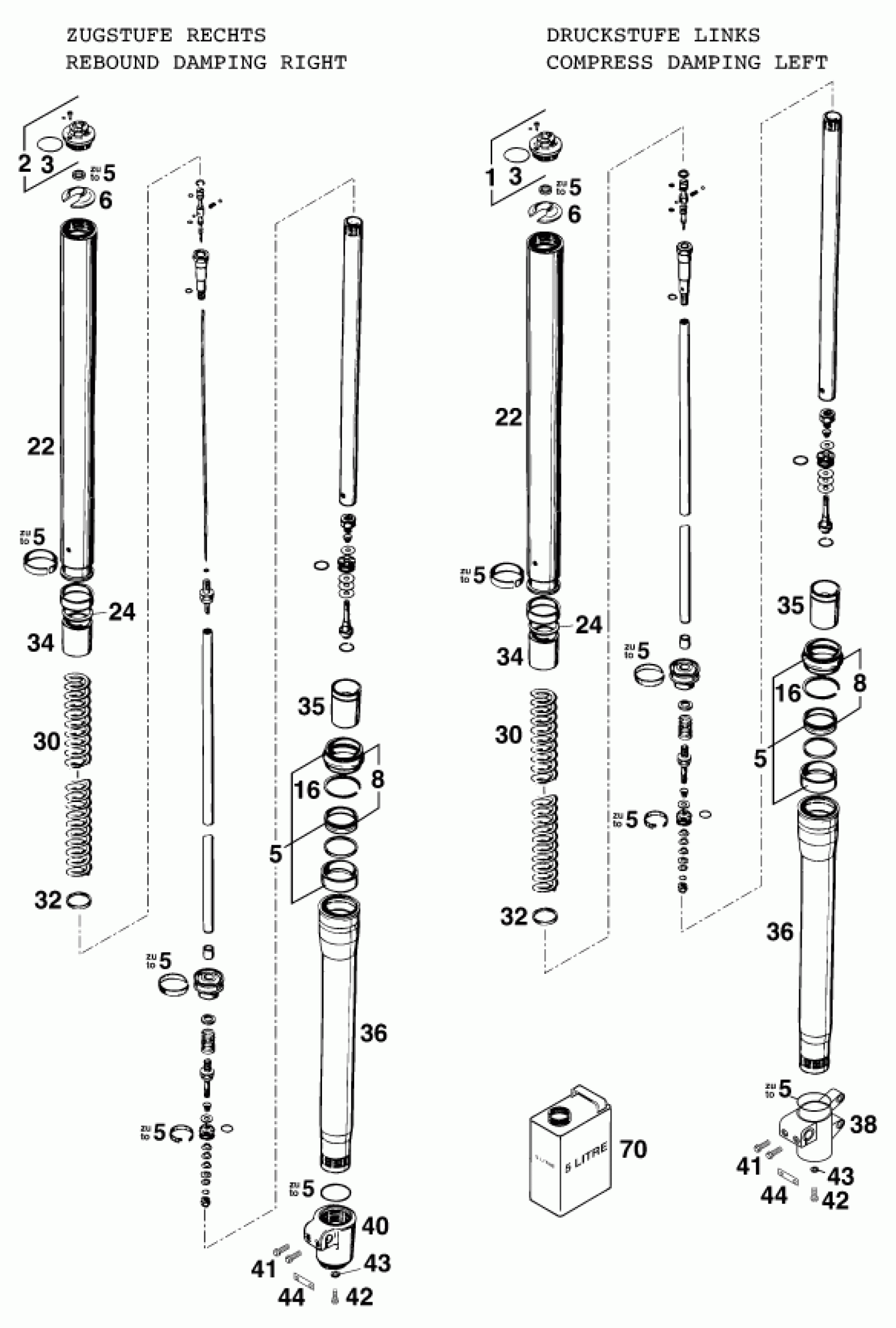

KTM 640 ADVENTURE-R <1999 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

1

* SCREW CAP CPL.COMPRESS DAMPI

58301408000

Unavailable

2

SCREW CAP CPL. REBOUND DAMPI

58301409000

Unavailable

3

O-RING 40,00X2,00 FPM 75

0770400020

Unavailable

5

% GASKET SET WITH SLIDING BUSH

58301414000

Unavailable

6

SPRING RETAINER WITH SLOT

58301423000

Unavailable

8

REPAIR KIT SHAFT SEAL RINGS

58301415000

Unavailable

16

% CIRCLIP D=50MM

58301429000

Unavailable

22

% FORK TUBE D=50MM/L=668MM '

54701003000

Unavailable

24

WASHER 32X45X2

58301419000

Unavailable

30

* SPRING 3,8 N/MM SET

54701021038

Unavailable

30

SPRING 4,0 N/MM SET

54701021040

Unavailable

30

% SPRING 4,2 N/MM SET

54701021042

Unavailable

30

* SPRING 4,4 N/MM SET

54701021044

Unavailable

30

* SPRING 4,6 N/MM SET

54701021046

Unavailable

30

% SPRING 4,8 N/MM SET

54701021048

Unavailable

32

RING 35X41,5X2,5

54701016000

Unavailable

34

BUSHING 44,5X35X80

54701022000

Unavailable

35

% SLIDING BUSH HYDRO-STOP L=73

54701018000

Unavailable

36

% OUTER TUBE L=439MM

54701004000

Unavailable

38

% AXLE CLAMP L/S 300MM M8 '9

58201006100

Unavailable

40

% AXLE CLAMP R/S EXTREME M8 '

54701007000

Unavailable

41

HH COLLAR SCREW M 8X25 WS=10

0015080253

$2.05

42

HH COLLAR SCREW M 8X20 WS=10

0015080203

$2.05

43

SEAL RING 8 X 12 X 2

58038032100

$1.49

44

* CLAMPING PLATE 13,5X42,5

58301006050

Unavailable

70

FORK OIL SAE5 5 LITER

306007

Unavailable
