FRAME

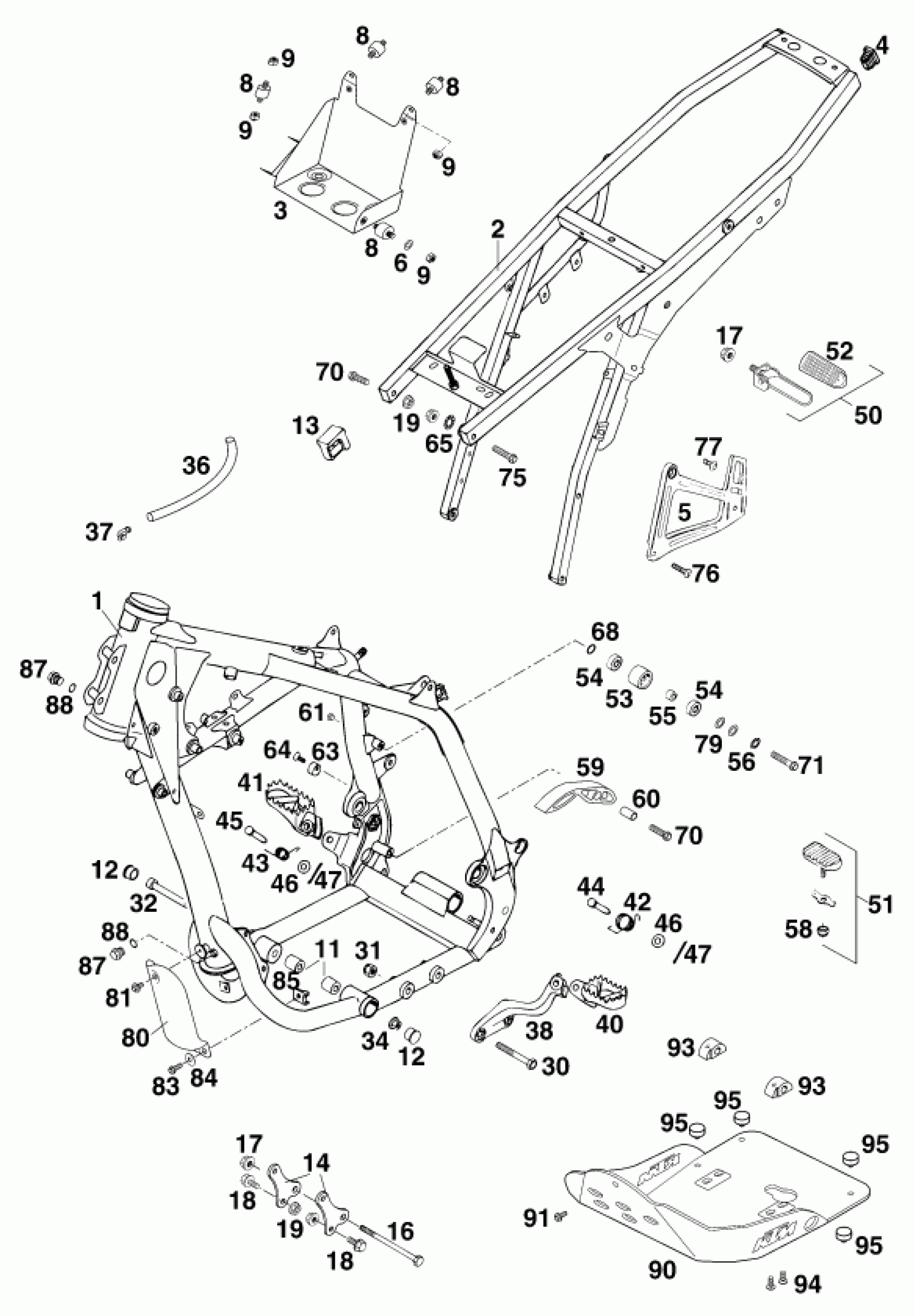

KTM 640 ADVENTURE-R <1999 FRAME Diagram
#
0
58103004200
Unavailable
0
FOOT REST REAR R/S CPL.'95
58303150044
$88.44
1
% FRAME W. OILRESERVOIR ADV. '
58203001200
$529.66
2
% SUB FRAME CPL. STEEL LC4-E '
58403002100
Unavailable
3
BRACKET FOR BATTERY LC4-E '
58403002170
$77.89
4
PLUG 12 X 17 MM
58303002090
$1.49
5
58103003200
Unavailable
6
SPRING WASHER DIN0137-B 6
0137060000
Unavailable
8
RUBBER GROMMET 20X15-M6X8-(2)
58403002010
$11.49
9
Self lock. nut DIN985-M6-A2
0985060003
$2.05
11
SPACER ROLLER 10,3X20X22
58003012000
Unavailable
12
PVC CAP D=22MM
71001012000
$3.08
13
TANK SUPPORT '93
58307015000
$5.47
14
ENGINE SUPPORT AGW '94
58303055000
$10.46
16
HH SCREW DIN0931-M10X110
0931101103
$1.82
17
flanged hex nut DIN 6927 M10 W
49009082000
$3.08
18
HH COLLAR SCREW M 8X16 WS=13
49109481052
$3.08
19
54310086000
Unavailable
30
HH SCREW DIN0931-M10X60
0931100603
Unavailable
31
SELF LOCKING NUT DIN0985-M10
0985100003
$2.05
32
AH SCREW DIN0912-M10X160
0912101603
$6.72
34
COLLAR NUT M10 WS=13
54630044000
$1.49
36
PVC-HOSE 7X10 PER METER
55007016001
Unavailable
37
ANGLE PIECE '97
50303089000
$5.23
38
FOOTREST BRACKET L/S '93
58303038000
$35.18
40
FOOTREST L/S ANTHRAZIT '98
5830304000019
$27.19
41
FOOTREST R/S '93
5460314000019
Unavailable
42
FOOTREST SPRING L/S '93
58303041000
$5.48
43
FOOTREST SPRING L/S & R/S
54603041000
$5.23
44
BOLT FOR FOOTREST
58303044000
$6.36
45
BOLT FOR FOOTREST 9,8 X 50
54603044000
$12.43
46
washer DIN 125 A 10.5
0125100003
$2.05
47
PIN DIN0094-3,2X25 STEEL
0094032253
$1.49
50
FOOTREST REAR L/S CPL. '95
58303050044
$90.01
51
FOOTREST RUBBER CPL. '94
58303045044
$18.04
52
FOOTREST RUBBER L/S&R/S DUKE95
58303051000
$15.70
53
CHAIN ROLL D=30MM
50203053000
$6.72
54
Grooved ball bearing 608 2RS C
0625006087
$21.40
55
BUSHING 8.2 X 12 X 6
74003021000
$3.08
56
TOOTHLOCK WASHER DIN6797-J 8,4
0797080003
$1.49
58
Self lock. nut DIN985-M6-A2
0985060003
$2.05
59
CHAIN SLIDING PIECE BELOW '97
51103053000
$9.15
60
BUSHING 8,2X10X20
51103053051
$4.11
61
PLASTIC CAP SFL10
54403135000
$2.05
63
BRAKE LEVER STOP '93
58303063000
$5.98
64
FLAT H.SCREW DIN7991-M6X20
0991060203
$2.05
65
CONTACT WASHER M8 VSV-K8
58411098000
$1.73
68
LOCK WASHER 8MM
36003014000
$2.05
70
HH COLLAR SCREW M 8X30 WS=10
0015080303
$3.08
71
HH COLLAR SCREW M 8X40 WS=10
0015080403
$4.11
75
HH COLLAR SCREW M 8X35 WS=10
0015080353
$4.11
76
SPROCKET SCREW-AH M 8X26
54510052000
Unavailable
77
SPROCKET SCREW-AH M8X20 WS=6
54610052000
$2.05
79
washer DIN 125 A -8.4
0125080003
$1.49
80
COVER OIL FILTER '94
58303010000
Unavailable
81
HH COLLAR SCREW M 6X10 WS=8
0014060103
Unavailable
83
HH COLLAR SCREW M 6X16 WS=8
0015060163
Unavailable
84
Washer DIN9021-A 6.4
0021060003
Unavailable
85
clip nut M6
54603048100
Unavailable
87
PLUG DIN0910-M 10X1
0910100003
$4.11
88
CU-SEAL RING 10 X 14 X 1,5
58038022900
$2.05
90
AP-ANLAGE KPL. HUSABERG
58412099000
Unavailable
91
HH COLLAR SCREW M 6X10 WS=8
0014060103
$3.08
93
ENGINE PROTECTOR BRACKET '97
58003012200
$20.47
94
HH COLLAR SCREW M 6X15 WS=8
0014060153
$3.08
95
RUBBER BUFFER
54308042000
$3.08
