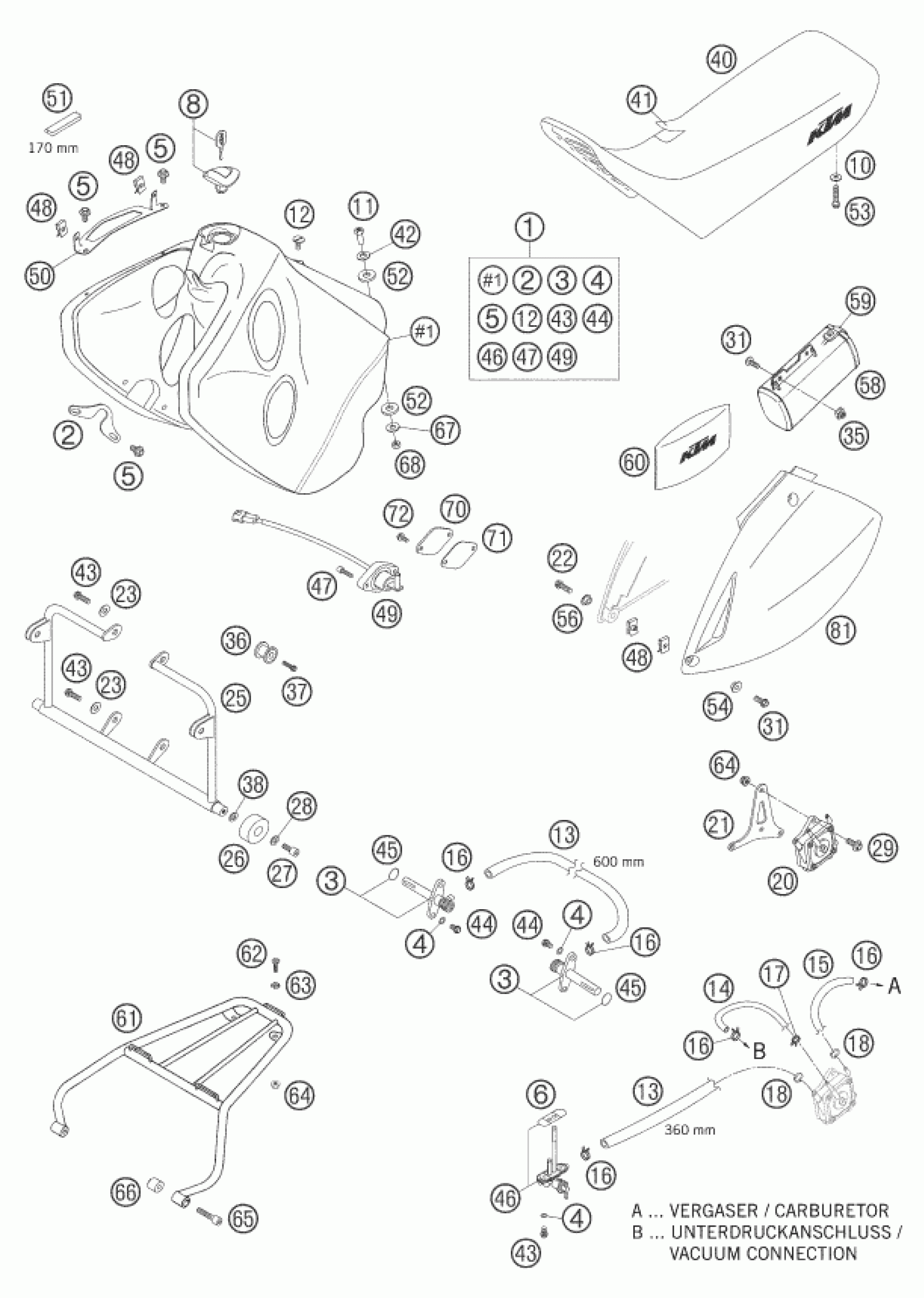

KTM 640 ADVENTURE 2007 TANK, SEAT Diagram

FUEL TANK LC4-ADV. CPL. 06

5820701333370B

$992.47

BRACKET FOR 30 LITER TANK

58507023000

$6.62

FUEL COCK CPL. SM. RALLYE'96

58507003000

$26.55

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

GASKET FUEL COCK MIKUNI

58307106100

$6.82

TANK PLUG LC4 USA '99

58407008100

$112.94

STEEL WASHER 6,2X18X2 DACROMET

50232050003

$1.49

SPECIAL NUT M8

58307014000

$6.26

OVAL HEAD SCREW M6X15

58007044000

$4.35

HOSE ID 7,5 PER METER

54435024001

Unavailable

HOSE 6X10 PER METER

58205035001

Unavailable

HOSE OG.ECO 1TBSE 7X13MM

58507116100

Unavailable

YDNAC-CLAMP 10107 10MM

58007117000

$3.08

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.08

OETIKER HOSE CLAMP 13,3MM

58007117200

$3.08

FUEL PUMP MIKUNI DF52-601 01

58512087000

$136.97

BRACKET FOR FUEL PUMP 2003

58212071300

$10.53

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

Washer DIN9021-A 6.4

0021060003

$2.05

BRACKET 30LT TANK BLACK 06

5851209200030

Unavailable

TANKROLL 13X36X16

50107015000

$4.39

AH SCREW DIN0912-M 6X16

0912060163

$1.49

WASHER DIN0125-A 6,4

0125060003

$1.49

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

SNAP-NUT HOLDER M6 KP142

50235033300

$4.11

TANK BUSHING CPL. 12 X 34 X 25

58307113250

$10.20

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

WASHER 6 X 12 X 3

12011016000

$1.49

SEAT ADVENTURE 2003

58207040500

$115.94

SEAT COVER ADVENTURE 2003

58207040550

$26.05

WASHER 10,5 X 25 X 1,5

58307019000

$2.05

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

HH COLLAR SCREW M 6X10 WS=8

0015060103

$3.08

O-RING 11X1,8 NBR 70

55007006200

$2.05

FUEL COCK CPL.MIKUNI CK-69 '96

51107004000

$69.37

AH collar screw DIN 912 M5x16

0912050163

$1.49

clip nut M6

54603048100

$4.11

GAS-LEVEL SENSOR ADV. 2002

58207080000

$85.08

MASK BRACKET R/S ADV. 01

58211001161

$15.05

MASK BRACKET L/S ADV. 01

58211001160

$20.75

EDGE PROTECTOR PER METER

58312085100

$22.52

INSOLATE WASHER 12X28X3

51005067100

$2.05

HH COLLAR SCREW M 6X35 WS=8

0015060353

$3.08

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

$1.96

BUSH FOR SPOILER 6X11X16X7,5

50308053000

$5.70

TOOL BOX CPL. '92

58012058000

$35.48

RUBBER FOR TOOL BOX '92

58012058050

$6.98

ORIGINAL EQUIPMENT TOOL KIT

58329099000

Unavailable

BAGGAGE CARRIER BLACK MIL LC4

5841201020030

$138.39

FLAT H.SCREW DIN7991-M6X20

0991060203

$2.05

WASHER 6MM

40006006000

$1.49

Self locking nut M6 - 10

56509064100

$2.05

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

BUSH FOR BAGGAGE CARRIER 2000

58412011100

$1.73

WASHER DIN9021-A 8,4

0021080003

$1.49

Hexagon nut DIN934 M8

0934080003

$2.05

COVER FOR GAS-LEVEL SENSOR

58207081000

Unavailable

GASKET FOR COVER

58207081050

Unavailable

HH COLLAR SCREW M 5X12 WS=8

0015050123

Unavailable

SIDE COVER L/S ORANGE 04

5840804100070

$55.04

SIDE COVER R/S ORANGE 04

5840804210070

$56.70
