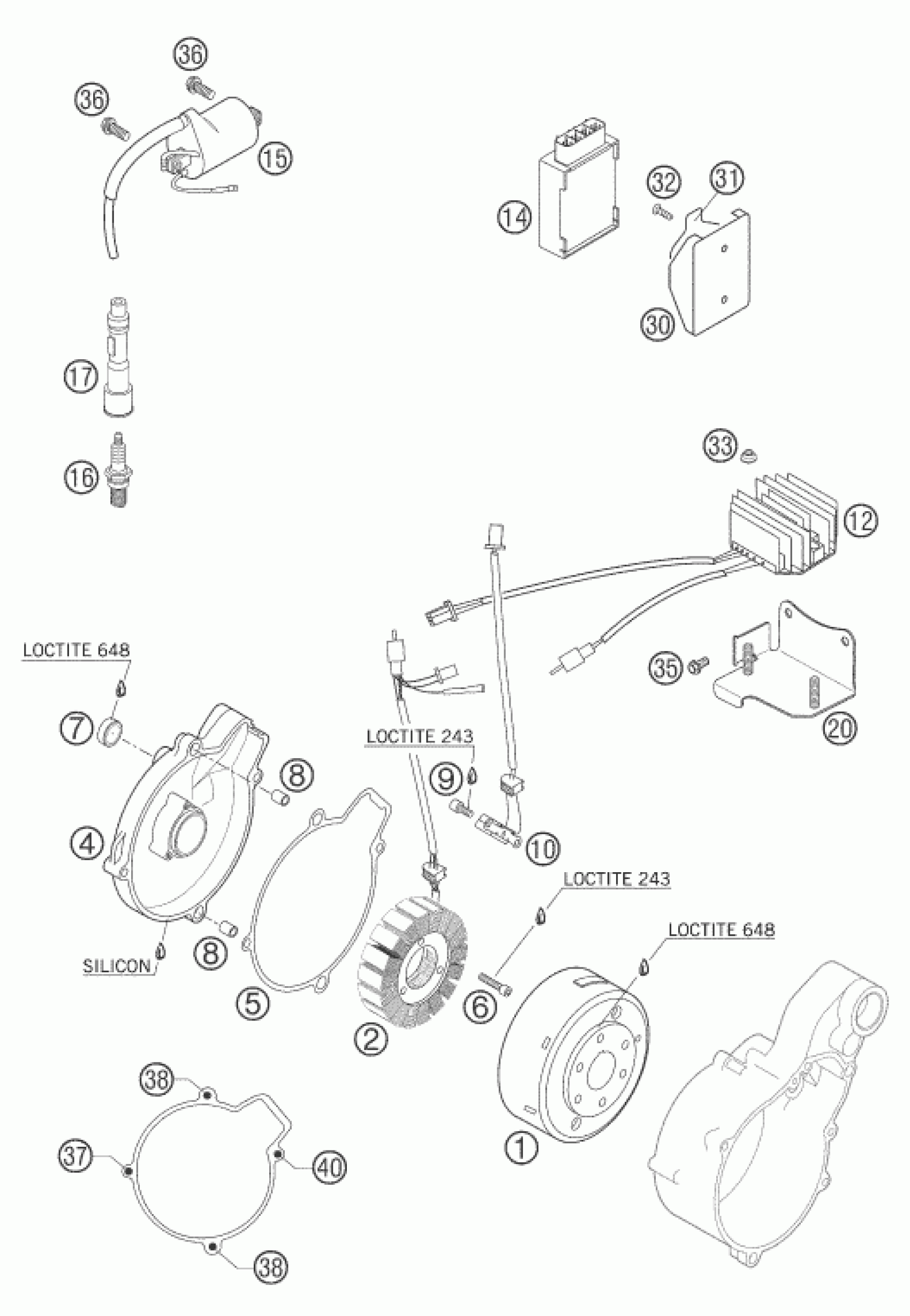

KTM 640 ADVENTURE 2007 IGNITION SYSTEM Diagram

#

Description
Price

30

RUBBER BRACKET FOR DIGI-BOX 03

58439030200

Unavailable

31

SUPPORT FOR RUBBER BRACKET 03

58439030250

Unavailable

32

SCREW FOR PLASTIC D=5X18

0017050181

Unavailable

33

Self locking nut M6 - 10

56509064100

Unavailable

35

HH COLLAR SCREW M 6X10 WS=8

0015060103

Unavailable

36

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

37

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

38

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

40

HH COLLAR SCREW M 6X80 WS=8

0015060803

Unavailable

1

FLYWHEEL KOKUSAN GP9128 '97

58439005100

Unavailable

2

STATOR KOKUSAN LOOSE '96

58439004000

Unavailable

4

IGNITION COVER CPL. GREY 03

5843000214423

Unavailable

5

IGNITION COVER GASKET '96

58430040000

Unavailable

6

AH SCREW DIN0912-M 5X25

0912050253

Unavailable

7

INSPECTION GLASS GW 20-7

58430095000

Unavailable

8

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

9

SHCS DIN 912 M5x8

0912050083

Unavailable

10

PULSER COIL

58439034000

Unavailable

12

VOLT.REGULATOR-RECTIFIER 12V

58411034100

Unavailable

14

CDI 640 ADV./ENDURO 06

58639031500

Unavailable

15

Ignition coil

58439006000

Unavailable

16

SPARK PLUG NGK DCPR8E 03

59039093100

Unavailable

17

SPARK PLUG CONNECT. 03

58439090000

Unavailable

20

BATTERY BRACKET 03

58411055200

Unavailable
