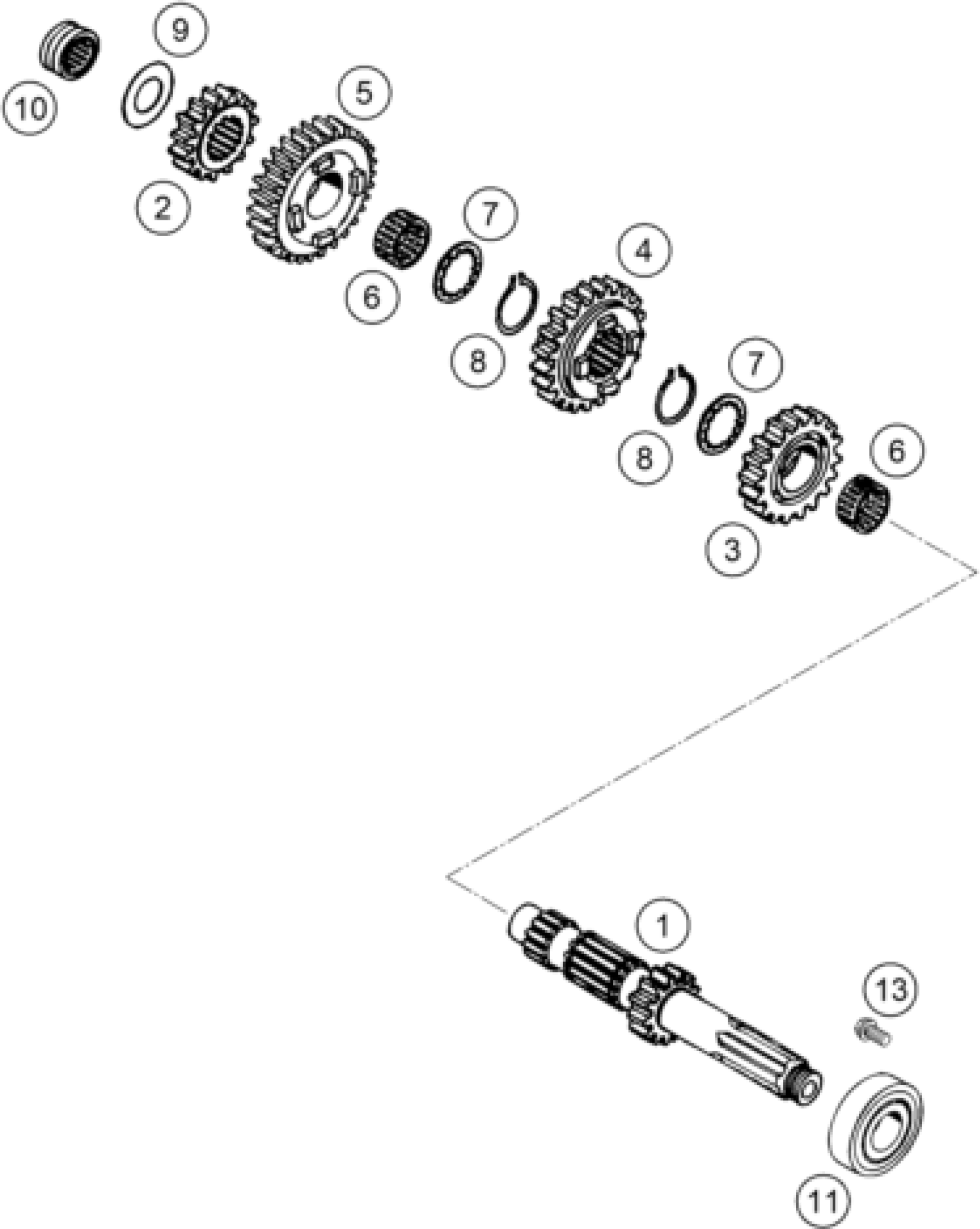

KTM 640 ADVENTURE 2005 TRANSMISSION I - MAIN SHAFT Diagram

#

Description

Price

1

MAIN SHAFT 14-T '96

58333002100

$400.88

2

SOLID GEAR 2.G 15-T (2G3)

56533010300

$118.52

3

IDLER GEAR 3.G 18-T ''02''

58333004002

$90.03

4

SLIDING GEAR 4.G 20-T ''04''

58333006004

$100.42

5

IDLER GEAR 5.G 22-T ''08''

58333008008

$97.54

6

NEEDLE BEAR. K 22X26X13 TN

0405222613

$9.15

7

STOP DISK 22,7 X 32 X 1,5

56533016300

$5.98

8

LOCK RING DIN0471-25X1,64SD

52033096000

$5.23

9

STOP DISK 20,2 X 35 X 1

56533015000

Unavailable

10

NEEDLE BEARING RNA 4902 KSE

56533093000

$21.96

11

CYL.ROLL BEARING BC1-0076A

58533025000

$144.26

13

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08
