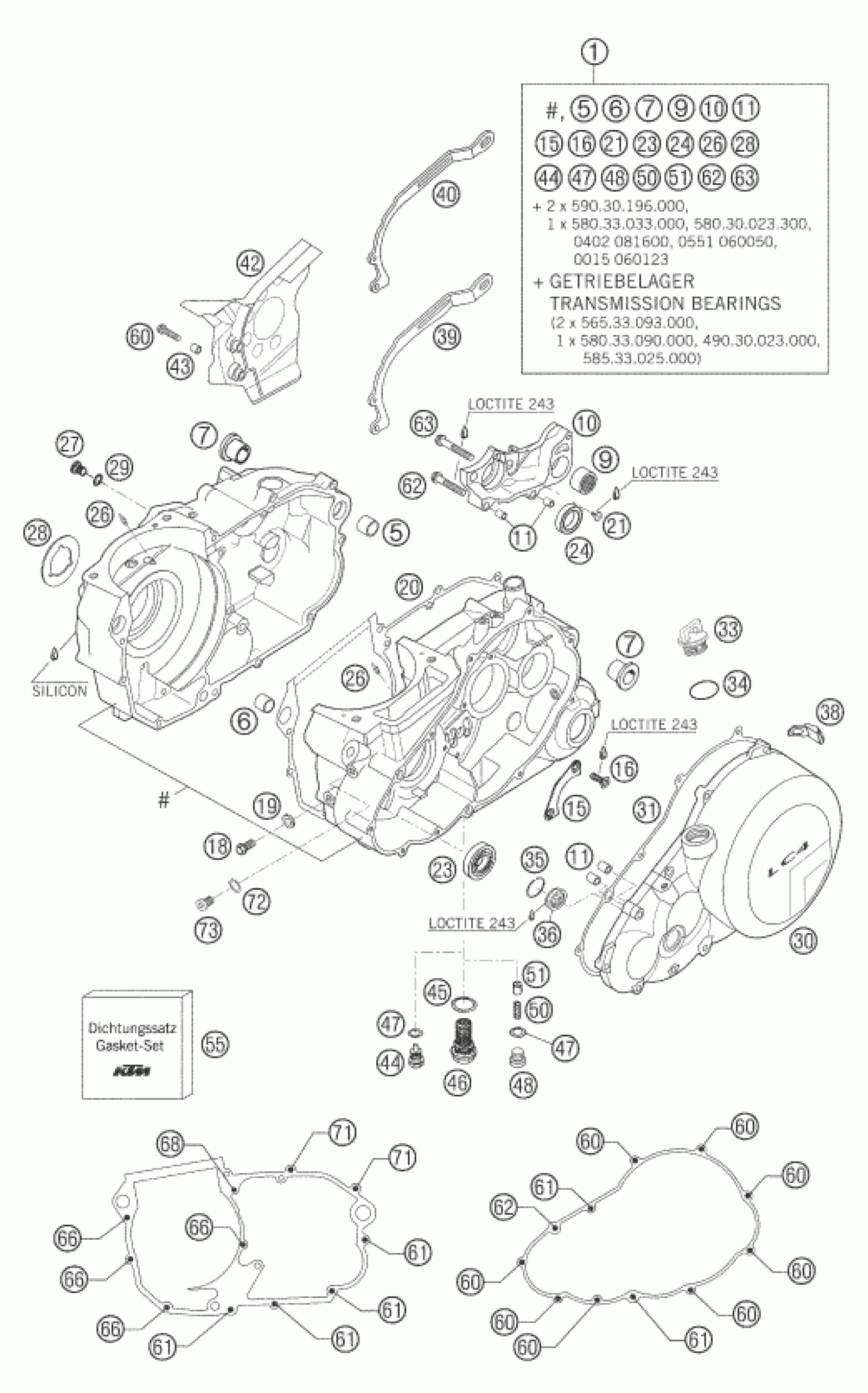

KTM 640 ADVENTURE 2005 ENGINE CASE Diagram

#

Description
Price

1

ENGINE CASE CPL.W.BEAR. LC4 05

5843000034423

$1,187.47

5

DOWEL 19 X15,1X12

50130027000

$5.30

6

DOWEL 17 X 13 X 12

51030026100

$6.44

7

CRANK CASE BUSH

50130010000

$21.78

9

NEEDLE BEARING HK 2216

58033097000

$14.02

10

SHIFT MECHANISM SUPPORT LC4'94

58330011000

$90.03

11

DOWEL 9,8 X 7 X 10

49030090000

$2.05

15

RETAINING PLATE

56530017000

$12.03

16

FL.HEAD SCR.DIN7991-M6X16

0991060166

$1.49

18

HH COLLAR SCREW M 8X16 WS=10

0015080163

$4.11

19

SEAL RING CU DIN7603- 8X12X1

0603082121

$3.08

20

ENGI.CASE GASKET POLY. 0,43

58530039300

$23.93

21

OVAL HEAD SCR. DIN7985-M 5X10

0985050103

$1.49

23

CYLIND.ROLL.NJ 203 ECP/C3 2001

0412174012

$53.15

24

BALL BEARING 61805 C3

0625618050

$43.94

26

OIL JET 70 M6X0,75 WS8 03

60030064070

$11.49

27

OIL DRAIN PLUG M10X1,5 AH-WS=6

49030029000

$5.79

28

STOP DISK 33 X 58 X 1,5

58440091000

$3.73

30

CLUTCH COVER CPL. GREY 03

5833010124423

$94.03

31

CLUTCH COVER GASKET 2001

58530025000

$21.96

33

oil plug cpl. M24x3

58030020100

$5.23

34

O-RING 19,00X3,00 NBR

0770191015

$2.05

35

CIRCLIP OIL LEVEL GLASS 03

61030019050

$1.49

36

OIL LEVEL GLASS G 1777 Y

59030019000

$21.31

38

BUMP RUBBER

58333041000

$6.62

39

CHA.DAMPERSHEET 15/16T 92MM 03

58430047200

$16.66

40

CHAIN DAMPERSHEET 17T 92MM 03

58730047100

$13.52

42

SPROCKET COVER 05

58430060100

$9.84

43

BUSHING 6,5X8X11

54613038150

$4.11

44

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

$11.30

45

CU-SEAL RING DIN7603-22X27X2

58038017100

$3.08

46

OIL DRAIN PLUG M22X1,5

58038019100

$26.97

47

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

48

threaded plug DIN 908 M12x1.5

0908120153

$4.11

50

PRESSURE SPRING L=25MM D=1MM

58038023300

$5.23

51

VALVE PISTON D=10MM

58038028000

$37.77

55

GASKET SET LC4 2003

58430099200

$269.09

60

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

62

HH COLLAR SCREW M 6X35 WS=8

0015060353

$3.08

63

HH COLLAR SCREW M 6X40 WS=8

0015060403

$3.08

66

HH COLLAR SCREW M 6X55 WS=8

0015060553

$1.49

68

HH COLLAR SCREW M 6X65 WS=8

0015060653

$2.05

71

HH COLLAR SCREW M 6X35 WS=8

0015060353

$3.08

72

COPPER Gask.DIN7603- 8.2X13X1

0603082131

$2.05

73

PLUG M8X1 DIN 908

0908080013

$3.08
