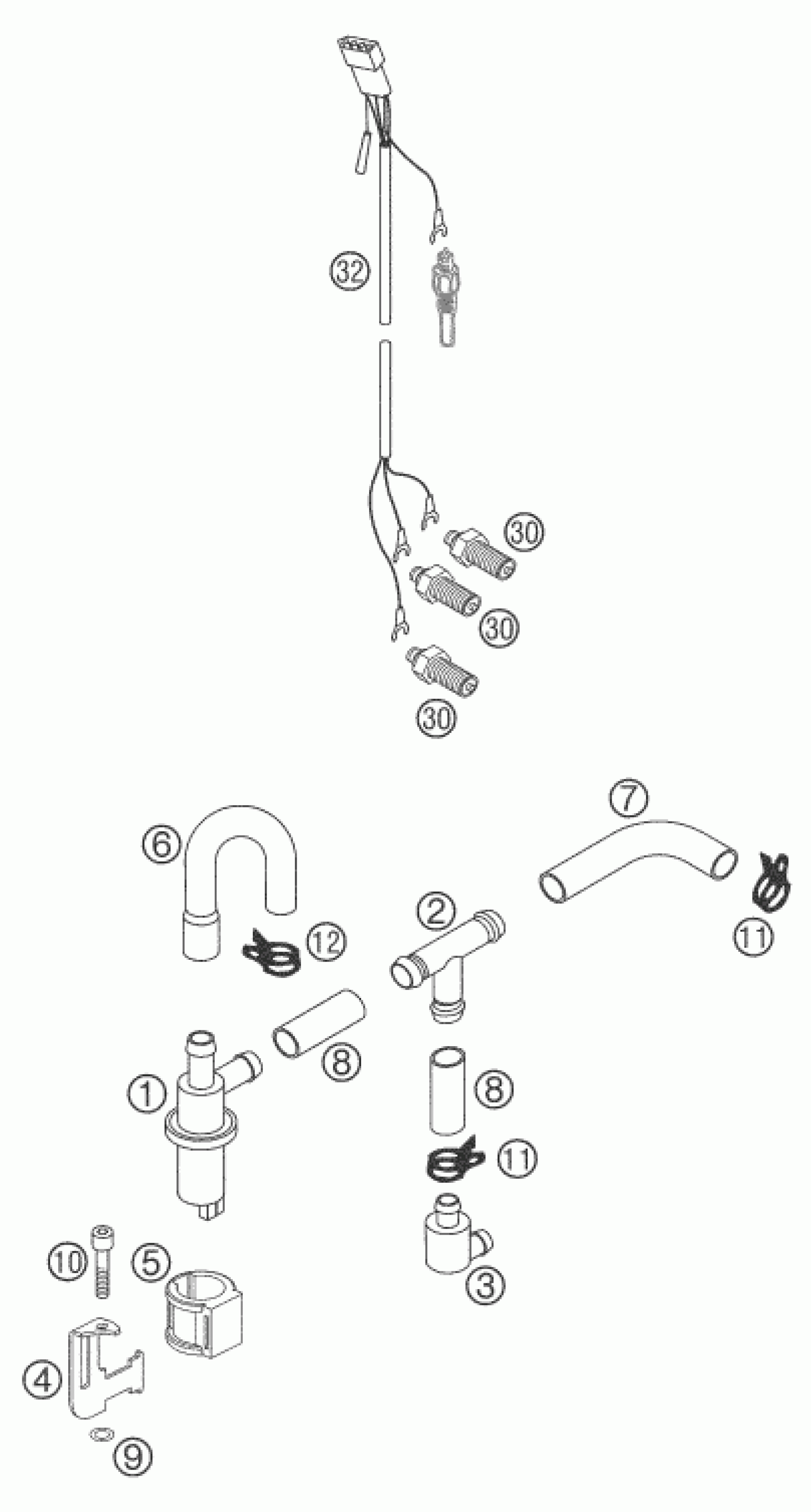

KTM 640 ADVENTURE 2005 ELECTRONIC POWER CONTROL EPC Diagram

#

Description

Price

1

MAGNETIC VALVE PIRBURG EPC '98

58431067000

Unavailable

2

T-CONNECTION 12MM LC4 '98

58431072000

$8.35

3

AIR FILTER LC4 FOR EPC 2005

58431070100

$12.97

4

BRACKET FOR MAGNETIC VALVE 03

58431069100

Unavailable

5

RUBBER SUPPORT F. MAG.VALVE 03

60031068000

$5.65

6

VACUUM HOSE FOR MAGNETIC V.'98

58431071000

Unavailable

7

ANGULAR HOSE T-CON.-CARBURETOR

58431097000

$13.11

8

TUBE 12MM T-CON.-FILTER '98

58431097100

$6.27

9

CU-SEAL RING 6 X 10 X 2

58036065100

$2.05

10

AH SCREW DIN0912-M 6X30

0912060303

$2.05

11

YDNAC-CLAMP 15MM '98

58431082000

Unavailable

12

YDNAC-clamp 10173 (16MM)

58431082100

$1.49

30

CONTACT SCREW M10 STEEL '98

58011081100

$19.35

32

WIRING HARN. EPC F. ENGINE LC4

58411085000

$7.96
