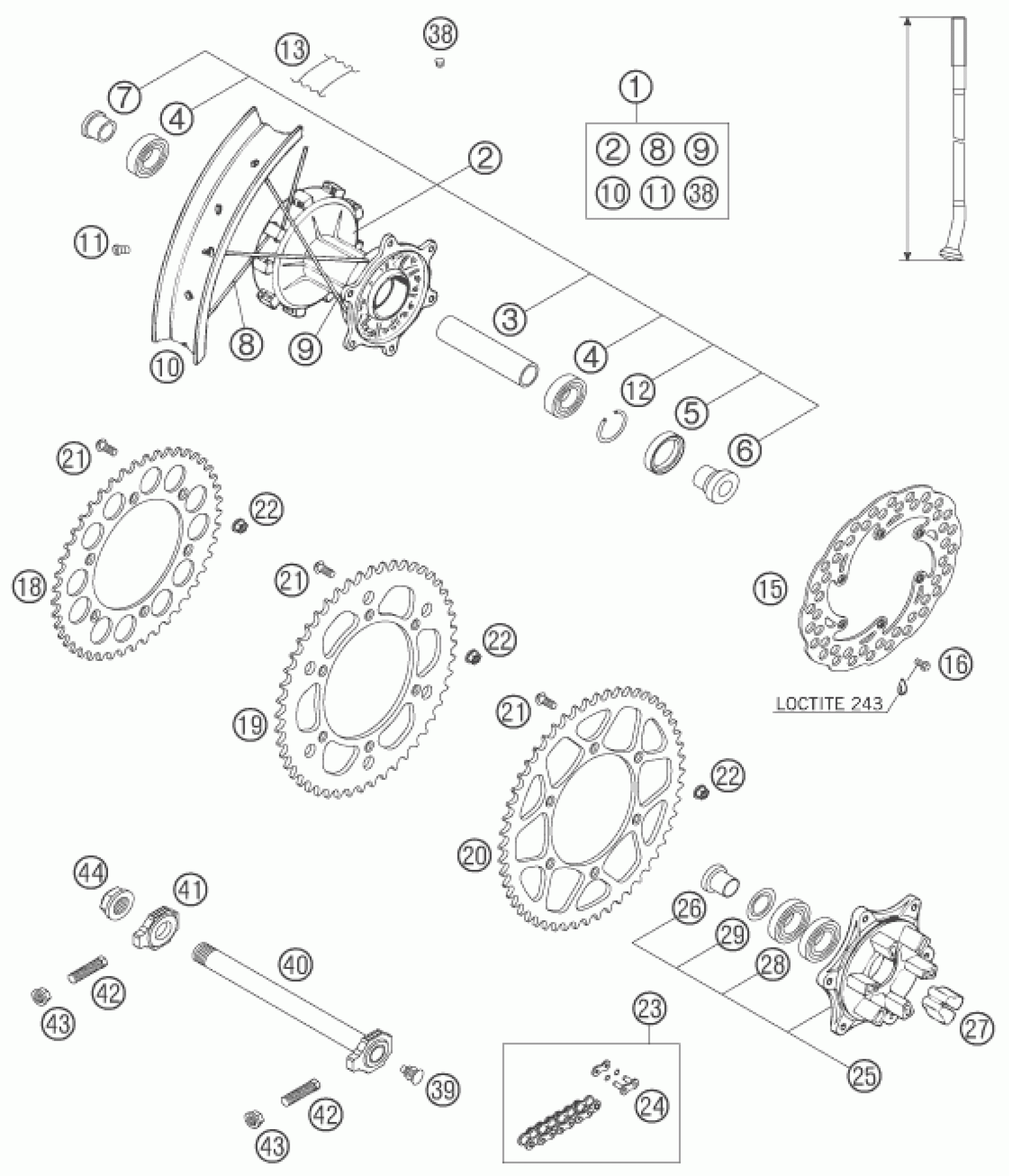

KTM 625 SXC 2007 REAR WHEEL Diagram

#

Description
Price

1

REAR WHEEL CPL. DA. 2,5X18'' 0

58410001844

Unavailable

3

BUSHING SPACER TUBE L=98,3MM

58410011000

$14.58

4

Grooved ball bear. 6205-2RSHC3

0625062052

$30.85

5

SHAFT SEAL RING 32X52X7 B

0760325272

$16.54

2

REAR WHEEL HUB DAMPED CPL. 06

5841001034491

$252.95

6

BUSHING FOR HUB

58410016000

$13.50

7

BUSHING FOR REAR DAMPED HUB 06

54610416500

$16.63

8

SPOKE M5X214-16G 18'' DDE

50310071214

Unavailable

9

SPOKE M5X192-10G 18'' DDE

50310071192

Unavailable

10

REAR RIM 2,50X18 EXCEL AL7 06

58410070200

Unavailable

11

SPOKE NIPPLE M5-TA (8X21MM)

58309072000

$2.05

12

CIRCLIP DIN0472-52X2

0472052200

$3.08

13

RIM BAND REAR 2MM 2003

58410073200

$9.44

15

BRAKE DISC REAR PERFOR. 04

80010060000

$98.26

16

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

18

REAR SPROCKET 38-T

58310051038

Unavailable

18

REAR SPROCKET 40-T

58310151040

Unavailable

18

REAR SPROCKET 42-T

58310051042

$64.97

18

REAR SPROCKET 45-T

58310151045

Unavailable

19

REAR SPROCKET 48-T

58310151048

Unavailable

20

REAR SPROCKET 50-T

58310151050

Unavailable

20

REAR SPROCKET 52-T

58310151052

Unavailable

21

SPROCKET SCREW-AH M8X26 WS=6

54510052100

$3.08

22

Self locking nut M8 10.9

54310086200

$3.08

23

CHAIN Z-RING 5/8X1/4''

50310800118

Unavailable

24

CONNECTING LINK F. 50310800118

50310366000

Unavailable

25

SPROCKET SUPPORT CPL. 06

58310050344

$133.04

26

BUSH. F.SPROCKETSUPPORT 06

58310417200

$16.07

27

Rubber damping block 91

54610459000

$8.03

28

Grooved ball bear.6005 DDU2CG2

0625060058

$18.32

29

SEAL WASHER 6005AV 06

58310018000

$4.11

38

PLUG FOR RIM

55003135000

Unavailable

39

Plug SFL16

50210086000

$3.08

40

WH. SPINDLE RE. CPL.265MM 00

50310085044

$78.91

41

Chain tension adjuster, right

50310084000

$20.66

42

screw M10x1.25x50 WS10

50304040100

$5.23

43

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

44

Hexagon nut M20x1.5

50310099000

$11.30

24

MASTER LINK FOR 50310800118

50310866000

$6.79
