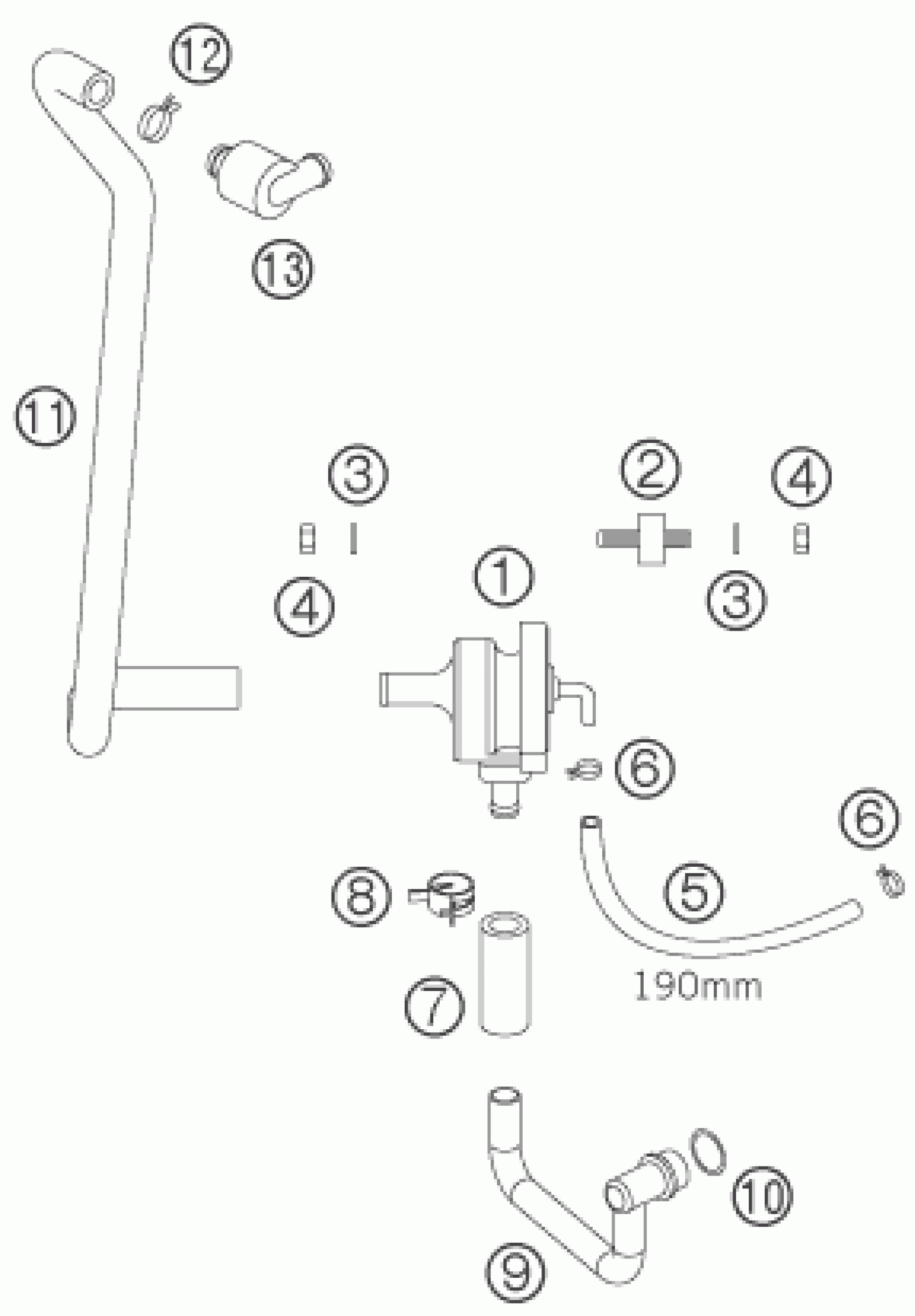

KTM 625 SXC 2006 SECONDARY AIR SYSTEM SAS Diagram

#

Description

Price

11

PREFORMED HOSE SAS 04

58405020000

$10.53

12

YDNAC-clamp 10173 (16MM)

58431082100

$1.49

1

SAS-VALVE 04

58405026100

Unavailable

2

SILENTBLOCK 20X10 M6X10/M6X16

58405021000

Unavailable

3

TOOTH LOCK WASH. DIN6797-A 6,4

0797060003

$1.49

4

Hex. nut DIN 934 M6

0934060003

$1.49

5

ND-HOSE 4X9 PER METER

58405029001

$16.01

6

YDNAC-CLAMP FUEL HOSE (8MM)

45031005000

$1.49

7

HOSE SAS-VALVE - CONNECT. TUBE

58405019000

Unavailable

8

CLAMP STD DN17

00049170121

Unavailable

9

CONNECTING TUBE SAS 04

58405027100

Unavailable

10

CU-SEAL RING 12 X 16 X 2

58436054000

$2.05

13

AIR FILTER LC4 FOR EPC 2005

58431070100

$12.97
