Description

Price

1

FRONT WHEEL CPL. 1,60X21'' 0

58409101044

Unavailable

2

FRONT HUB CPL. SILVER 06

5480901024491

Unavailable

3

BEA.SPACERTUBE 35X2 L=79,4 03

54809011000

$25.70

4

Grooved ball bearing 6906

0625069068

$34.68

6

Radial shaft seal 35X47X7 TC

0760354771

$8.69

8

SPACER BUSHING FRONT WHEEL 06

58409012000

Unavailable

10

SPOKE M4,5X228-15G 21'' DDE

50309071228

Unavailable

11

SPOKE NIPPLE M4,5X0,75 8X21

50309072000

$2.05

12

FRONT RIM 1,6X21'' EXCEL AL7

54809070000

$205.60

16

RIM LOCK VM1 (1,60'')

51009100100

Unavailable

13

RIM BAND FRONT 2MM 2003

58409073100

$7.56

17

NUT FOR WHEEL HOLDER '96

50310090050

Unavailable

20

BRAKE DISC FRONT D=260MM 03

54809060100

$223.83

21

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

25

HANDLE FOR FRONT AXLE WS=21

50309081150

$1.73

30

WHEEL SP. FRO.USD43 185MM 2001

50309081200

$36.48

32

AXLE NUT FRONT M16X1,5/WS=27

50309082100

$11.77

38

PLUG FOR RIM

55003135000

$2.05

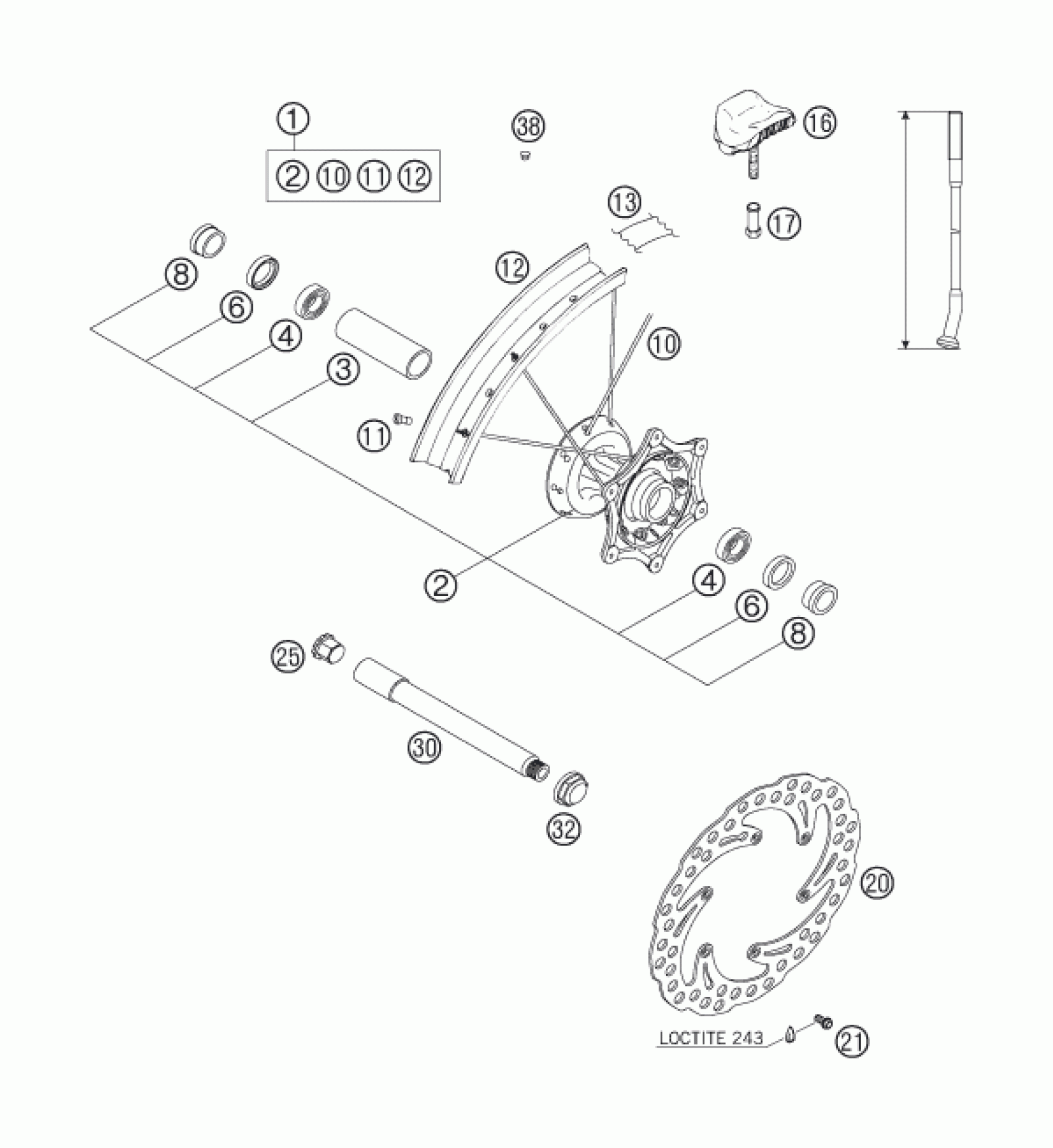

KTM 625 SXC 2006 FRONT WHEEL Diagram

FRONT WHEEL CPL. 1,60X21'' 0

FRONT HUB CPL. SILVER 06

BEA.SPACERTUBE 35X2 L=79,4 03

Grooved ball bearing 6906

Radial shaft seal 35X47X7 TC

SPACER BUSHING FRONT WHEEL 06

SPOKE M4,5X228-15G 21'' DDE

SPOKE NIPPLE M4,5X0,75 8X21

FRONT RIM 1,6X21'' EXCEL AL7

RIM LOCK VM1 (1,60'')

RIM BAND FRONT 2MM 2003

NUT FOR WHEEL HOLDER '96

BRAKE DISC FRONT D=260MM 03

SPECIAL SCREW M6X13 WS=8 10.9

HANDLE FOR FRONT AXLE WS=21

WHEEL SP. FRO.USD43 185MM 2001

AXLE NUT FRONT M16X1,5/WS=27

PLUG FOR RIM
