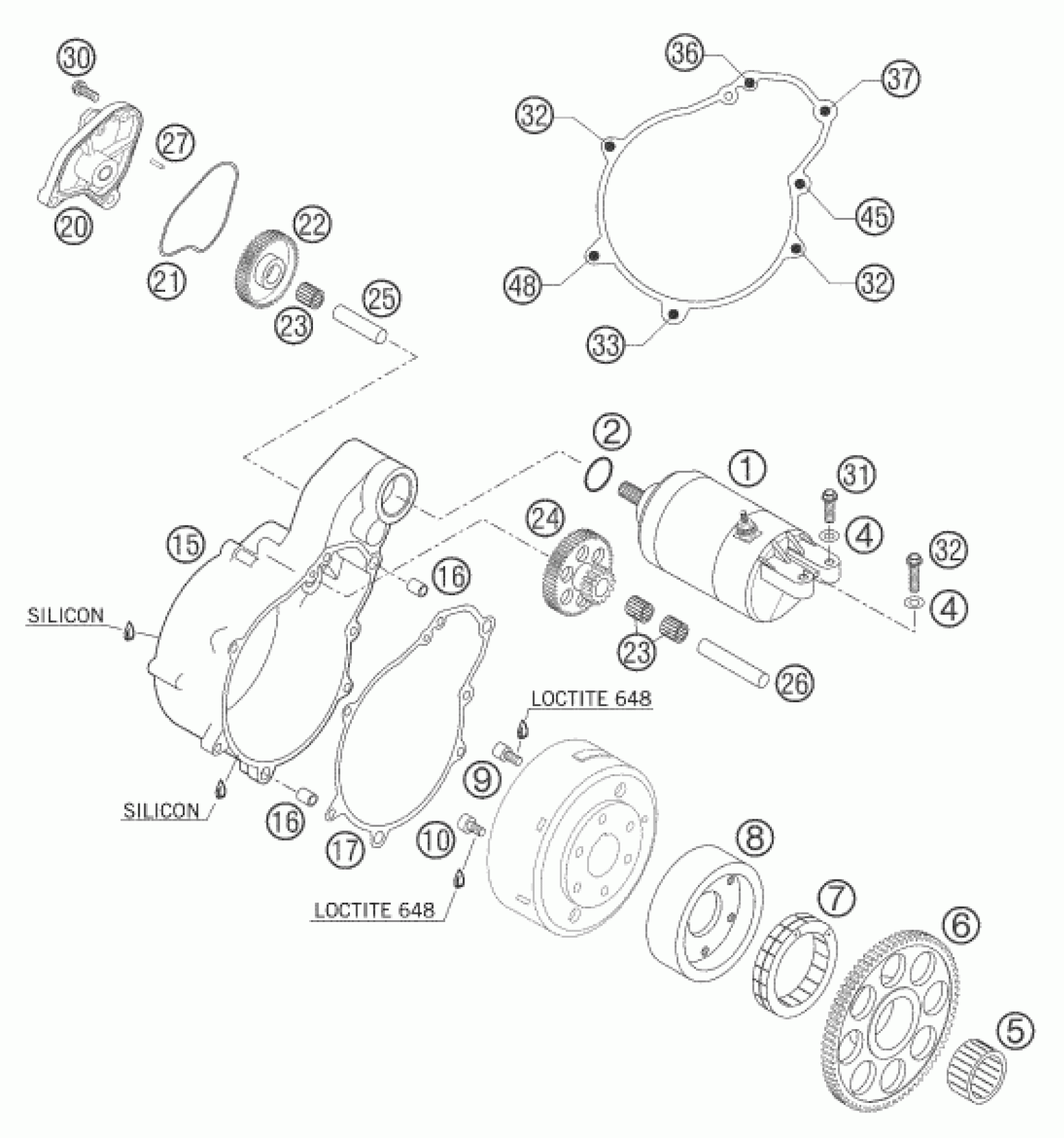

KTM 625 SXC 2006 ELECTRIC STARTER Diagram

#

Description
Price

1

E-STARTER ENGINE CPL. LC4-E

58440001000

$371.75

2

O-RING 25,00X3,00 NBR 70

0770250030

$3.08

4

WASHER DIN0125-A 6,4

0125060003

$1.49

5

NEEDLE BEARING K30 X 37 X 18 A

58440090100

$18.62

6

FREE-WHEEL-GEAR 79-T

58440020079

$174.56

7

FREE-WHEEL FWD 332008 BLS

58440026000

$116.68

8

FREEWHEEL HUB

58440025000

$77.41

9

AH SCREW DIN0912-M 6X12 12.9

0912060121

$1.49

10

AH CENTERING SCREW M6X12,5

58440098000

$9.06

15

STARTER FLANGE GREY 03

5844001010023

$103.49

16

DOWEL 9,8 X 7 X 10

49030090000

$2.05

17

STARTER FLAN.GASKET 0,5MM 2001

58540042000

$5.60

20

STARTER COVER GREY 03

5844001110023

$25.85

21

FORM RING F.STARTERCOVER NBR70

58440011050

$3.74

22

INTERMEDIATE GEAR 52-T

58440022000

$42.79

23

needle roller and cage K 10x13

58440090000

$7.94

24

REDUCTION GEAR 55-T/18-Z

58440021018

$68.84

25

BEARING BOLT 10 X 38,4

58440028000

$6.88

26

BEARING BOLT 10 X 54

58440029000

$10.37

27

NEEDLEROLL. DIN5402 NRB 4X 7,8

0402040780

$1.49

30

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

31

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

32

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

33

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

36

HH COLLAR SCREW M 6X45 WS=8

0015060453

$2.05

37

HH COLLAR SCREW M 6X50 WS=8

0015060503

$3.08

45

HH COLLAR SCREW M 6X80 WS=8

0015060803

$2.05

48

HH COLLAR SCREW M 6X95 WS=8

0015060953

$3.08
