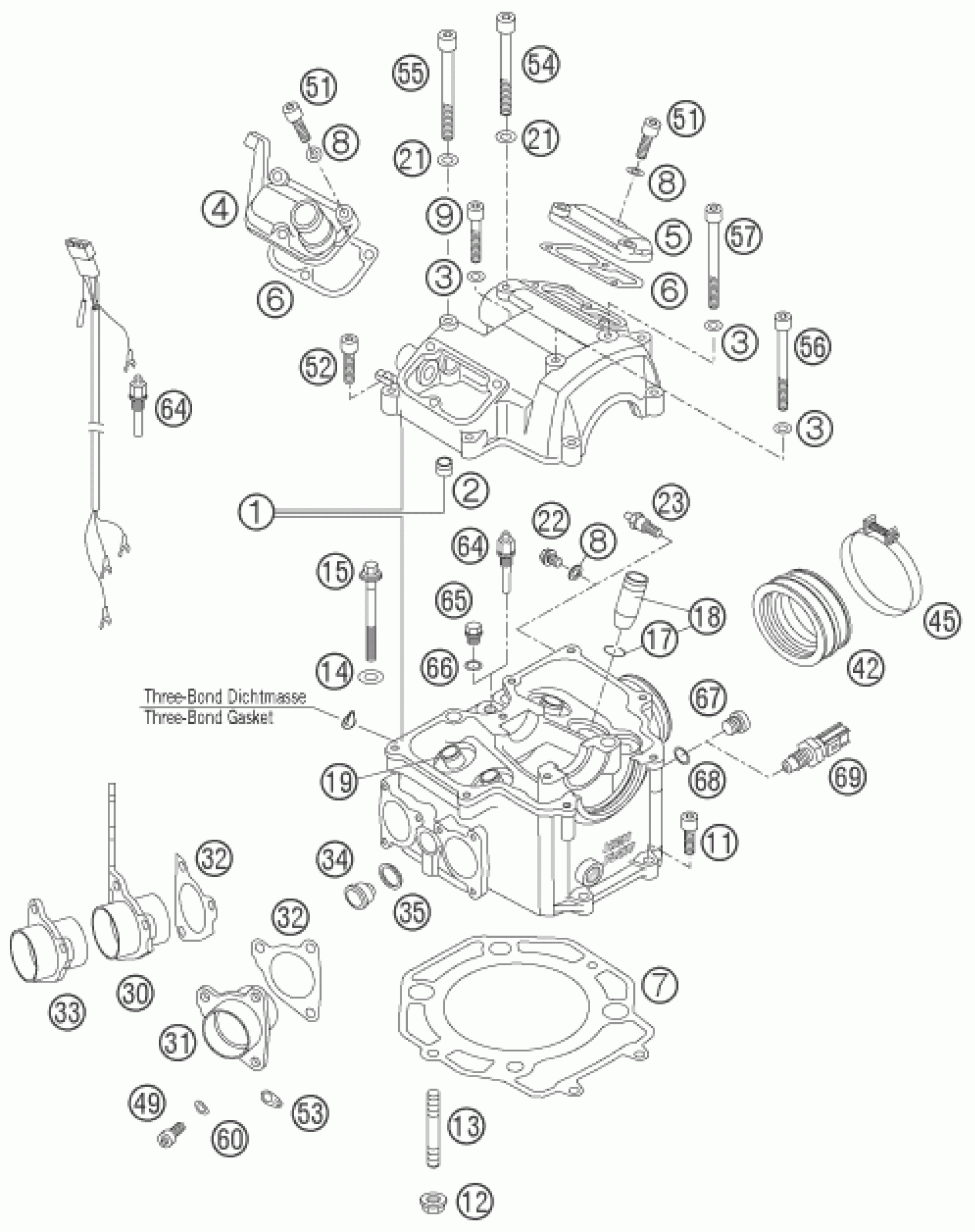

KTM 625 SXC 2006 CYLINDER, CYLINDER HEAD Diagram

#

Description
Price

1

CYL. HEAD CPL. LC4/SXC SAS 04

5843602020023

$833.58

2

DOWEL BUSHING 9,8X7,2X10

58530090000

$2.05

3

CU-SEAL RING 6 X 10 X 2

58036065100

$2.05

4

VALVE COVER FRONT '99

58036152600

$27.38

5

VALVE COVER REAR

58036052200

$12.89

6

VALVE COVER GASKET

58036053000

$4.11

7

CYLINDER HEAD GASKET 101,3 MM

58330036000

$59.36

8

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

9

AH SCREW DIN0912-M 6X35

0912060353

$2.05

11

AH SCREW DIN0912-M 6X25

0912060253

$2.05

12

COLLAR NUT M8

49030028000

$3.08

13

STUD DIN0835-M 8X40

54330043000

$4.35

14

washer DIN 125 A 10.5

0125100003

$2.05

15

COLLAR SCREW M10X80 WS=13 10.9

58036099100

$10.46

17

CIRCLIP DIN7993-RW12

0993012000

$3.08

18

VALVE GUIDE INTAKE CPL.

58036026644

$13.94

19

VALVE GUIDE EXHAUST CPL.

58036126644

$22.15

21

CU-SEAL RING DIN7603- 7X12X2

0603070122

$2.05

22

HH COLLAR SCREW M 6X8 WS=8

0015060083

$2.05

23

VACUUM CONECTION M6/3MM '97

58336020190

$5.23

30

EXHAUST FLANGE CPL. R/S SAS 04

58436039100

Unavailable

31

EXHAUST FLANGE L/S

58036140100

$19.09

32

EXHAUST FLANGE GASKET

58036041000

$4.11

33

EXHAUST FLANGE R/S 04

58036040100

$22.22

34

PLUG SAS BORE

58336024000

$4.11

35

CU-SEAL RING 12 X 16 X 2

58436054000

$2.05

49

AH SCREW DIN0912-M 6X16

0912060163

$1.49

51

AH SCREW DIN0912-M 6X20

0912060203

$2.05

42

INTAKE BOOT FOR MIKUNI CARBU.

58436044000

$33.18

42

INTAKE BOOT RALLYE 2001

58536044000

$37.11

45

CLAMP SM12/A60

56530061000

$7.40

45

CLAMP D=56MM B=9MM M4X25

59030061000

$5.23

52

AH SCREW DIN0912-M 6X25

0912060253

$2.05

53

RETAINING PLATE

51005074000

$3.08

54

AH SCREW DIN0912-M 7X55 12.9

0912070553

$7.38

55

AH SCREW DIN0912-M 7X60 12.9

0912070603

$5.80

56

SHCS DIN 912 M6x65

0912060653

$2.05

57

AH SCREW DIN0912-M 6X70

0912060703

$1.49

60

spring washer DIN 137 B - 6

0137060003

$2.05

64

TEMPERATURE SWITCH VDO

42011252000

$84.53

65

PLUG DIN0910-M 10X1

0910100003

$4.11

66

sealing ring DIN 7603 10x14x1

0603100141

$2.05

67

threaded plug DIN 908 M12x1.5

0908120153

$4.11

68

o-ring 10.00x2.00 silicone

0770100020

$2.05

69

TEMPERAT.-SENSOR WATER LC8 02

60011252000

$36.64
