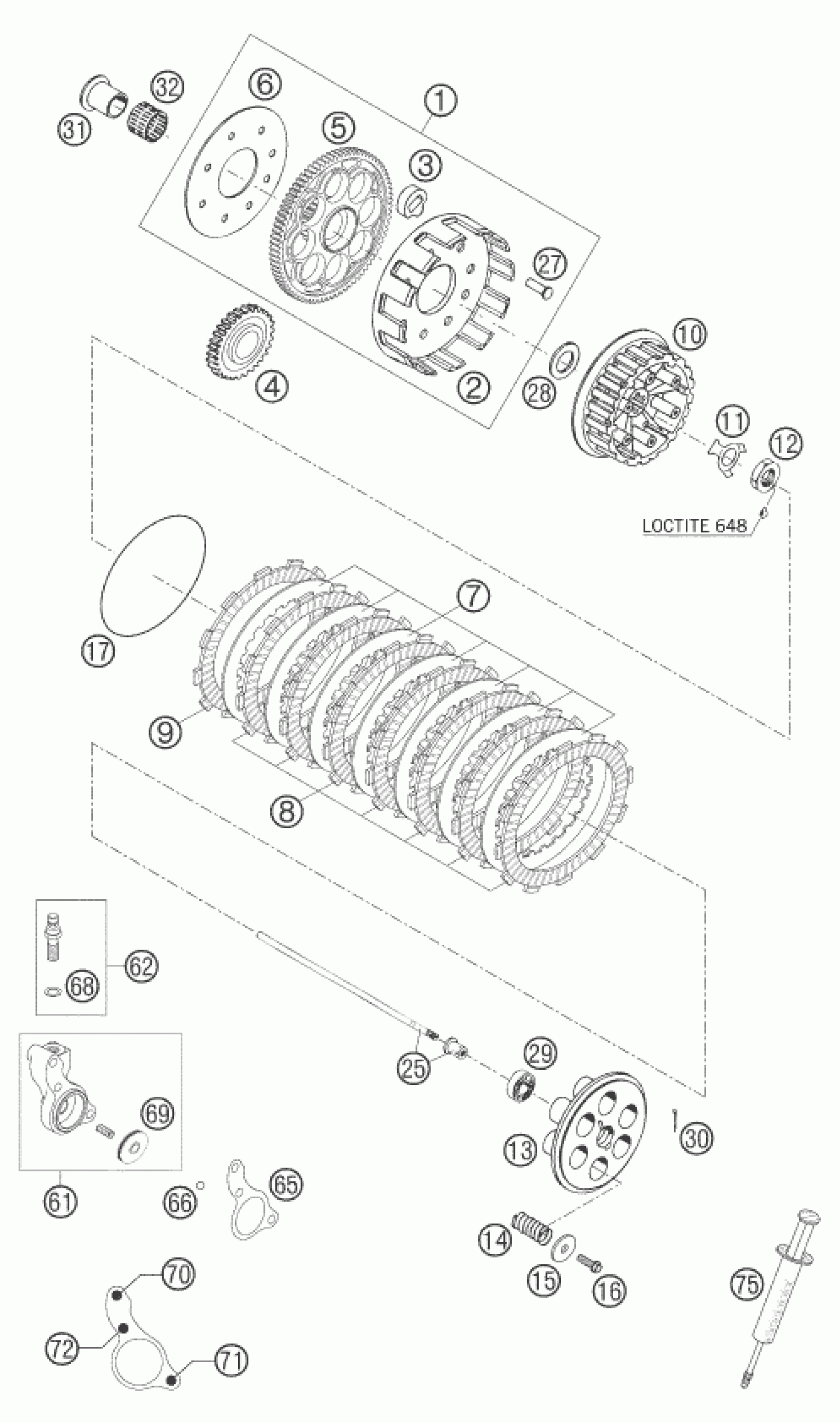

KTM 625 SXC 2006 CLUTCH Diagram

OUT.CLUTCH HUB CPL.79-T LC4 04

58432001144

$335.73

OUTER CLUTCH HUB LOOSE LC4 03

58432001000

$102.64

DAMPING ELEMENT '94

58332026000

$11.77

PRIMARY GEAR WHEEL 31-T 2001

58532000131

$66.14

CLUTCH WHEEL 79-T 2001

58532000079

Unavailable

BRACKET 57 x 132 x 1,5 '94

58332028000

$5.55

STEEL DISK 1,5 MM LC4'94

58332112000

$13.83

LINING DISK 2,7MM FCC 02

58332011300

$28.98

LINING DISK TURN OUT FCC 02

58332111300

$30.47

INNER CLUTCH HUB LC4/LC4-E 04

58332002300

$87.22

LOCK WASHER '94

58332018000

$3.85

HEXAGON NUT DIN0936-M18X1,5 R.

0936181505

$7.75

PRESSURE CAP LC4/LC4-E 04

58332003300

$35.76

CLUTCH SPRING 2,8 X 37

58332080000

$7.94

WASHER 6,5 X 20 X 2

58432081000

$3.08

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

O-RING 116,00X3,00 HNBR 70

0770116030

$8.78

PUSH ROD L=215MM CPL. 03

57332017044

$40.03

RIVET 6 X 23 X 11,2

58332007000

$4.11

SUPPORTWASHER 22,2X35X3 HARDE.

57532013000

$18.72

deep groove ball bearing 6001.

0625060016

$18.88

PIN DIN0094-2,0X16

0094020163

$1.73

INNER RING WITH COLLAR

50332070000

$49.27

NEEDLE BEARING K26X30X22ZW.KSE

56532095000

$23.83

CYLINDER CPL. 125/200'98

50332061044

$166.61

Hollow screw cmpl. M 10x1 98

50332062000

$34.96

CLUTCH RELEASE GASKET

58632065000

$6.91

BALL DIN5401-7

0401070003

$1.49

CU-SEAL RING DIN7603-10X16X1

42013226000

$2.05

PISTON W. O-RING 125/200 2000

50332066000

$89.94

AH SCREW DIN0912-M 6X30

0912060303

$2.05

AH SCREW DIN6912-M 6X16

0984060163

$2.05

AH SCREW DIN0912-M 6X25

0912060253

$2.05

VENT INJEKTION HYDR. CLUTCH

50329050000

$75.26
