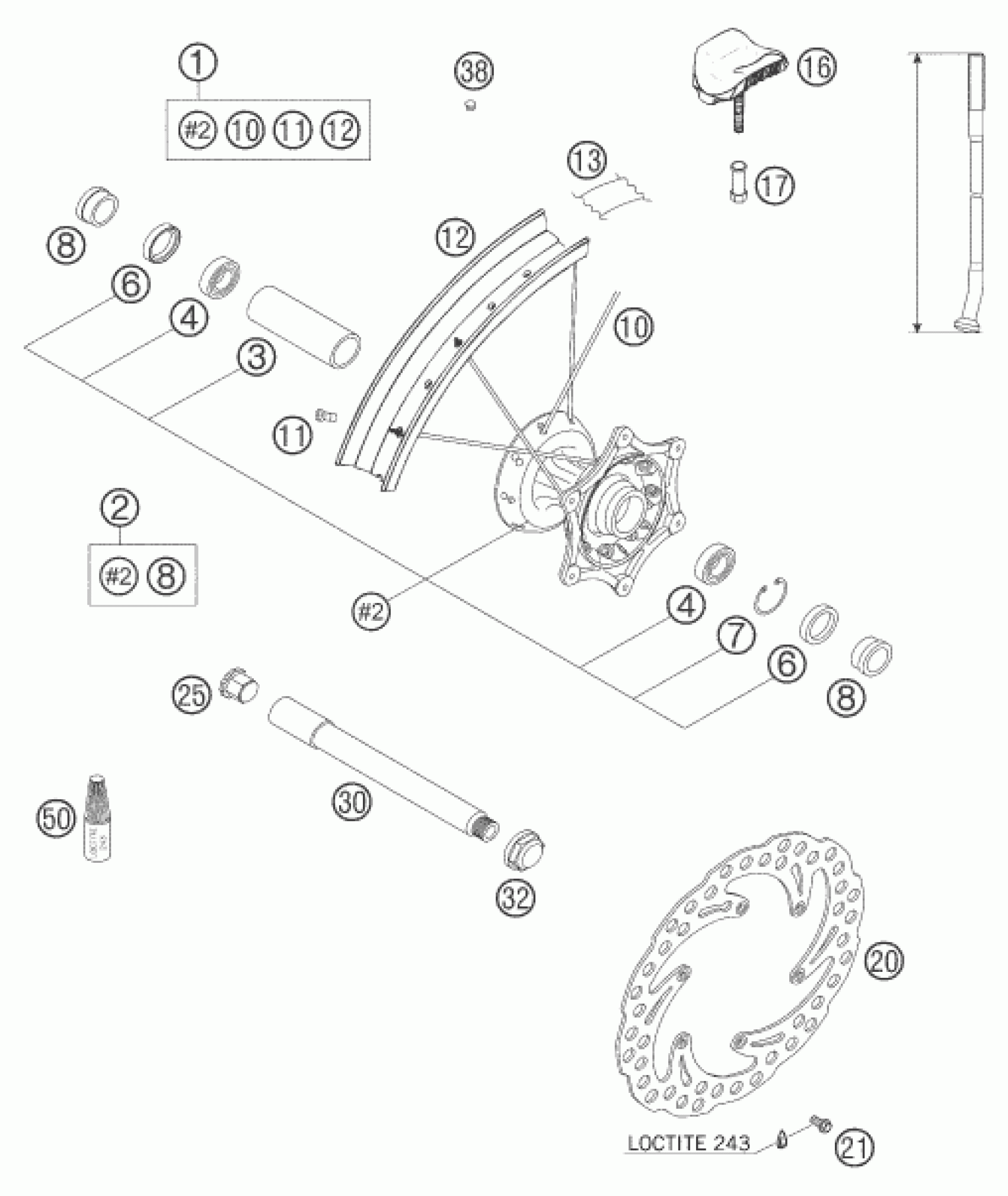

KTM 625 SXC 2005 FRONT WHEEL Diagram

#

Description
Price

1

FRT WHEEL 1,6X21'' DID EXC 00

50309001344

$273.83

2

FRONT HUB CPL. SX 2000

50309010044

$186.73

3

BEAR. SPACERTUBE 20,5X25X80,3

50309011000

$6.57

4

GR.BALL BEAR.6904 DDU2CG23S6NM

0625069047

$23.09

6

SHAFT SEAL RING 26X37X7 ASL

0760263770

$3.08

7

LOCK RING DIN0472-37X1,5

0472037154

$2.05

8

SPACER BUSHING 20X26X27,8 2000

50309012000

$7.75

10

SPOKE M4,5X230-15G 21'' DDE

50309071230

$4.11

11

SPOKE NIPPLE M4,5X0,75 8X21

50309072000

$2.05

12

FRONT RIM 1,6X21'' DID

54609070200

$205.60

13

Tube protector 21"

50309073000

$10.09

16

RIM LOCK VM1 (1,60'')

51009100100

$17.57

17

NUT FOR WHEEL HOLDER '96

50310090050

$5.23

20

BRAKE DISC FRONT D=260MM 03

54809060100

$223.83

21

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

25

HANDLE FOR FRONT AXLE WS=21

50309081150

$1.73

30

WHEEL SP. FRO.USD43 185MM 2001

50309081200

$36.48

32

AXLE NUT FRONT M16X1,5/WS=27

50309082100

$11.77

38

PLUG FOR RIM

55003135000

Unavailable

50

LOCTITE 243 BLUE 5 ML

6899785

$28.04
