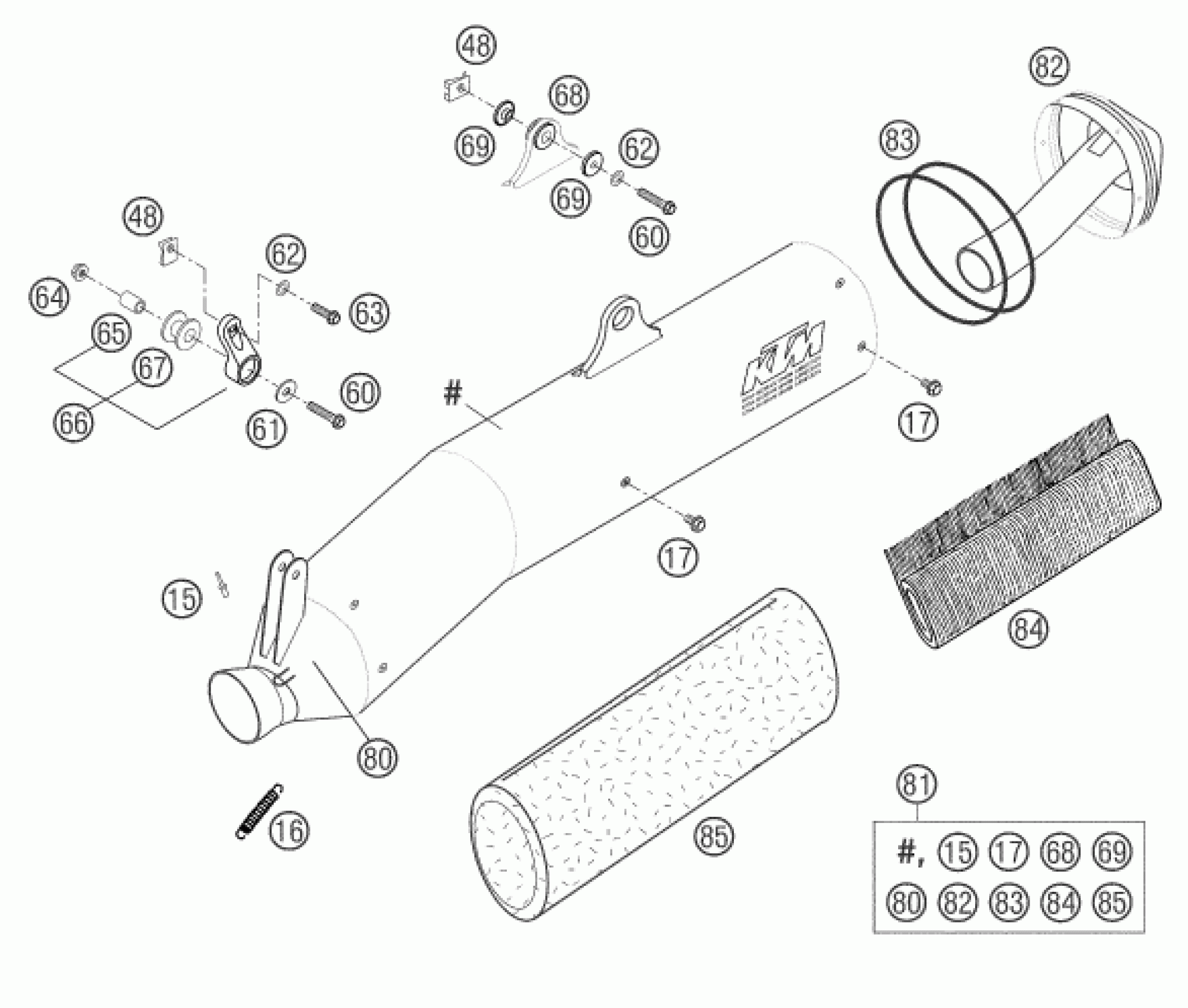

KTM 625 SXC 2004 MAIN SILENCER Diagram

DUMMY RIVET 4,8X 8,0 NIRO

0011480802

$3.08

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

$4.57

SPECIAL SCREW M 5,0X10

0009050103

$2.05

clip nut M6

54603048100

$4.11

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

Washer DIN9021-A 6.4

0021060003

$2.05

spring washer DIN 137 B - 6

0137060003

$2.05

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

Self locking nut M6 - 10

56509064100

$2.05

BUSHING 7X12X15,4

54305069000

$4.11

SILENCER BRACKET CPL. SHORT'96

58305165244

$23.81

damp. component silicone grey

54305068100

$8.31

EXHAUST BRACKET RUBBER BLACK

54605068000

$6.54

BUSHING 7,5X12X28X7,8 '96

54605069000

$6.07

SIL.-CONNECT.CAP CPL. SXC '98

58305081001

Unavailable

SILENCER SXC SPARKY 03

58305082100

Unavailable

SIL.-END CAP HUSAB. SPARKY 01

59005075353

Unavailable

O-RING 82,14X3,53 SILICONE

0770223601

$8.87

STUFFING YARN REAR 90 GRAMM'98

58305078002

$35.68

STUFFINGYARN FRT 400GRAMM'98

58305078000

$82.08
