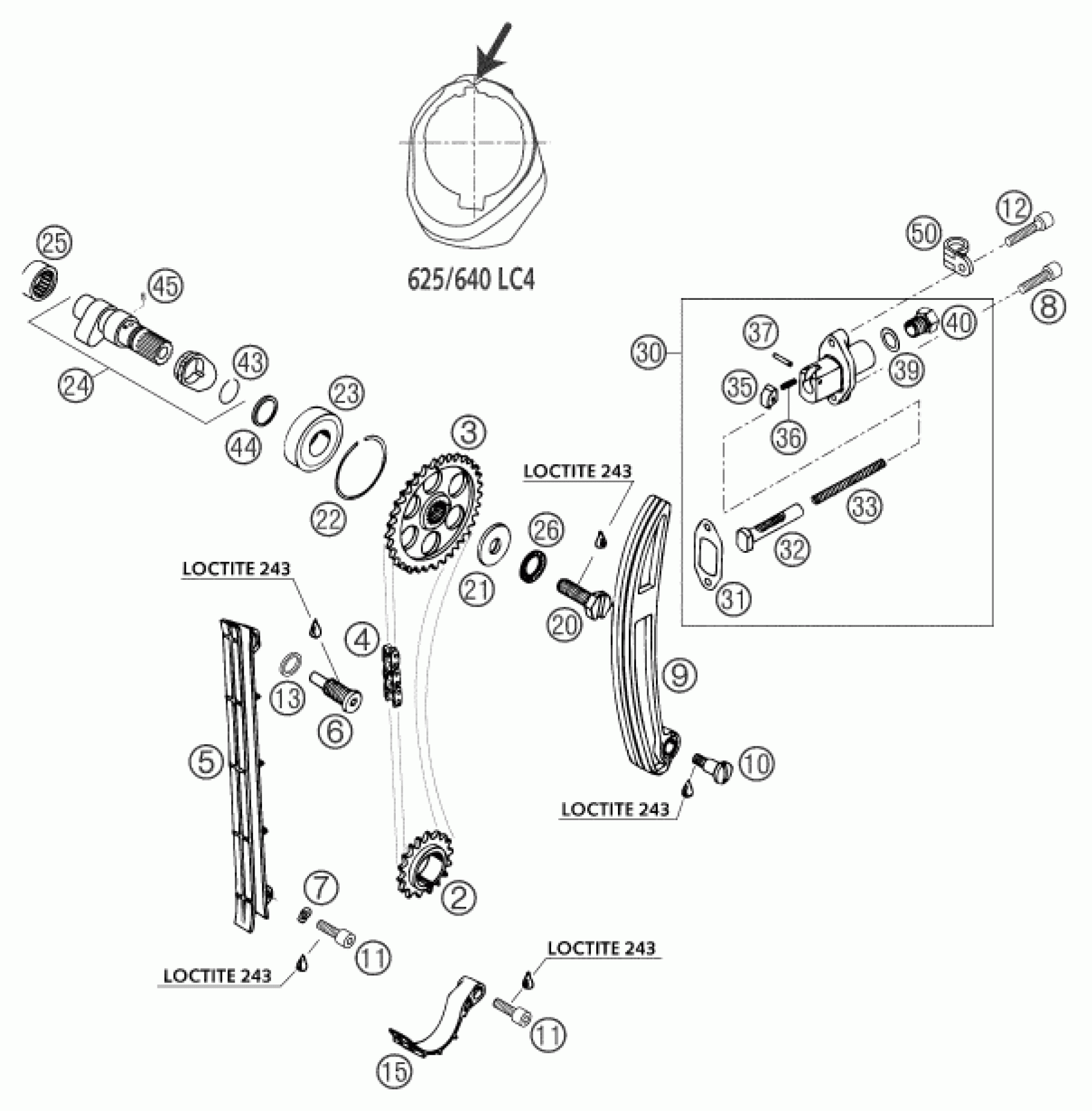

KTM 625 SXC 2004 TIMING DRIVE Diagram

CYL. HEAD CPL. LC4/SXC SAS 04

5843602020023

$833.58

DOWEL BUSHING 9,8X7,2X10

58530090000

$2.05

CU-SEAL RING 6 X 10 X 2

58036065100

$2.05

VALVE COVER FRONT '99

58036152600

$27.38

VALVE COVER REAR

58036052000

$36.15

VALVE COVER GASKET

58036053000

$4.11

CYLINDER HEAD GASKET 101,3 MM

58330036000

$59.36

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

AH SCREW DIN0912-M 6X35

0912060353

$2.05

AH SCREW DIN0912-M 6X25

0912060253

$2.05

COLLAR NUT M8

49030028000

$3.08

washer DIN 125 A 10.5

0125100003

$2.05

COLLAR SCREW M10X80 WS=13 10.9

58036099100

$10.46

STUD DIN0835-M 8X40

54330043000

$4.35

CIRCLIP DIN7993-RW12

0993012000

$3.08

VALVE GUIDE INTAKE CPL.

58036026644

$13.94

VALVE GUIDE EXHAUST CPL.

58036126644

$22.15

CU-SEAL RING DIN7603- 7X12X2

0603070122

$2.05

HH COLLAR SCREW M 6X8 WS=8

0015060083

Unavailable

VACUUM CONECTION M6/3MM '97

58336020190

$5.23

EXHAUST FLANGE CPL. R/S SAS 04

58436039100

Unavailable

EXHAUST FLANGE L/S

58036140100

$19.09

EXHAUST FLANGE GASKET

58036041000

$4.11

EXHAUST FLANGE R/S 04

58036040100

Unavailable

PLUG SAS BORE

58336024000

Unavailable

CU-SEAL RING 12 X 16 X 2

58436054000

$2.05

INTAKE BOOT RALLYE 2001

58536044000

$37.11

HOSE CLAMP GEMI 56MM 03

59030061100

$5.51

AH SCREW DIN0912-M 6X16

0912060163

$1.49

AH SCREW DIN0912-M 6X20

0912060203

$2.05

AH SCREW DIN0912-M 6X25

0912060253

$2.05

RETAINING PLATE

51005074000

$3.08

AH SCREW DIN0912-M 7X55 12.9

0912070553

$7.38

AH SCREW DIN0912-M 7X60 12.9

0912070603

$5.80

SHCS DIN 912 M6x65

0912060653

$2.05

AH SCREW DIN0912-M 6X70

0912060703

$1.49

spring washer DIN 137 B - 6

0137060003

$2.05

PLUG DIN0910-M 10X1

0910100003

$4.11

sealing ring DIN 7603 10x14x1

0603100141

$2.05

threaded plug DIN 908 M12x1.5

0908120153

$4.11

o-ring 10.00x2.00 silicone

0770100020

$2.05
