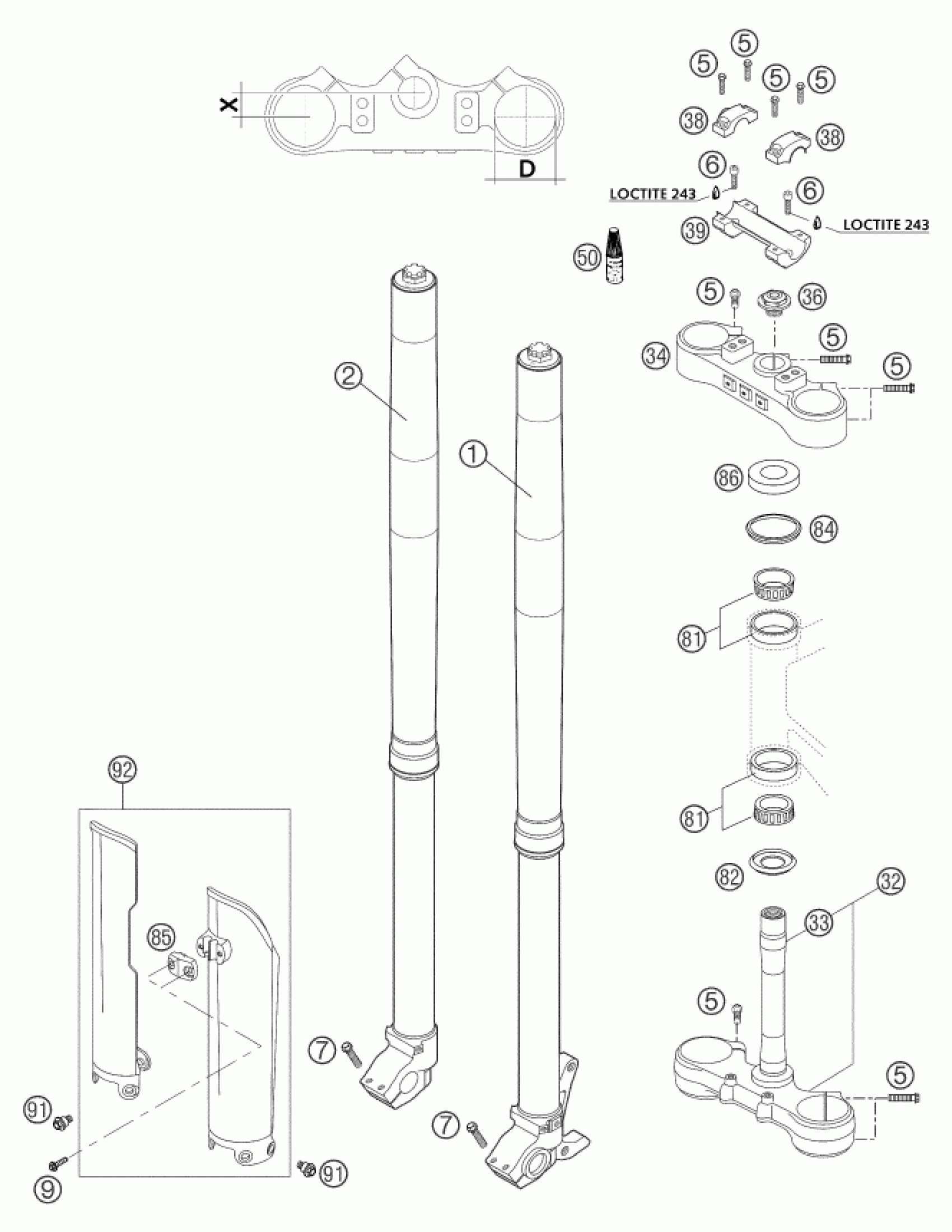

KTM 625 SXC 2004 FRONT FORK, TRIPLE CLAMP Diagram

FORK LEG L/S MXMA D=43MM 04

0518Y736LS

Unavailable

FORK LEG R/S MXMA D=43MM 04

0518Y736RS

Unavailable

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

AH SCREW DIN6912-M10X25,10.9

0912100250

$4.11

HH COLLAR SCREW M 8X25 WS=10

0015080253

$2.05

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

BOT.TRIP.CL.CPL. X=20MM/D=57M

59001132220

$285.35

FORK TUBE L=244 '91

50101033100

$85.17

TOP TRIPLE CLMP X=20MM/D=54MM

59001034120

$182.13

STEER.HEAD SCREW M20X1,5 WS=27

50301036000

$10.38

HANDLEBAR CLAMP D=28MM 2000

59001038200

$27.76

HANDLEBAR SUPPORT 28MM SC'99

59001039100

$147.25

LOCTITE 243 BLUE 5 ML

6899785

$28.04

TAPERED ROLLER BEARING CPL.

54201081000

$51.04

O-RING SUPPORT W. SEALING LIP

54601084100

$19.35

STEARING HEAD GASKET TOP

54601184000

$7.10

CLAMP F.SPEED.CABLE D=6MM 2001

59001085100

$3.08

STEERING HEAD COVER

54201086000

$8.50

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

FORK PROTECT L/S+R/S BLACK 02

5900109400030

$40.20
