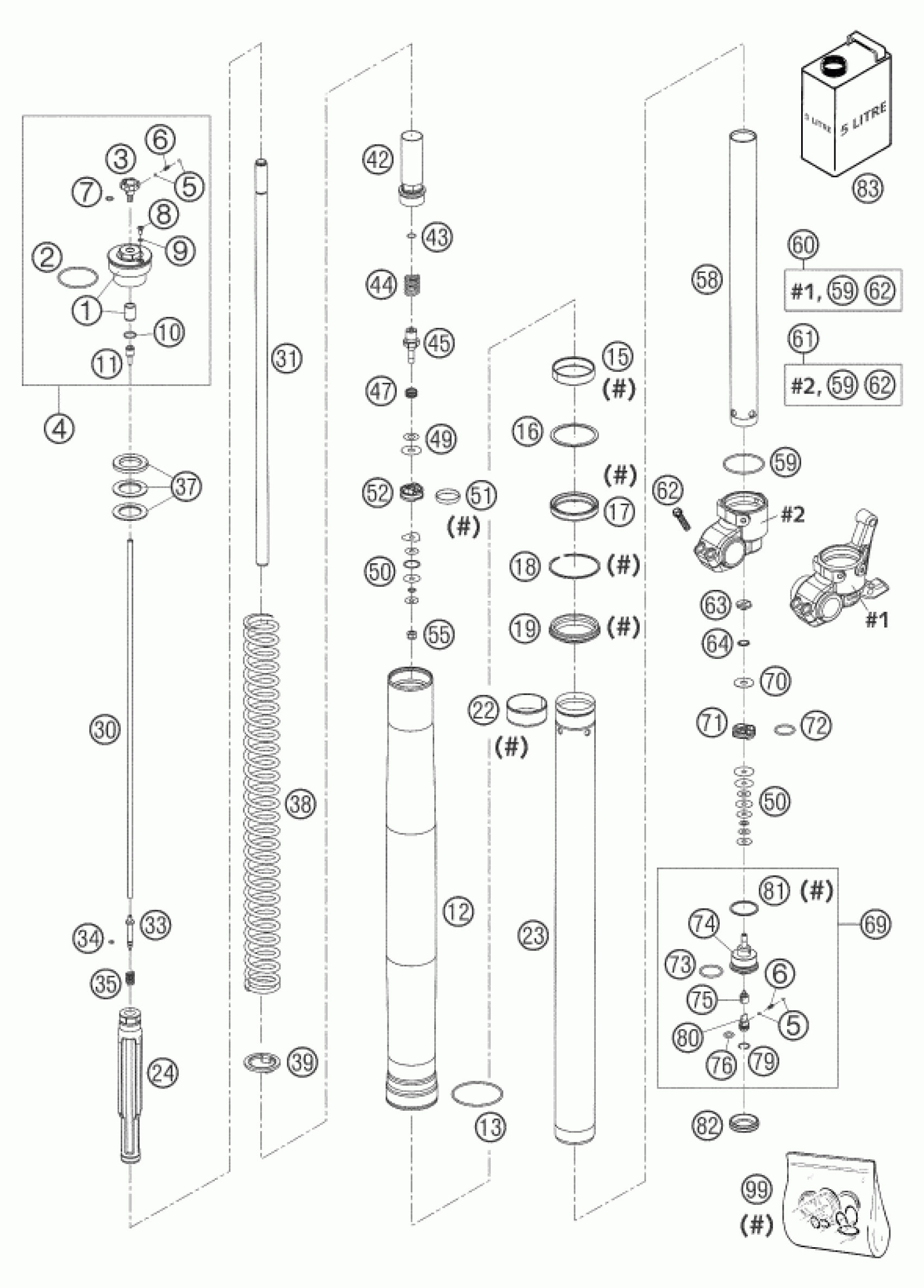

KTM 625 SXC 2004 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

1

SREW CAP+BUSH M51X1,5

48600020S

$39.06

2

O-ring 45x2 NBR70 siliconized

46810340

$1.49

3

Adjuster rebound

48600018

$4.11

4

SCREW CAP M51X1,5 CPL.

48600020S1

$98.26

5

Steel ball d3

40540603

$1.49

6

Spring (1,7) l7,9

48600028

$3.08

7

O-ring 6x1,5 NBR70

48600044

$1.49

8

Cross flat head screw M4x6

48600058

$1.82

9

O-ring 3,7x1,6 NBR70

48600009

$1.49

10

O-ring 12x1,5 NBR70

48600043

$2.05

11

Tube tap d4x25

48600019

$3.08

12

OUTER TUBE L=577 D=54/57 03

43570211

$579.70

13

Round-wire snap ring 53x2

43570099

$26.45

15

pilot bushing 43x47x12

43570204

$11.68

16

Supportwasher 45x52,5x1,5

43570092

$20.09

17

Seal ring 43x52,9x9,5

43570201

$16.63

18

Snap ring SB53x1,5 acc drawing

43570008

$3.08

19

Dirtscarper NOK 43mm

43570202

$16.73

22

Guide bushing 42x44x20

43570203

$11.40

23

INNER TUBE D=43MM L=585MM

43570221

$227.17

24

HYDR.STOP L=200MM D=27,5 CPL

43570142S

$46.36

30

ADJUSTMENT TUBE L=512MM

48600014

$13.78

31

PISTON ROD D=14 L=546 M11X1

48600250

Unavailable

33

Needle 6x42,6 rebound

48600189

$34.68

34

O-ring 3x1,5 NBR70

48600046

$1.49

35

Spring (7,2) 4-23 needle

48600033

$5.23

37

Preload bush 42x26,5x2,5

48600036

$2.05

37

Preload bush 26,5x42x5

48600037

$4.11

37

Preload bush 26,5x42x1,5

48600053

$4.11

38

SPRING 4,0 N/MM SET D=4,75MM

95010002S

Unavailable

38

SPRING 4,2 N/MM SET D=4,9MM

95010003S

$143.79

38

SPRING 4,4 N/MM SET D=4,9MM

95010004S

Unavailable

39

Spring retainer 33,5x38,2x3

43570131

$18.04

42

SCREW SLEEVE M29,3X1 L=65 CPL.

48600200S

$122.17

43

O-ring 8x1,25 NBR70 siliconize

48600239

$1.49

44

REBOUND SPRING D=15MM L=34,5MM

48600192

$14.87

45

Tap 6x45 rebound

48600203

$8.37

47

Spring (11,7) 1,5-8 valve

35480377

$2.05

49

CHECK VALVE 8X24X0,1

48600062

$2.05

49

CHECK VALVE 8X18X0,1

48600068

$2.05

49

Shim 8x20x0,10

48600215

$2.05

49

Shim 8x22x0,10

48600216

$2.05

50

Shim 6x24x0,10

48600063

Unavailable

50

Shim 6x22x0,10

48600064

Unavailable

50

Shim 6x20x0,10

48600065

Unavailable

50

Shim 6x24x0,10 delta

48600116

Unavailable

50

SHIM 6X22X0,1 DELTA

48600139

Unavailable

50

Shim 6x14x0,10

40540401

Unavailable

50

Shim 6x16x0,10

40540402

Unavailable

50

Shim 6x18x0,10

40540403

Unavailable

50

SHIM 6X16X0,25

40540414

Unavailable

50

SHIM 6X18X0,25

40540415

Unavailable

50

Shim 6x10x0,30

40540447

Unavailable

50

Shim 6x11x0,30

40541391

Unavailable

51

Pistonring 26x28x5

48600060

$5.23

52

Piston 6,05x27,65x12 rebound

48600042

$11.78

55

Nut M6x0,5 h6,5 WAF10 rebound

40540486

$4.11

58

TUBE 29,3X1X390 D=8,5MM

48600081

$155.20

59

O-ring 41x2 NBR70 siliconized

43570023

$13.55

60

AXLE CLAMP L/S CPL. 04

43570124S

Unavailable

61

AXLE CLAMP R/S CPL. USD 43 04

43570123S

$185.04

62

HH COLLAR SCREW M 8X25 WS=10

0015080253

$2.05

63

Nut valve M6x0,5 h6,5 WAF17

48600163

$3.08

64

Spring (8,5) l6,5 valve

48600202

$2.05

69

TAP COMPRESSION CPL. 03

48600152S1

$37.67

70

Shim 8x24x0,40

48600061

$2.05

71

Piston 6x27,8x9 compression

48600047

$9.81

72

O-ring 21x2 NBR70

46811499

$1.49

73

O-ring 24x2 NBR70

35480320

$1.49

74

TAP COMPRESSION

48600152

$37.67

75

Needle 10x11,6 compression

48600190

$13.64

76

O-ring 8x2 NBR70

48600049

$1.49

79

Round-wire snap ring 12x1 DIN7

48600051

$3.08

80

Adjustment screw slot compress

48600034

$7.35

81

Copper disc 29,5x33,5x1

48600004

$4.11

82

Rubber cap 35x10 NBR80

48600141

$4.11

83

FORK OIL SAE 5

48600211S1

Unavailable

99

REPAIR-KIT GASKET 4357 MXMA 03

R510

$138.46
