Description

Price

1

EXHAUST PIPE R/S 03

58405008500

$161.01

2

EXHAUST PIPE L/S 03

58405007400

$90.30

3

COLLECTOR CLAMP D=41MM 03

58405058100

$32.16

4

GRAPHIT RING 34X39X20MM 03

58405005100

$13.64

5

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

$4.57

6

BRACKET-PRE-SIL.CPL SILVER '99

5830506504490

Unavailable

7

damp. component silicone grey

54305068100

$8.31

8

BHCS ISO 7380 M6X18

0738060181

$2.05

9

HH COLLAR SCREW M 8X35 WS=10

0015080353

$4.11

10

INSOLATE WASHER 8,5X28X3

51005067000

$2.05

11

RANGE CHANGE METAL NUT M8

54603048000

$4.11

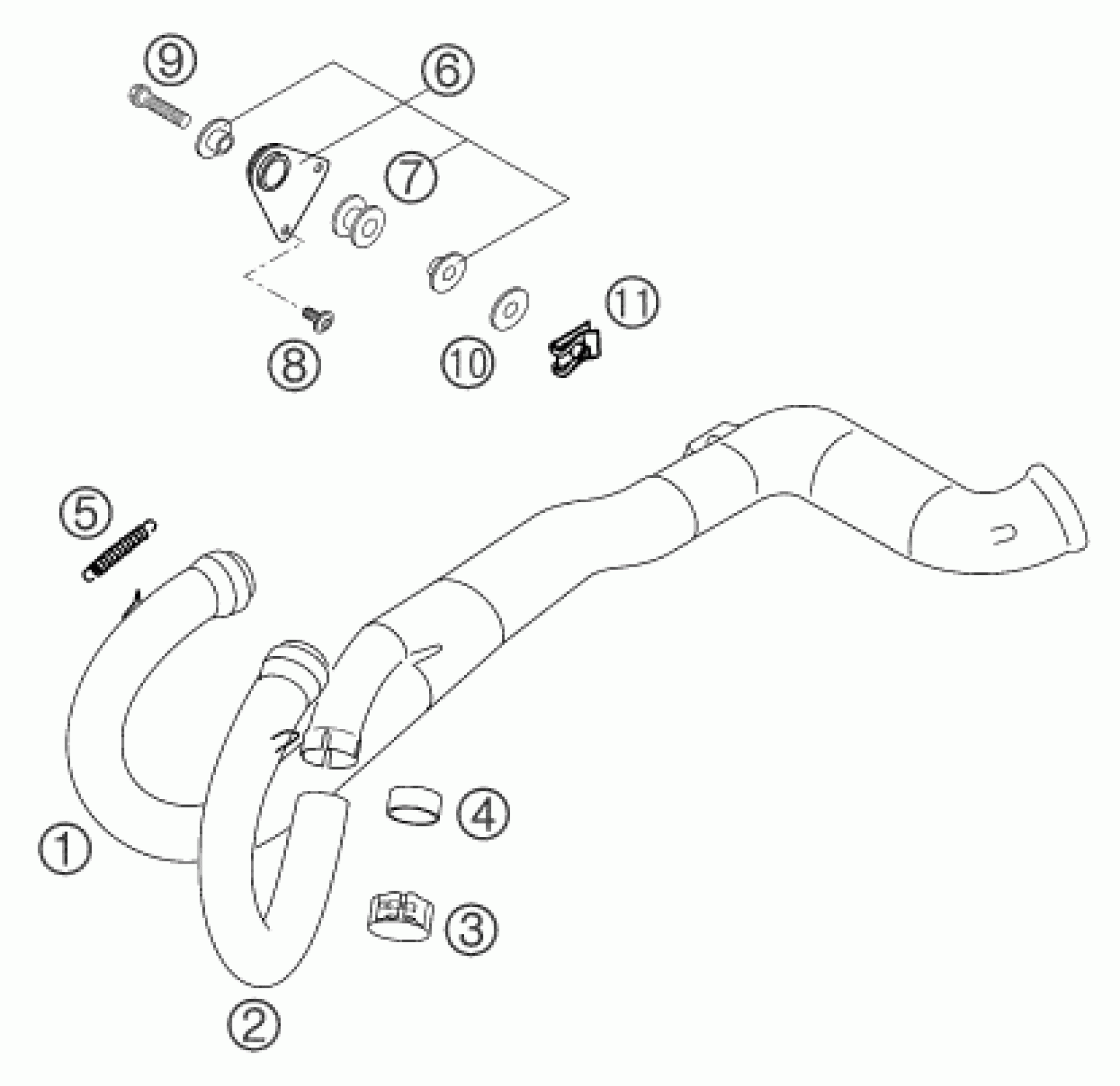

KTM 625 SXC 2004 EXHAUST SYSTEM Diagram

EXHAUST PIPE R/S 03

EXHAUST PIPE L/S 03

COLLECTOR CLAMP D=41MM 03

GRAPHIT RING 34X39X20MM 03

TEN.SPRING L=62MM EY.MOVEABLE

BRACKET-PRE-SIL.CPL SILVER '99

damp. component silicone grey

BHCS ISO 7380 M6X18

HH COLLAR SCREW M 8X35 WS=10

INSOLATE WASHER 8,5X28X3

RANGE CHANGE METAL NUT M8
