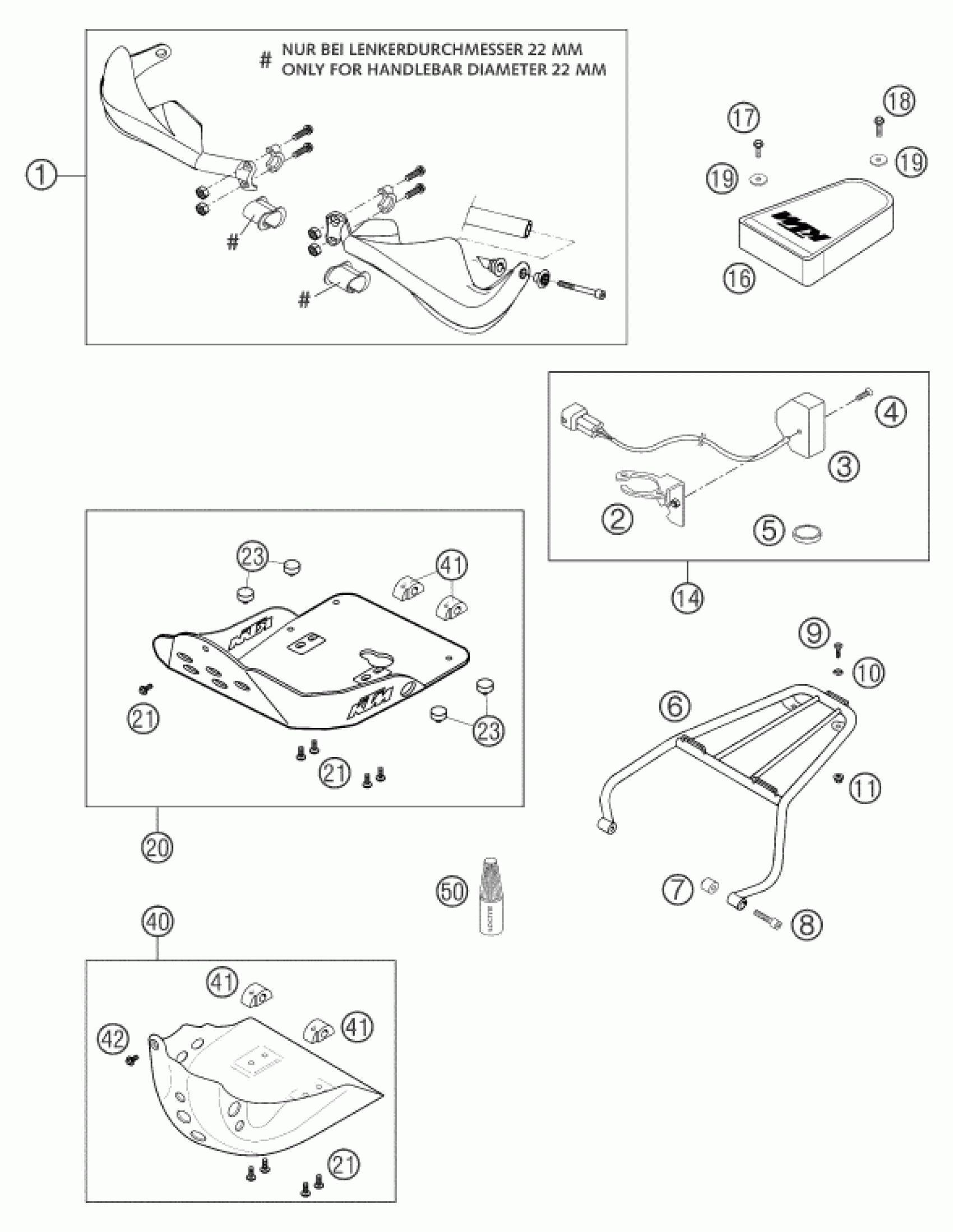

KTM 625 SXC 2004 ACCESSORIES Diagram

#

Description
Price

1

HANDGUARD L/S+R/S CPL.BLCK

6000207910030

$64.59

1

HANDGUARD L/S+R/S CPL.ORANGE

6000207910004

Unavailable

2

* BRACKET TRIPMASTER SWITCH 02

58314069350

Unavailable

3

TRIPMASTER-SWITCH DIGI-SPEEDO.

58314069200

Unavailable

4

FLAT HEAD SCREW DIN0963-M 4X20

0963040203

$1.49

5

BATTERY F. SPEEDOM. M.A.E. 02

58314068000

Unavailable

6

BAGGAGE CARRIER BLACK MIL LC4

5841201020030

Unavailable

7

BUSH FOR BAGGAGE CARRIER 2000

58412011100

$1.73

8

AH SCREW DIN0912-M 6X35

0912060353

$2.05

9

FLAT H.SCREW DIN7991-M6X20

0991060203

$2.05

10

WASHER 6MM

40006006000

$1.49

11

Self locking nut M6 - 10

56509064100

$2.05

14

TRIPMASTER SWITCH CPL. 02

58314069244

Unavailable

16

TOOL BAG BLACK SC '99

58312078000

Unavailable

17

HH COLLAR SCREW M 5X16 WS=8

0015050163

$2.05

18

HH COLLAR SCREW M 5X20 WS=8

0015050203

$2.05

19

WASHER 6,2X22X1,ST30,W.GALV.

51006097000

$1.49

20

SKID PLATE LIMITED CPL. 97

58412099044

Unavailable

21

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

23

RUBBER BUFFER

54308042000

$3.08

40

SKID PLATE PLASTIC

58303005244

Unavailable

41

ENGINE PROTECTOR BRACKET '97

58003012200

$20.47

42

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

50

LOCTITE 243 BLUE 5 ML

6899785

Unavailable
