Description

Price

1

WIRING HARNESS SXC 03

58311375450

Unavailable

2

SUPPORT BRACKET BLACK 2001

59011083000

$20.70

3

BULB 12V 1,2W (W2X4,6D)

49111425000

$2.05

4

Plug-in fuse, big 10A

58011109110

Unavailable

5

Plug-in fuse, big 20A

58011109120

Unavailable

6

START-STOP TIP SWITCH 2001

59011074200

$57.87

6

START-STOP TIP SWITCH CPL

59011074000

$62.54

7

DC HORN L.E.B. 03

50311060100

$32.44

8

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

9

clip nut M6

54603048100

$4.11

10

CONDENSATOR 25V, 10.000 MF

49111435100

$57.59

11

CAPACITOR BRACKET

54511048000

$4.33

12

BRACKET FOR CAPACITOR

54611448000

Unavailable

13

ADAPT. CABLE TPS MUKUNI 03

58411014000

$22.00

14

VOLT.REGULATOR-RECTIFIER 12V

58411034100

$214.48

15

Self locking nut M6 - 10

56509064100

$2.05

16

BATTERY BRACKET 03

58411055200

Unavailable

17

HH COLLAR SCREW M 6X10 WS=8

0015060103

$3.08

18

METAMOLL FOR REARLIGHT 99

58414040051

$1.49

19

H.LIGHT SWITCH CEV EGS AUS.'98

50311070100

$74.14

20

DUMMY PLUG F. SXC USA 03

58311064000

$3.48

21

HEXAGON NUT DIN0934-M 4

0934040003

$1.49

22

ADAPTER FOR FLASHER SWITCH '98

13011070060

$5.23

23

CYL.HEAD SCREW DIN0084-M 4X22A

0084040223

$1.49

24

FLASHER SWITCH CEV '98

50311029000

$51.98

25

FLAT HEAD SCREW DIN7985-M 4X16

0985040163

$2.05

26

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

26

Cable tie 200/4.6mm black

44011076200

Unavailable

26

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

27

FLASHER UNIT 97

44611207200

$49.83

28

WIRING H. NUMBER P. LIGHT 2001

58411047000

$13.00

29

BULB 12V 5W (W2,1X9,5D)

49011435000

$5.23

30

FLASH.WIRINGHARNESS REAR 2001

59011081000

$20.19

31

STARTERCABLE 700 MM '97

58411059100

$23.65

32

BATTERY CABLE L= 200 MM 03

58411059350

$18.78

33

STARTER RELAY WITH HOLD.RUBBER

58411058000

$69.18

34

Self lock. nut DIN985-M6-A2

0985060003

$2.05

35

HOLD. RUBBER FOR STARTRELAY

58411058050

Unavailable

36

BATTERY 12V 8,6AH 03

58411053100

$309.38

37

BATTERY COVER 96

58411053050

$22.65

38

GROUND CABLE D=6MM L=140MM '97

58411097100

$8.97

39

Self locking nut M6 - 10

56509064100

$2.05

40

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

41

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

42

clip nut M6

54603048100

$4.11

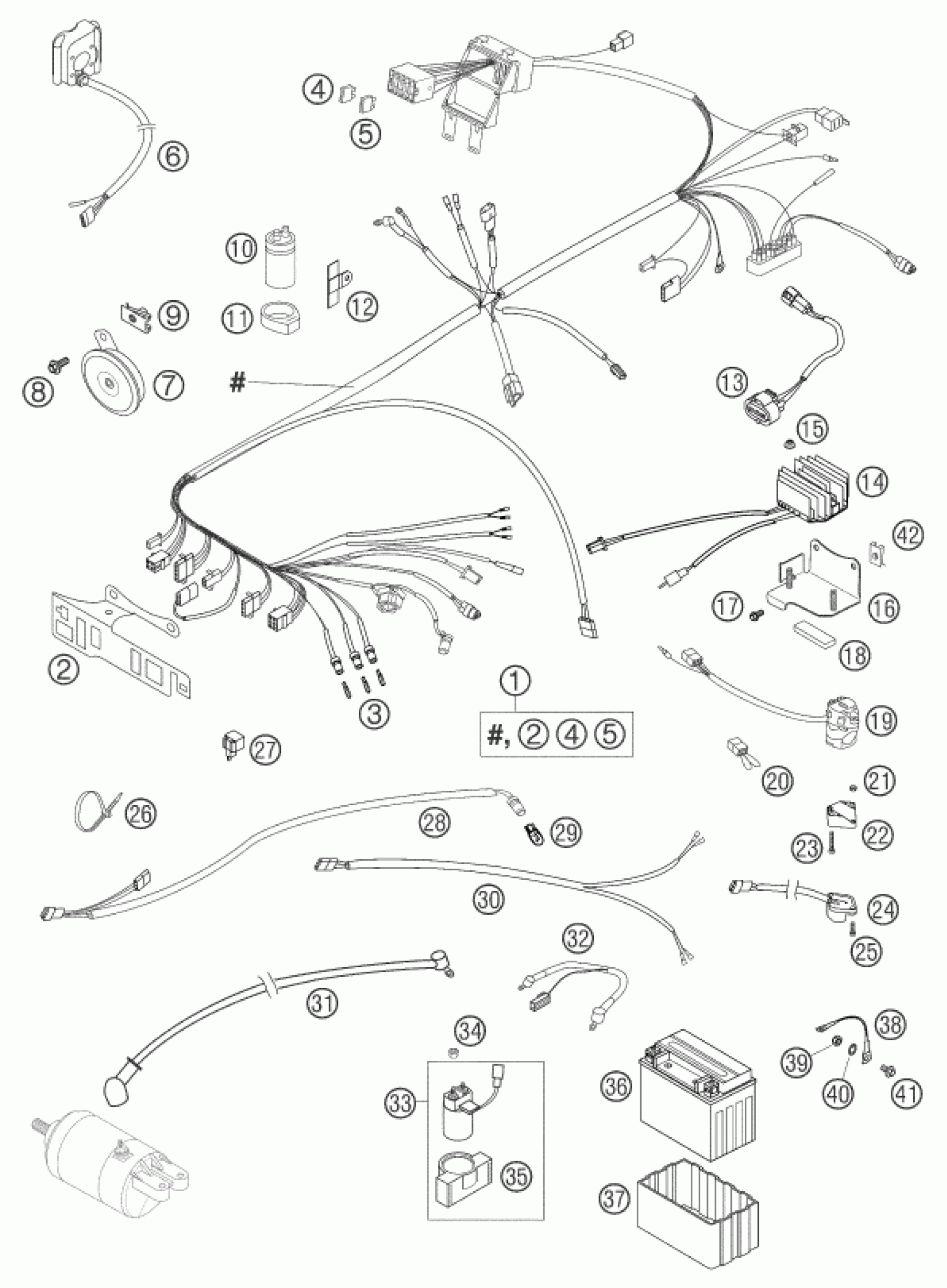

KTM 625 SXC 2003 WIRING HARNESS Diagram

WIRING HARNESS SXC 03

SUPPORT BRACKET BLACK 2001

BULB 12V 1,2W (W2X4,6D)

Plug-in fuse, big 10A

Plug-in fuse, big 20A

START-STOP TIP SWITCH 2001

START-STOP TIP SWITCH CPL

DC HORN L.E.B. 03

HH COLLAR SCREW M 6X15 WS=8

clip nut M6

CONDENSATOR 25V, 10.000 MF

CAPACITOR BRACKET

BRACKET FOR CAPACITOR

ADAPT. CABLE TPS MUKUNI 03

VOLT.REGULATOR-RECTIFIER 12V

Self locking nut M6 - 10

BATTERY BRACKET 03

HH COLLAR SCREW M 6X10 WS=8

METAMOLL FOR REARLIGHT 99

H.LIGHT SWITCH CEV EGS AUS.'98

DUMMY PLUG F. SXC USA 03

HEXAGON NUT DIN0934-M 4

ADAPTER FOR FLASHER SWITCH '98

CYL.HEAD SCREW DIN0084-M 4X22A

FLASHER SWITCH CEV '98

FLAT HEAD SCREW DIN7985-M 4X16

CABLE TIE 100/2,5MM BLACK

Cable tie 200/4.6mm black

CABLE TIE 300/4,8MM BLACK

FLASHER UNIT 97

WIRING H. NUMBER P. LIGHT 2001

BULB 12V 5W (W2,1X9,5D)

FLASH.WIRINGHARNESS REAR 2001

STARTERCABLE 700 MM '97

BATTERY CABLE L= 200 MM 03

STARTER RELAY WITH HOLD.RUBBER

Self lock. nut DIN985-M6-A2

HOLD. RUBBER FOR STARTRELAY

BATTERY 12V 8,6AH 03

BATTERY COVER 96

GROUND CABLE D=6MM L=140MM '97

Self locking nut M6 - 10

CONTACT WASHER M6 VSV-K6

HH COLLAR SCREW M 6X15 WS=8

clip nut M6
