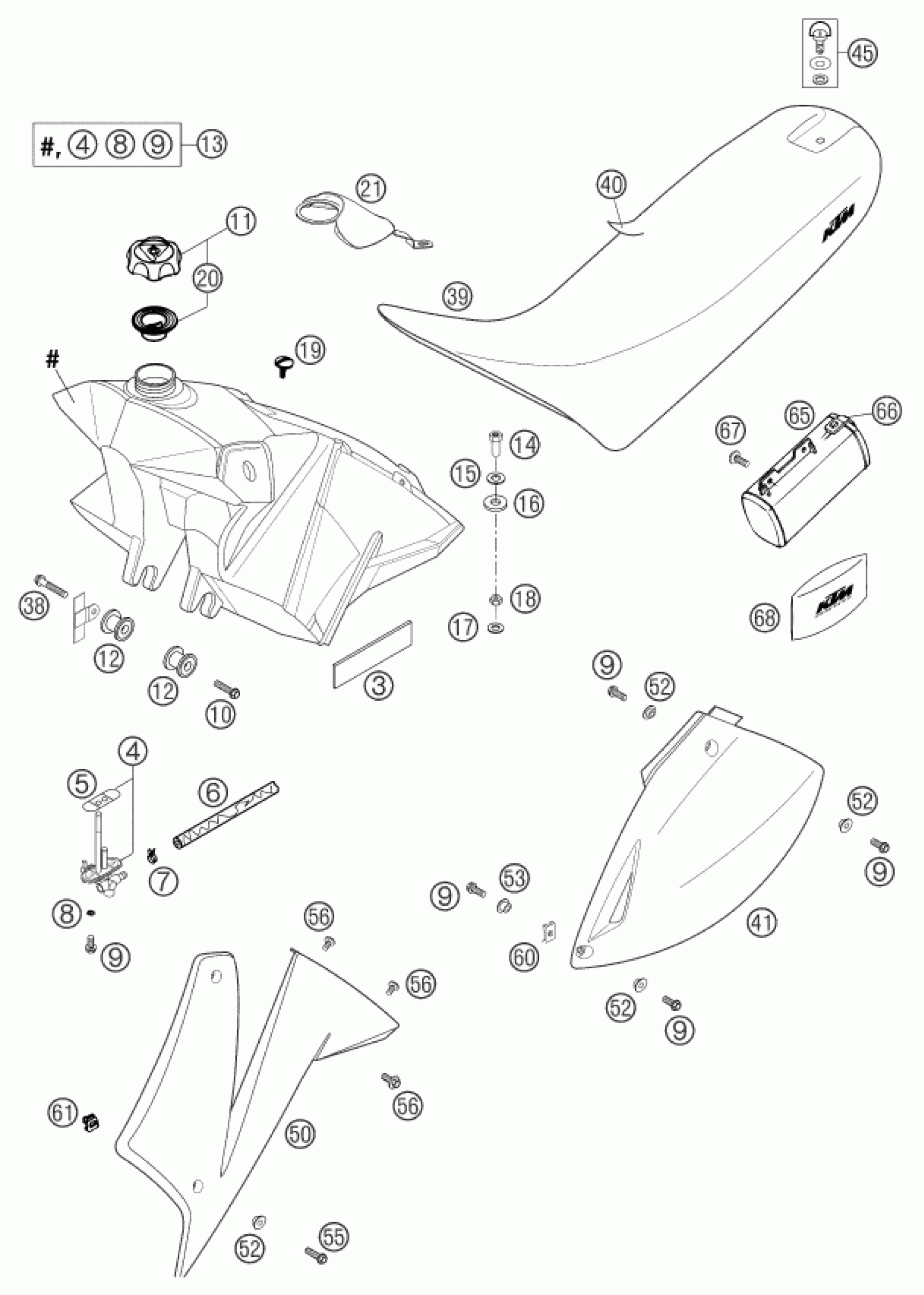

KTM 625 SXC 2003 TANK, SEAT Diagram

#

Description
Price

3

RUBBER STRIP 85X25X3 MM

54601097000

$1.49

4

FUEL COCK MIKUNI CK-84 '96

58307005100

$93.21

5

GASKET FUEL COCK MIKUNI

58307106100

$6.82

6

HOSE ID 7,5 PER METER

54435024001

$23.27

7

CLAMP YDNAC 10128 12MM

58031005000

$3.08

8

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

9

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

10

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

11

FILLER CAP CPL. WITH VALVE

59007008044

$24.58

12

TANK BUSHING CPL. 12 X 34 X 25

58307113250

$10.20

13

FUEL TANK 9 LITER BLACK SC'99

58307013700

$502.84

14

SPECIAL NUT M8

58307014000

$6.26

15

WASHER 10,5 X 21 X 3

31004001100

$2.05

16

INSOLATE WASHER 12X28X3

51005067100

$2.05

17

washer DIN 125 A -8.4

0125080003

$1.49

18

Hexagon nut DIN934 M8

0934080003

$2.05

19

SCREW FOR SEAT M 6X13/8

58407011000

$4.11

20

GASKET FOR FILLER CAP HIGH

59007009000

$8.03

21

GENITALPROTECTOR LC4 2000

58307013750

Unavailable

38

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

39

SEAT BLACK SXC 03

58307340900

$107.64

40

SEAT COVER SXC 2003

58307340950

$32.11

41

SIDE COVER L/S ORANGE LC4'99

5840804100004

$20.98

41

SIDE COVER R/S ORANGE LC4'99

5840804210004

$20.98

45

QUICK RELEASE CPL. 2003

58307039000

$19.91

50

SPOILER L/S ORANGE LC4 '98

5840805000004

Unavailable

50

SPOILER R/S ORANGE LC4 '98

5840805100004

$51.88

52

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

$1.96

53

BUSH FOR SPOILER 6X11X16X7,5

50308053000

$5.70

55

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

56

HH COLLAR SCREW M 6X13 WS=8

0014060133

$3.08

60

clip nut M6

54603048100

$4.11

61

SNAP-NUT HOLDER M6 KP142

50235033300

$4.11

65

TOOL BOX CPL. '92

58012058000

$35.48

66

RUBBER FOR TOOL BOX '92

58012058050

$6.98

67

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

68

ORIGINAL EQUIPMENT TOOL KIT

58329099000

Unavailable
