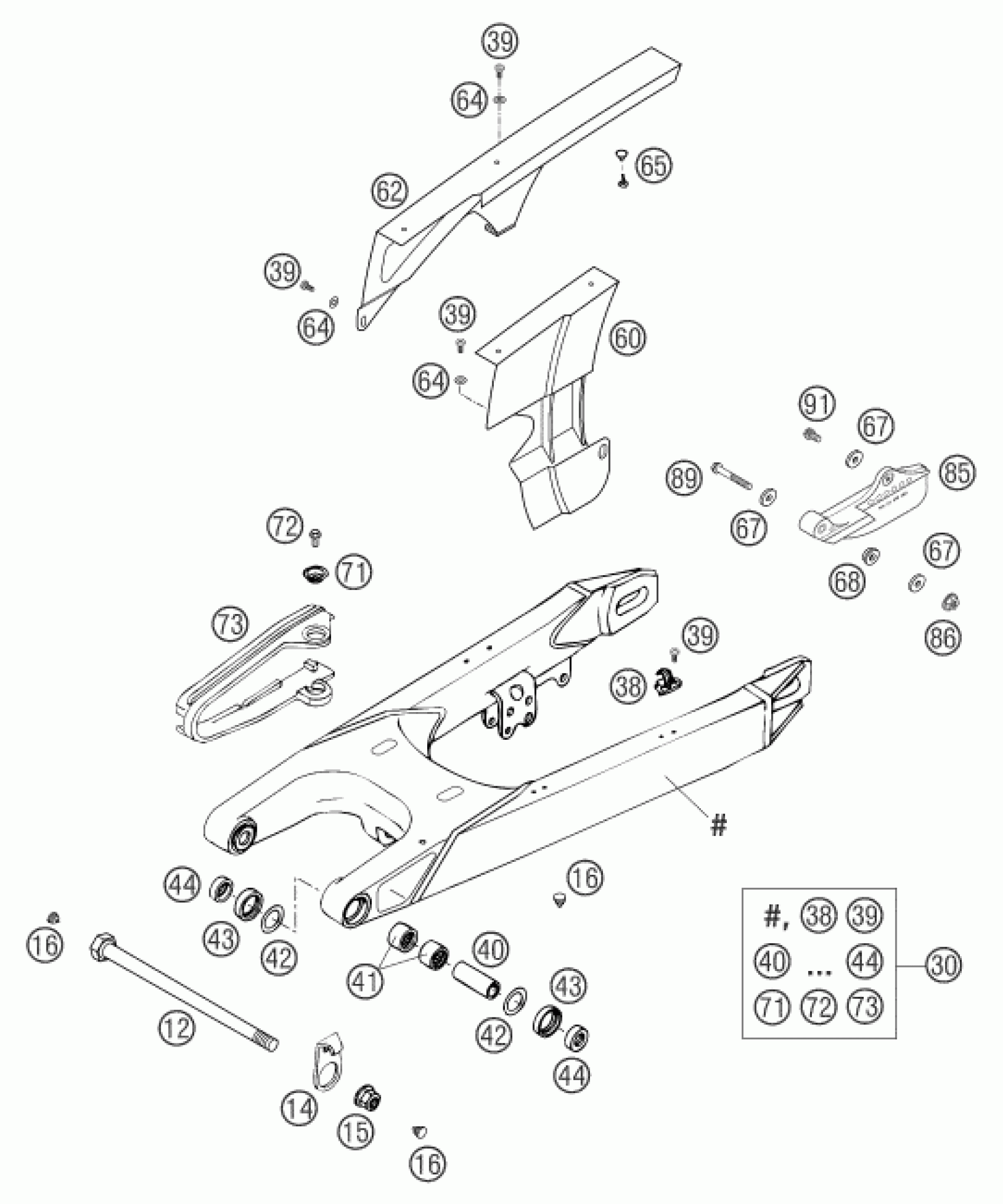

KTM 625 SXC 2003 SWING ARM Diagram

SWINGARM BOLT KPL. L=253

54603014100

$37.03

BRAKE HOSE GUIDE '89

50230211000

$3.98

Self locking nut M14x1.5 WS19

54603015000

$5.51

PLASTIC CAP SFL10

54403135000

Unavailable

SWINGARM CPL. LC4 03

58404030344

$507.37

RETAIN.CLAMP FOR BRAKE HOSE'96

54611076100

$2.05

SPECIAL SCREW M 5,0X10

0010050103

$2.05

BUSHING SLEEVE 15X20X38,75

50203081700

$17.20

NEEDLE BUSH HK2012V

59004031000

$15.51

WASHER 20X32X0,8

59004033100

$1.73

radial shaft seal 25x32x7

0760253270

$6.63

BUCKET F.SHAFTSEALRING 15X25X9

54603090000

$12.43

CHAINGUARD SMALL '96

58307060000

$24.02

CHAINGUARD LARGE 03

58307060250

$5.72

washer DIN 9021 A - 5.3

0021050003

$1.49

HOLLOW RIVET TWO PARTS

20012062055

$3.08

STEEL WASHER 6,2X18X2 DACROMET

50232050003

$1.49

COLLARED BUSH 6,2X10X20X6 03

58404060150

$2.61

BUCKET

72210079000

$3.00

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

CHAIN SLIDING GUARD DUKE'94

58307073000

$26.83

CHAIN GUIDE CPL. REAR LC4 '98

58404070000

$20.41

Self locking nut M6 - 10

56509064100

$2.05

HH COLLAR SCREW M 6X55 WS=8

0015060553

$1.49

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08
