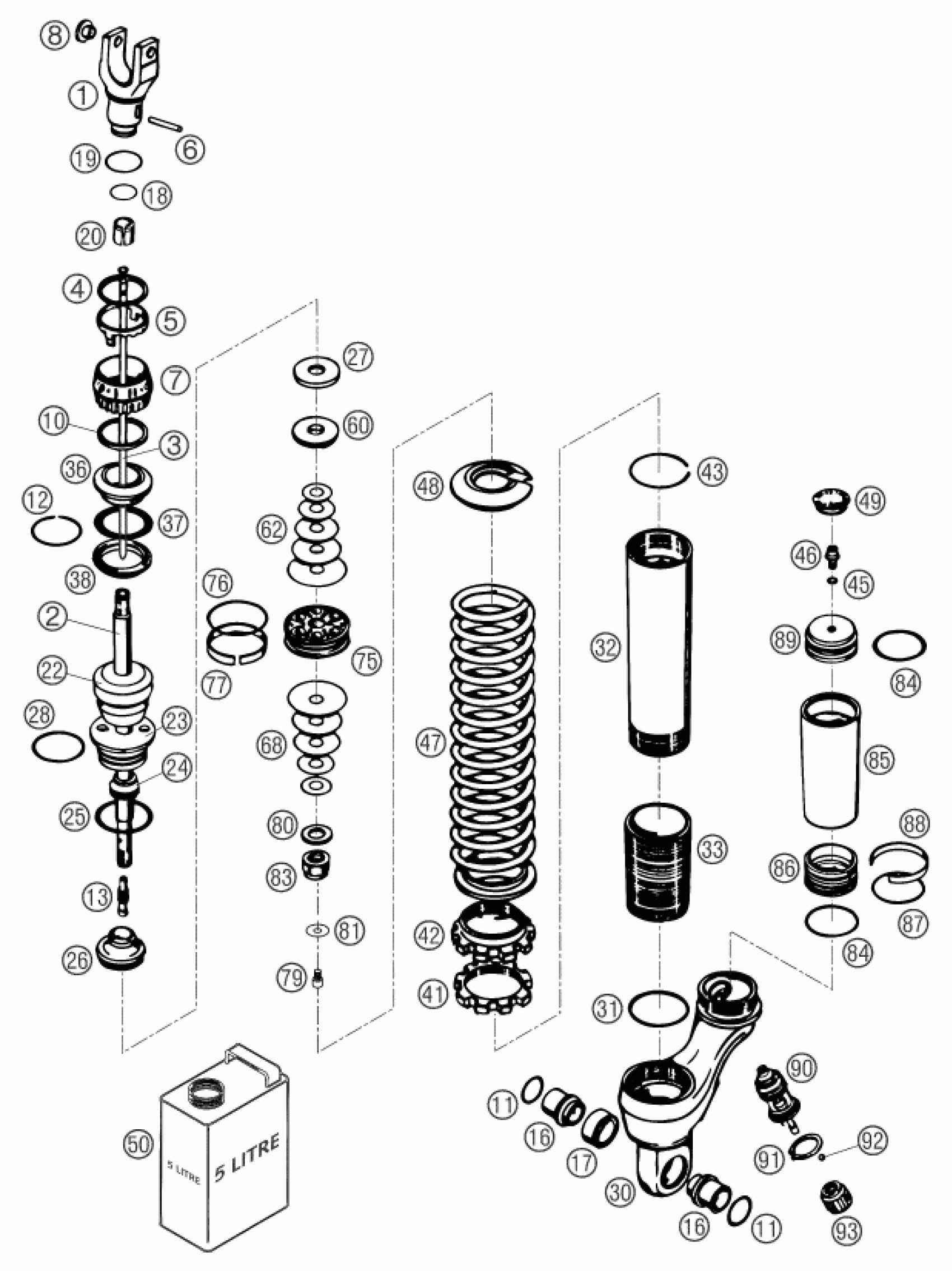

KTM 625 SXC 2003 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

1

SHOCK ABS. BOTTOM-FORK L75B

46811558

$171.26

2

% PISTON ROD D=14 BA, M14X1

46811560

$286.28

3

NEEDLE CPL. D=4 BA, L=183

46811545S

$73.70

4

O-RING 36X0,5

46811222

$2.32

5

WASHER

46811263

$10.12

6

PIN 4X35

46811261

$3.78

7

ADJ. KNOB D=41

46811262

$12.59

8

Bush M10x12/15/13x9,5

46811205

$6.72

10

Shaft seal 29x35x3

46811221

$11.45

11

SEAL KGW

46811050

$8.13

12

CIRCLIP 22X1,2

46811268

$1.60

13

NEEDLE SEAT 5X17,25

46811259

$70.29

16

Bearing bush 10x15,05/22/19x24

46811078

$11.33

17

Ball joint bearing 15x25x13

46811027

$29.35

18

O-ring 21x2 NBR70

46811499

$1.49

19

O-RING NBR 32X1,5

46811500

$1.49

20

* BUSH D=18X14

46811559

Unavailable

22

Rubber pad 13,9x39x43 white

46810365

$48.63

23

SCREW CAP M47,4, H=22,5

46811045

$53.22

24

DUST SEAL 1424

46811044

$19.35

25

O-ring 35x5 NBR70

46810325

$1.49

26

ADAPTER CPL. D=46, H=23 BA

46811540S1

$90.67

27

SPACER 14X35X3

46811003

$9.75

28

O-ring 40x2 NBR70 black

46811042

$2.05

30

SHOCK ABSORB. TOP H-35/79 84

46811481

Unavailable

31

O-ring 48x2 NBR70 siliconized

46810016

$1.49

32

TUBE L=180

46810093

$97.28

33

THREADED BUSH L=60 BLACK

46810346

$58.17

36

BUSHING RING D=55X19

46811561

$22.15

37

O-RING NBR 32X8

46811512

$1.49

38

SUPPORT RING D=55X7,5

46811511

$27.38

41

COUNTERNUT

46810109

$77.12

42

ADJUSTING NUT

46810108

$81.77

43

Round-wire snap ring 49x1,5

46810010

$3.08

45

O-ring 5,28x1,78 NBR70 black

46810893

$1.49

46

HS lock screw M5x6

36120151

$1.86

47

SPRING 63-260 59

91010252

Unavailable

48

SPRING RETAINER D=58,H=23,L=15

46810065

Unavailable

49

Rubber cap do not open 22x5,5

46811208

$3.08

50

SHOCK ABSORBER FLUID 5 LT '03

50180342S1

$149.59

60

REBOUND BUSH PLANE H=6,5

46811216

$15.29

62

SHIM 12X26X0,20

46810491

Unavailable

62

SHIM 12X28X0,20

46810492

Unavailable

62

SHIM 12X30X0,20

46810493

Unavailable

62

SHIM 12X32X0,20

46810494

Unavailable

62

SHIM 12X40X0,20

46810498

Unavailable

62

SHIM 12X40X0,25

46810507

Unavailable

62

SHIM 12X32X0,15

46810521

Unavailable

62

SHIM 12X34X0,15

46810522

Unavailable

62

SHIM 12X36X0,15

46810523

Unavailable

62

SHIM 12X38X0,15

46810524

Unavailable

62

SHIM 12X18X0,15

46810611

Unavailable

62

SHIM 12X24X0,10

46810608

Unavailable

68

SHIM 12X26X0,20

46810491

Unavailable

68

SHIM 12X28X0,20

46810492

Unavailable

68

SHIM 12X30X0,20

46810493

Unavailable

68

SHIM 12X32X0,20

46810494

Unavailable

68

SHIM 12X30X0,15

46810520

Unavailable

68

SHIM 12X32X0,15

46810521

Unavailable

68

SHIM 12X24X0,10

46810608

Unavailable

68

Shim 12X21X0,30

46810641

Unavailable

75

PISTON 6+6XD=7 BA

46811218

Unavailable

76

O-ring 37x,82x1,78 Viton70 gre

46810035

$2.05

77

Piston ring 43,95x45,95x8

46811206

$17.76

79

HH screw ventilation M6 l5,5

46180056

$9.75

80

Washer 12x24x2,5

46811258

$24.77

81

Shim 6x18x0,10

40540403

$2.05

83

Piston rod nut M12x1

46180060

$32.67

84

O-ring 45x2 NBR70 siliconized

46810340

$1.49

85

RESERVOIR SCREW L=123 GREY

46811453

$113.54

86

SEPARATION PISTON D=46

46810322

$35.58

87

O-ring 35x5 Viton70

46811043

$4.64

88

Pistonring 42,5x45,5x3,9

46810324

$32.53

89

RESERVOIR CAP D=46

46811209

Unavailable

90

CC-COMPRE.DAMPING CONTROL CPL.

46810850S6

Unavailable

91

LOCK WASHER JV24

46810334

$1.60

92

Steel ball 4.75mm

46810333

$1.49

93

ADJUSTING KNOB CC-MECH. CPL.

46811272S

Unavailable
